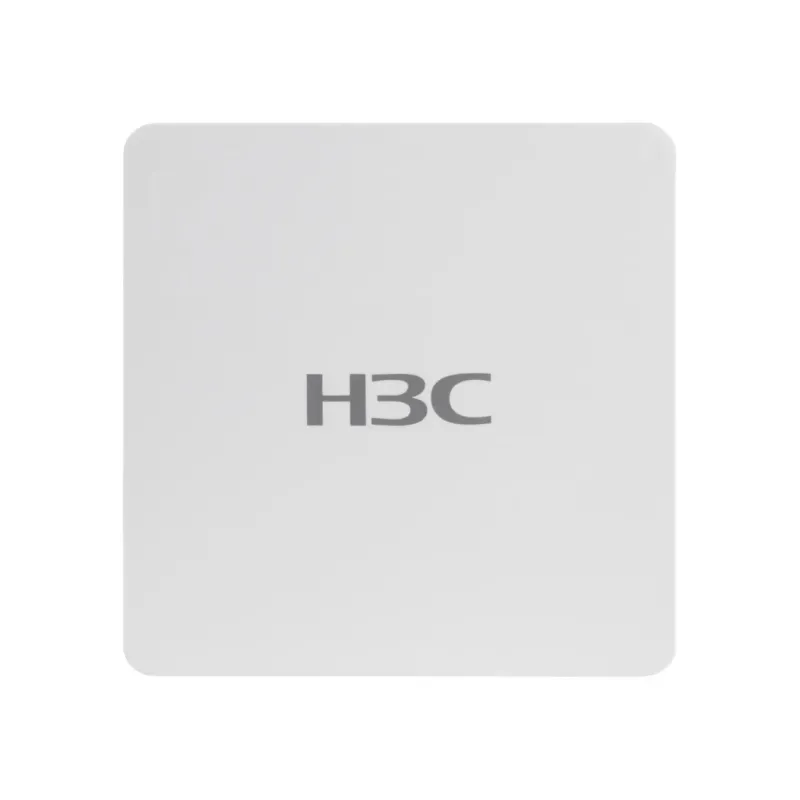

| Product Overview | H3C WA6022H Wall-Plate Access Point WIFI6 2x2 MIMO, 2 Port Lan Gigabit ความเร็วสูงสุด 1.5Gbps รองรับ Roaming 802.11k/v/r, Managed ผ่าน Cloud/Hardware Controller/Standalone |
| รับประกัน | ประกันศูนย์ H3C Thailand 5 ปี |
Name | WA6022H |
Dimensions (excluding antenna connectors and mounting accessories) | 45×86×86 mm (H x W x D) |

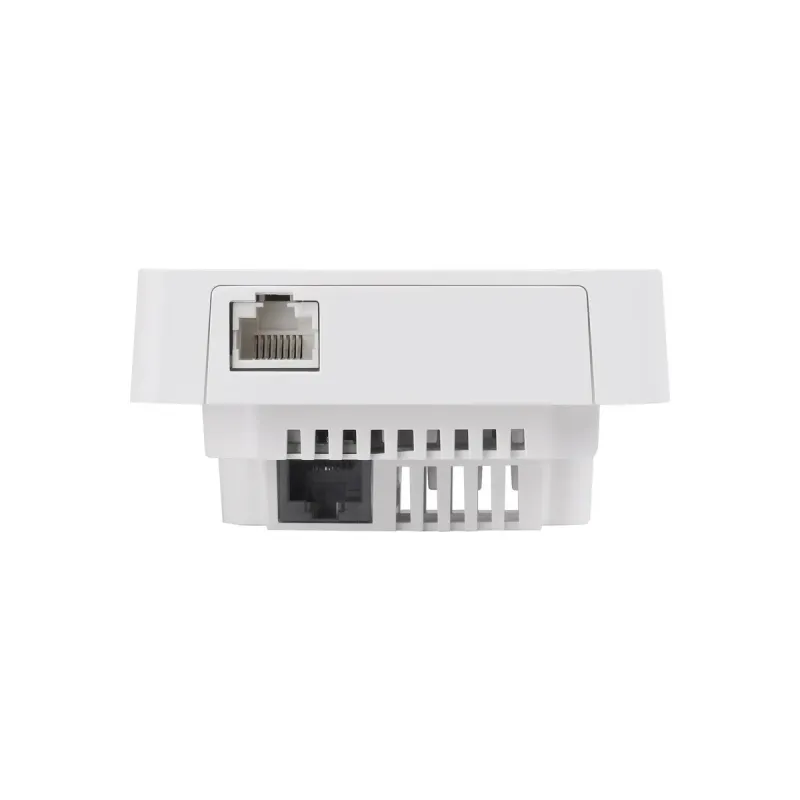

Fixed port | Uplink：10/100/1000M×1，RJ-45
LAN：10/100/1000M×1，RJ-45 |
PoE In | 802.3af |
Local power supply | |
Console port | |

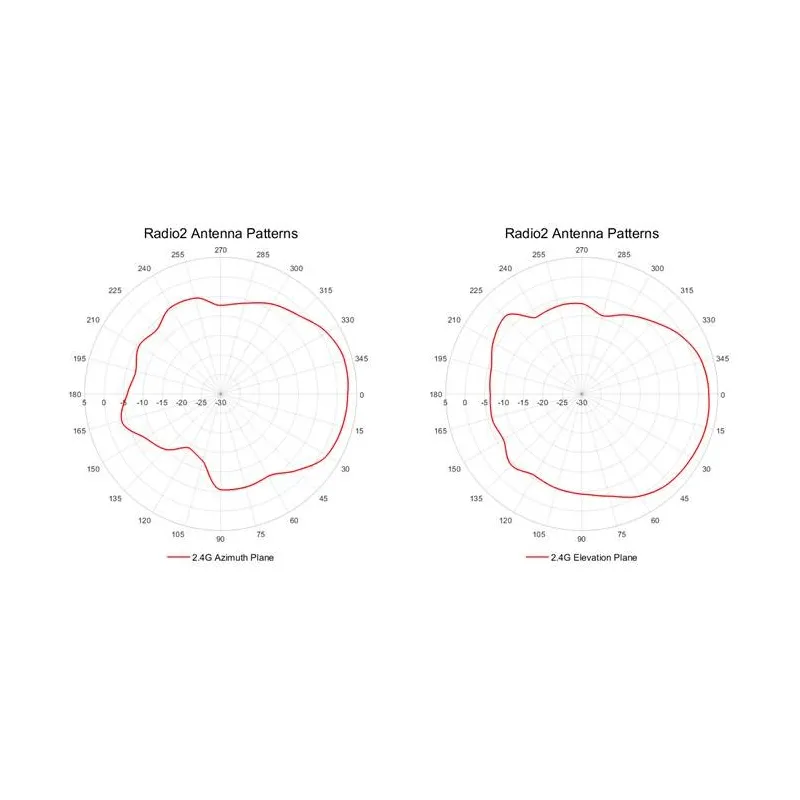

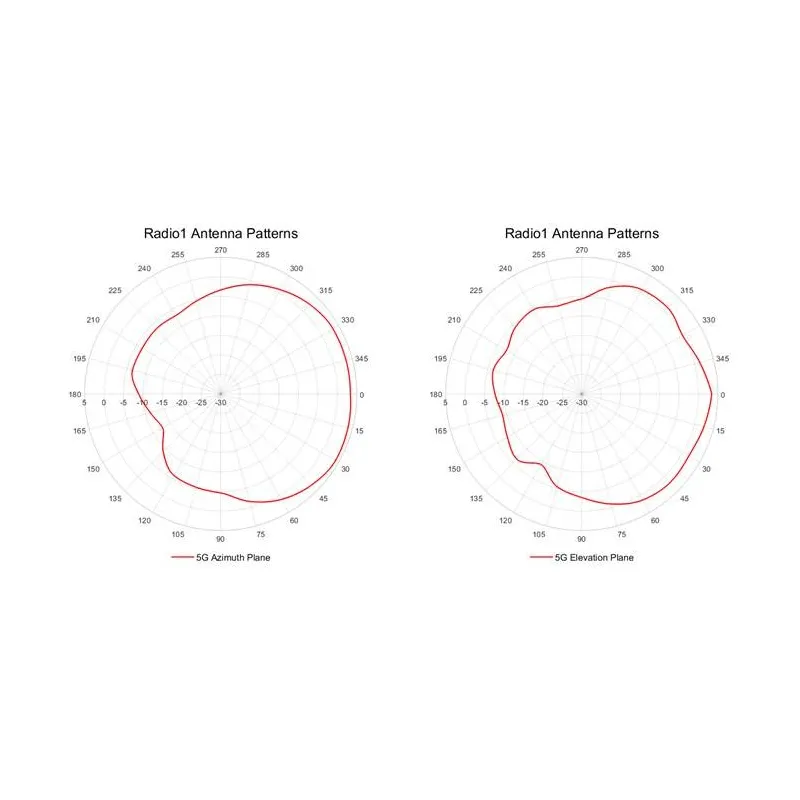

Built-in antenna | Internal Omni-directional antenna
3dBi antenna gain @2.4GHz
4dBi antenna gain @5GHz |
Working frequencies | 802.11ax/ac/n/a: 5.725 GHz - 5.850 GHz; 5.47 GHz - 5.725 GHz; 5.15 GHz - 5.35 GHz
802.11ax/b/g/n: 2.4 GHz - 2.483 GHz |
Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected]/11Mbps
MIMO-OFDM(11n): MCS 0-15
MIMO-OFDM(11ac): MCS 0-9
MIMO-OFDM(11ax): MCS 0-11 |
Modulation mode | 11b: DSS: [email protected]/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
11ac/ac wave2: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
Transmit power (combined power) | 20 dBm (Varies depending on local laws and regulations) |
Adjustable power granularity | 1 dBm |
Power consumption | ≤15W |
Reset/restoration to factory default | Supported |
State LED | Alternating flashing mode, orange/green/blue for different working states, breathing mode |
Operating temperature/storage temperature | -10ºC to +55ºC/-40ºC to +70ºC |
Operating humidity/storage humidity | 5% - 95% (non-condensing) |
Protection grade | IP31 |
Safety compliance | GB 4943, EN/IEC/UL 60950-1, EN/IEC/UL 62368-1 |
EMC | EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 60601-1-2, EN 301 489-1, EN 301 489-17 |
Environment | GB/T 2423, GB/T 13543, GB 4208 |
Radio frequency certification | FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
MTBF | 814581H |
WA6022H Indoor wall-plate AP (5 GHz 2*2 MIMO + 2.4 GHz 2*2 MIMO) |
Operating mode | Fit mode | Controlled by AC |
Cloud mode (Fat mode) | Controlled via Cloudnet or operates independently |
Mode switching | Mode switching via command lines, ACs, Cloudnet, or reset button |
11ax supported | Maximum Wi-Fi 6 (802.11ax) transmission speed | 1500Mbps (1200Mbps + 300Mbps) |
TWT | Supported |
BSS Color | Supported |
OFDMA | Supported |
Only 11ax | Supported |
WLAN basics | Working frequencies | 5 GHz + 2.4 GHz |
A-MPDU | Supported |
A-MSDU | Supported |
Maximum likelihood demodulation (MLD) | Supported |
Maximal ratio combining (MRC) | Supported |
Spatial-Time block coding (STBC) | Supported |
Low-density parity check (LDPC) | Supported |
Recommended number of clients | 100 |
Maximum number of SSID | 8 |
WLAN extended | User number limit | Supported |
STA related | STA offline anomaly check, STA aging, statistics and status query |
Link integrity check | Supported |
Broadcast probe acknowledgment control | Supported |
Prohibition of client access with weak signals | Supported |
Hidden SSID | Supported |
WLAN RRM | Supported |
Wireless bridging | Supported |
11k | Supported |
11v | Supported |
11r | Available in Fit mode |
Security control policies | Encryption | TKIP, CCMP, WPA3 |
Multiple encryption key triggered dynamic unicast/multicast key update |
802.11i | Supported |
Authentication | 802.1X authentication, MAC address authentication, PSK authentication, Portal authentication; Open system/shared key authentication; Enhanced open system authentication Mixed access of WPA, WPA2, WPA3, and Pre-RSNA users |
User isolation | Layer 2 user isolation SSID-based user isolation |
Forwarding security | Packet filtering, MAC address filtering, and broadcast storm suppression |
SSID and VLAN binding | Supported |
WIDS/WIPS | Supported |
MFP (802.11w) | Supported |
802.1X Client | Supported |
AAA | Radius Client | Supported |
Multiple-domain authentication server | Supported |
Backup authentication server | Supported |
Layer 2 and layer 3 features | IP address configuration | Static IP or DHCP assigned IP (option 60) |
Native IPv6 | Supported |
IPv6 Portal | Supported |
IPv6 SAVI | Supported |
ACL | IPv4/IPv6 |
NAT | Available in Cloud mode |
PPPoE Client | Available in Cloud mode |
Local forwarding | Local forwarding based on SSID+VLAN supported in Fit mode |
QoS | 802.11e | WMM |
Priority | Ethernet port based 802.1p identification and marking priority |
Priority mapping for wired and wireless connection |
Strategic QoS mapping | Distinctive QoS policies based on individual SSID/VLAN |
Layer 2 to Layer 4 packet filtering and traffic classification | Supported |
CAR | Supported |
User bandwidth management | Bandwidth allocation per STA All STAs sharing bandwidth with a common SSID Dynamical adjusting of the available bandwidth of the STAs in terms of service needs |
Load balancing | Traffic-based load balancing User-based load balancing Radio-based load balancing for dual-5G devices |
Spectrum guide | Supported |
CAC (Call Admission Control) | Session-based and channel usage-based CAC |
Application recognition | Supports audio and video optimization (SQA/UCC) in Fit mode |
Airtime fairness (ATF) | Supported |
Green features | Green AP mode | Supported |
Dynamic MIMO power saving | Supported |
Enhanced automatic power save delivery (E-APSD) | Supported |
SM Power Save | Supported |
Management and maintenance | Centralized AC management | Fit mode: supports centralized management Cloud mode: supports version upgrade and mode switching |
Cloudnet management | Available in Cloud mode |
Local Web | Available in Cloud mode |
Telnet | Available in Cloud mode |
SSH | Available in Cloud mode |
Debug serial port | Supported |
Smart O&M | Available in Fit/Cloud mode |
