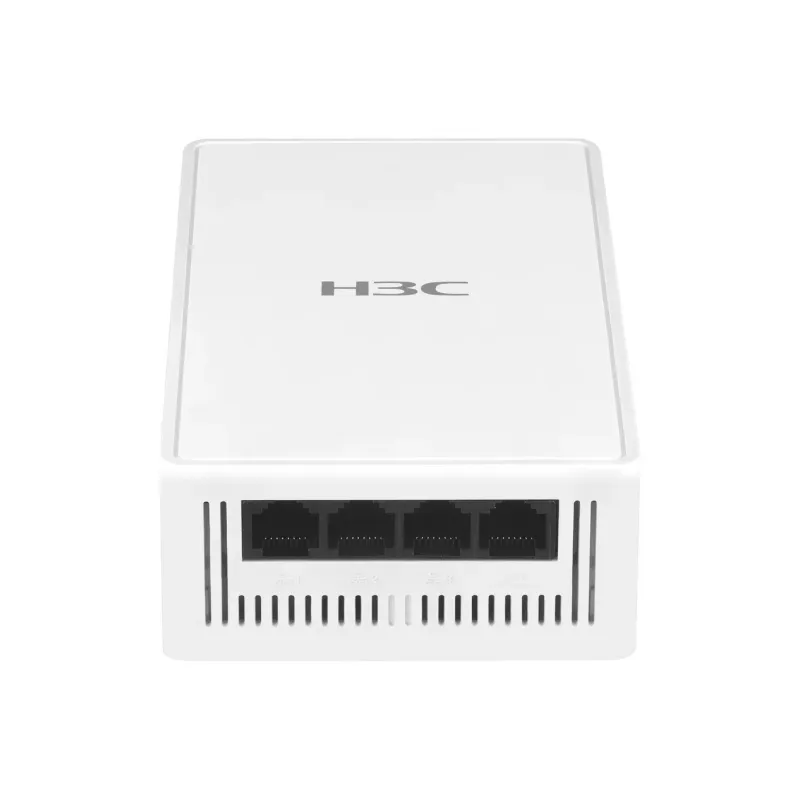

| Product Overview | H3C WA6120H Wall-Plate Access Point WIFI6 2x2 MIMO, 2 Port Lan Gigabit ความเร็วสูงสุด 1.8Gbps รองรับ Roaming 802.11k/v/r, Managed ผ่าน Cloud/Hardware Controller/Standalone |
| รับประกัน | 5 ปี |
| Name | WA6120H |
| Dimensions (excluding antenna connectors and mounting accessories) | 39×160×86 mm (H x W x D) |

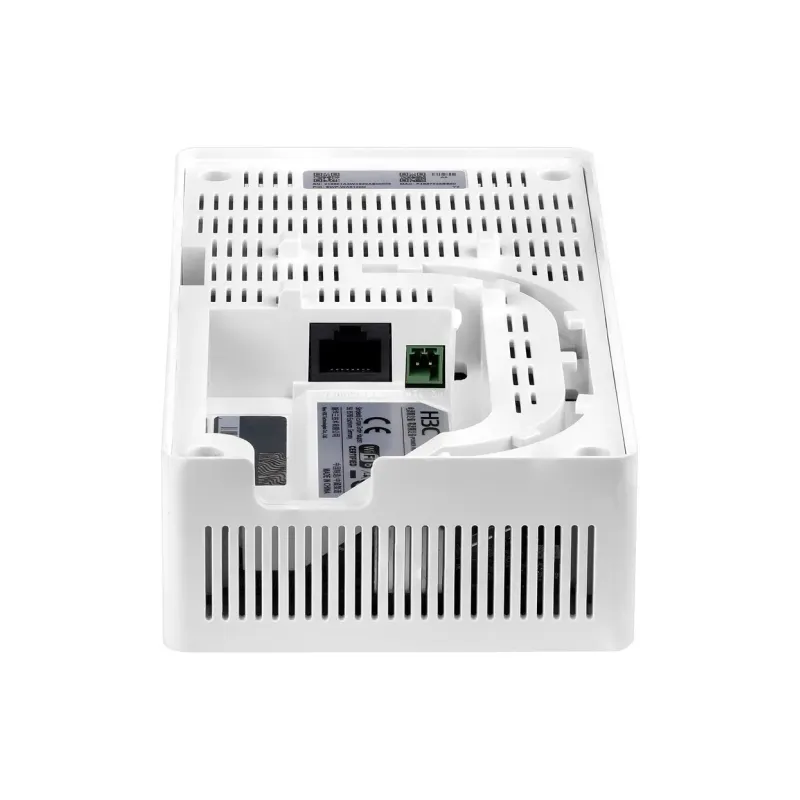

| Fixed port | UpLink：10/100/1000M×1，RJ-45
LAN：10/100/1000M×4，RJ-45 |
| PoE In | 802.3af |
| Local power supply | 54V DC |
| Console port | 1 |
| USB port | 1 |

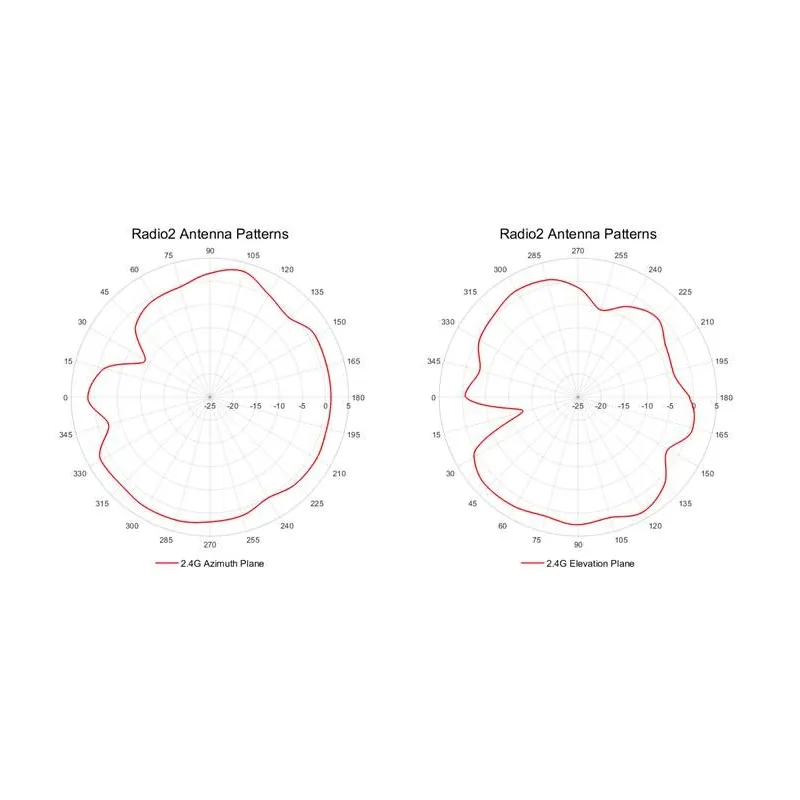

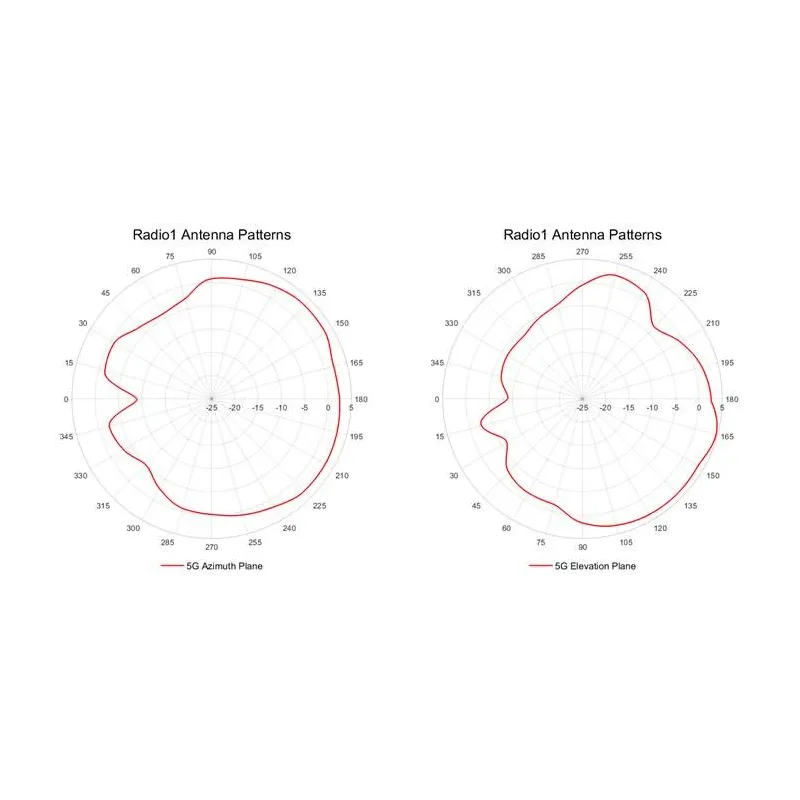

| Built-in antenna | Internal Omni-directional antenna
3dBi antenna gain @2.4GHz
4dBi antenna gain @5GHz |
| Working frequencies | 802.11ax/ac/n/a: 5.725 GHz - 5.850 GHz; 5.47 GHz - 5.725 GHz; 5.15 GHz - 5.35 GHz
802.11ax/b/g/n: 2.4 GHz - 2.483 GHz |
| Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
MIMO-OFDM(11n): MCS 0-15
MIMO-OFDM(11ac): MCS 0-9
MIMO-OFDM(11ax): MCS 0-11 |
| Modulation mode | 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
11ac/ac wave2: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Transmit power (combined power) | 20 dBm (Varies depending on local laws and regulations) |
| Adjustable power granularity | 1 dBm |
| Power consumption | ≤15W |
| Reset/restoration to factory default | Supported |
| State LED | Alternating flashing mode, orange/green/blue for different working states, breathing mode |
| Operating temperature/storage temperature | -10ºC to +55ºC/-40ºC to +70ºC |
| Operating humidity/storage humidity | 5% - 95% (non-condensing) |
| Protection grade | IP41 |
| Safety compliance | GB 4943, EN/IEC/UL 60950-1, EN/IEC/UL 62368-1 |
| EMC | EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 60601-1-2, EN 301 489-1, EN 301 489-17 |
| Environment | GB/T 2423, GB/T 13543, GB 4208 |
| Radio frequency certification | FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
| MTBF | 2230121H |
| WA6120H Indoor wall-plate AP (5 GHz 2*2 MIMO + 2.4 GHz 2*2 MIMO) |
| Operating mode | Fit mode | Controlled by AC |
| Cloud mode (Fat mode) | Controlled via Cloudnet or operates independently |
| Mode switching | Mode switching via command lines, ACs, Cloudnet, or reset button |
| 11ax supported | Maximum Wi-Fi 6 (802.11ax) transmission speed | 1.2 Gbps + 0.575 Gbps |
| TWT | Supported |
| BSS Color | Supported |
| OFDMA | Supported |
| Only 11ax | Supported |
| WLAN basics | Working frequencies | 5 GHz + 2.4 GHz |
| A-MPDU | Supported |
| A-MSDU | Supported |
| Maximum likelihood demodulation (MLD) | Supported |
| Maximal ratio combining (MRC) | Supported |
| Spatial-Time block coding (STBC) | Supported |
| Low-density parity check (LDPC) | Supported |
| Recommended number of clients | 100 |
| Maximum number of SSID | 8 |
| WLAN extended | User number limit | Supported |
| STA related | STA offline anomaly check, STA aging, statistics and status query |
| Link integrity check | Supported |
| Broadcast probe acknowledgment control | Supported |
| Prohibition of client access with weak signals | Supported |
| Hidden SSID | Supported |
| WLAN RRM | Supported |
| Wireless bridging | Supported |
| 11k | Supported |
| 11v | Supported |
| 11r | Available in Fit mode |
| Security control policies | Encryption | TKIP, CCMP, WPA3 |
| Multiple encryption key triggered dynamic unicast/multicast key update |
| 802.11i | Supported |
| Authentication | 802.1X authentication, MAC address authentication, PSK authentication, Portal authentication;
Open system/shared key authentication;
Enhanced open system authentication
Mixed access of WPA, WPA2, WPA3, and Pre-RSNA users |
| User isolation | Layer 2 user isolation
SSID-based user isolation |
| Forwarding security | Packet filtering, MAC address filtering, and broadcast storm suppression |
| SSID and VLAN binding | Supported |
| WIDS/WIPS | Supported |
| MFP (802.11w) | Supported |
| 802.1X Client | Supported |
| AAA | Radius Client | Supported |
| Multiple-domain authentication server | Supported |
| Backup authentication server | Supported |
| Layer 2 and layer 3 features | IP address configuration | Static IP or DHCP assigned IP (option 60) |
| Native IPv6 | Supported |
| IPv6 Portal | Supported |
| IPv6 SAVI | Supported |
| ACL | IPv4/IPv6 |
| NAT | Available in Cloud mode |
| PPPoE Client | Available in Cloud mode |
| Local forwarding | Local forwarding based on SSID+VLAN supported in Fit mode |
| QoS | 802.11e | WMM |
| Priority | Ethernet port based 802.1p identification and marking priority |
| Priority mapping for wired and wireless connection |
| Strategic QoS mapping | Distinctive QoS policies based on individual SSID/VLAN |
| Layer 2 to Layer 4 packet filtering and traffic classification | Supported |
| CAR | Supported |
| User bandwidth management | Bandwidth allocation per STA
All STAs sharing bandwidth with a common SSID
Dynamical adjusting of the available bandwidth of the STAs in terms of service needs |
| Load balancing | Traffic-based load balancing
User-based load balancing
Radio-based load balancing for dual-5G devices |
| Spectrum guide | Supported |
| CAC (Call Admission Control) | Session-based and channel usage-based CAC |
| Application recognition | Supports audio and video optimization (SQA/UCC) in Fit mode |
| Airtime fairness (ATF) | Supported |
| Green features | Green AP mode | Supported |
| Dynamic MIMO power saving | Supported |
| Enhanced automatic power save delivery (E-APSD) | Supported |
| SM Power Save | Supported |
| Management and maintenance | Centralized AC management | Fit mode: supports centralized management
Cloud mode: supports version upgrade and mode switching |
| Cloudnet management | Available in Cloud mode |
| Local Web | Available in Cloud mode |
| Telnet | Available in Cloud mode |
| SSH | Available in Cloud mode |
| Debug serial port | Supported |
| Smart O&M | Available in Fit/Cloud mode |
