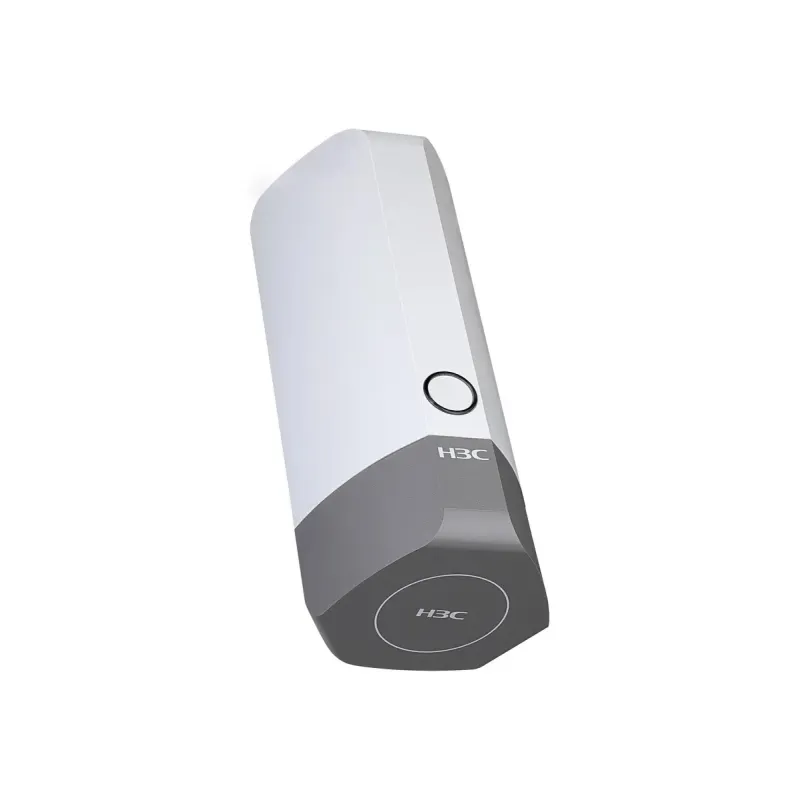

WA6120X H3C Outdoor Access Point WIFI6 2x2 MIMO 1.75Gbps, IP67

H3C WA6120X Outdoor Access Point WIFI6 2x2 MIMO ความเร็วสูงสุด 1.75Gbps รองรับ Roaming 802.11k/v/r, กันน้ำกันฝุ่นมาตรฐาน IP67, Managed ผ่าน Cloud/Hardware Controller/Standalone

Name

WA6120X

Dimensions (excluding antenna connectors and mounting accessories)

250 × 101 × 110 mm

Fixed port

2 × 10/100/1000M electrical port

PoE In

PoE injector

Local power supply

-

Console port

-

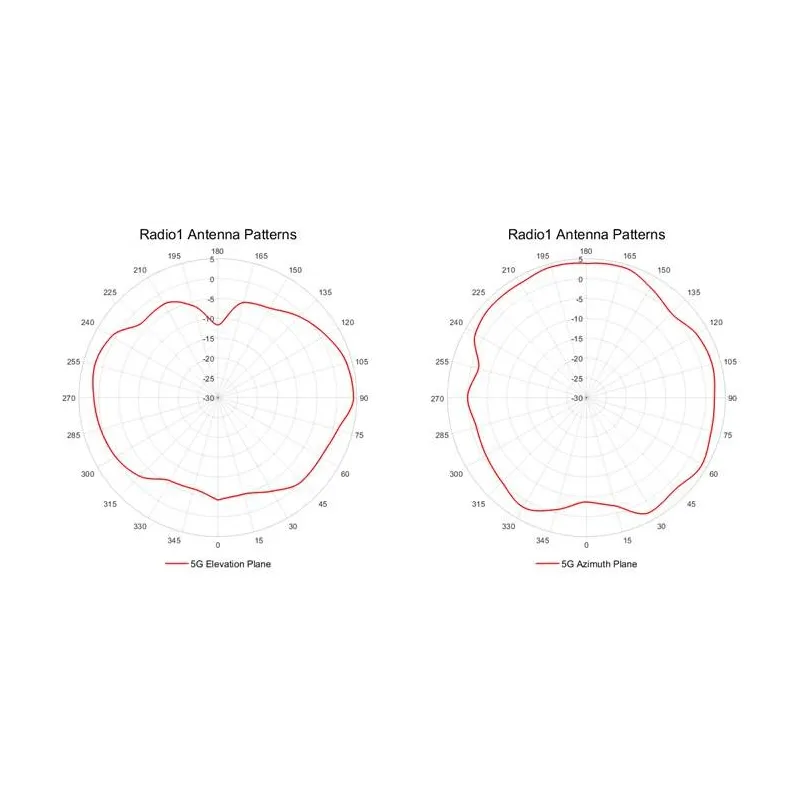

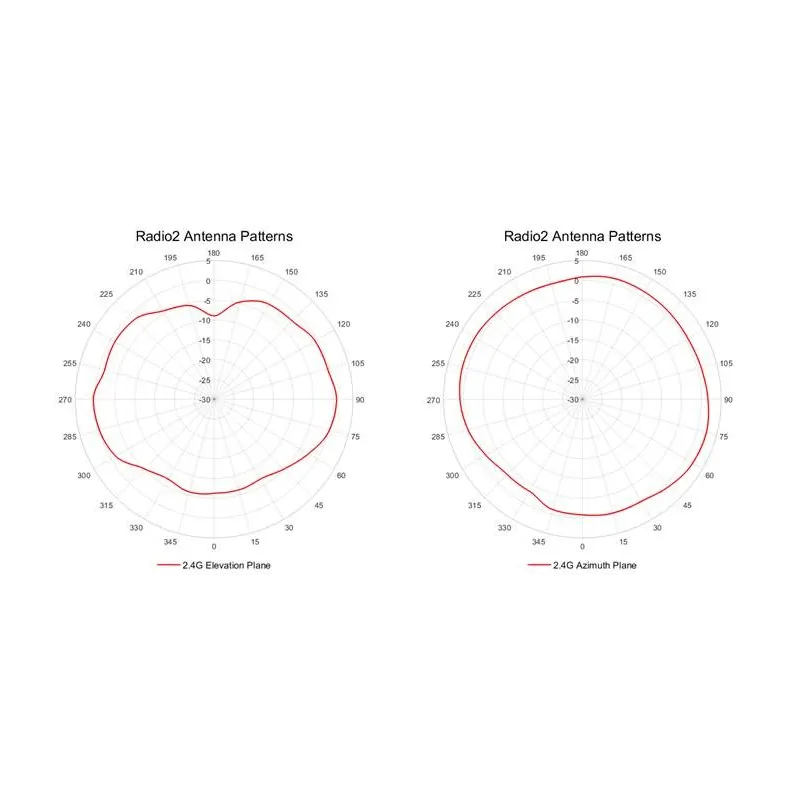

Built-in antenna

Internal Omni-directional antenna
3dBi antenna gain @2.4GHz
5dBi antenna gain @5GHz

Working frequencies

802.11ax/ac/n/a: 5.725 GHz - 5.850 GHz; 5.47 GHz - 5.725 GHz; 5.15 GHz - 5.35 GHz
802.11ax/b/g/n: 2.4 GHz - 2.483 GHz

Modulation technology

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected]/11Mbps
MIMO-OFDM(11n): MCS 0-15
MIMO-OFDM(11ac): MCS 0-9
MIMO-OFDM(11ax): MCS 0-11

Modulation mode

11b: DSS: [email protected]/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
11ac/ac wave2: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Transmit power (combined power)

23 dBm (Varies depending on local laws and regulations)

Adjustable power granularity

1 dBm

Power consumption

≤13W

Reset/restoration to factory default

Supported

State LED

Alternating flashing mode, orange/green/blue for different working states, breathing mode

Operating temperature/storage temperature

-10ºC to +55ºC/-40ºC to +70ºC

Operating humidity/storage humidity

5% - 95% (non-condensing)

Protection grade

IP41

Safety compliance

GB 4943, EN/IEC/UL 60950-1, EN/IEC/UL 62368-1

EMC

EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 60601-1-2, EN 301 489-1, EN 301 489-17

Environment

GB/T 2423, GB/T 13543, GB 4208

Radio frequency certification

FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC

MTBF

2266650H

WA6120X Outoor AP Outdoor AP (5 GHz 2*2 MIMO + 2.4 GHz 2*2 MIMO)

Operating mode

Fit mode

Controlled by AC

Cloud mode (Fat mode)

Controlled via Cloudnet or operates independently

Mode switching

Mode switching via command lines, ACs, Cloudnet, or reset button

11ax supported

Maximum Wi-Fi 6 (802.11ax) transmission speed

1.2 Gbps + 0.575 Gbps

TWT

Supported

BSS Color

Supported

OFDMA

Supported

Only 11ax

Supported

WLAN basics

Working frequencies

5 GHz + 2.4 GHz

A-MPDU

Supported

A-MSDU

Supported

Maximum likelihood demodulation (MLD)

Supported

Maximal ratio combining (MRC)

Supported

Spatial-Time block coding (STBC)

Supported

Low-density parity check (LDPC)

Supported

Recommended number of clients

100

Maximum number of SSID

8

WLAN extended

User number limit

Supported

STA related

STA offline anomaly check, STA aging, statistics and status query

Link integrity check

Supported

Broadcast probe acknowledgment control

Supported

Prohibition of client access with weak signals

Supported

Hidden SSID

Supported

WLAN RRM

Supported

Wireless bridging

Supported

11k

Supported

11v

Supported

11r

Available in Fit mode

Security control policies

Encryption

TKIP, CCMP, WPA3

Multiple encryption key triggered dynamic unicast/multicast key update

802.11i

Supported

Authentication

802.1X authentication, MAC address authentication, PSK authentication, Portal authentication;

Open system/shared key authentication;

Enhanced open system authentication

Mixed access of WPA, WPA2, WPA3, and Pre-RSNA users

User isolation

Layer 2 user isolation

SSID-based user isolation

Forwarding security

Packet filtering, MAC address filtering, and broadcast storm suppression

SSID and VLAN binding

Supported

WIDS/WIPS

Supported

MFP (802.11w)

Supported

802.1X Client

Supported

AAA

Radius Client

Supported

Multiple-domain authentication server

Supported

Backup authentication server

Supported

Layer 2 and layer 3 features

IP address configuration

Static IP or DHCP assigned IP (option 60)

Native IPv6

Supported

IPv6 Portal

Supported

IPv6 SAVI

Supported

ACL

IPv4/IPv6

NAT

Available in Cloud mode

PPPoE Client

Available in Cloud mode

Local forwarding

Local forwarding based on SSID+VLAN supported in Fit mode

QoS

802.11e

WMM

Priority

Ethernet port based 802.1p identification and marking priority

Priority mapping for wired and wireless connection

Strategic QoS mapping

Distinctive QoS policies based on individual SSID/VLAN

Layer 2 to Layer 4 packet filtering and traffic classification

Supported

CAR

Supported

User bandwidth management

Bandwidth allocation per STA

All STAs sharing bandwidth with a common SSID

Dynamical adjusting of the available bandwidth of the STAs in terms of service needs

Load balancing

Traffic-based load balancing

User-based load balancing

Radio-based load balancing for dual-5G devices

Spectrum guide

Supported

CAC (Call Admission Control)

Session-based and channel usage-based CAC

Application recognition

Supports audio and video optimization (SQA/UCC) in Fit mode

Airtime fairness (ATF)

Supported

Green features

Green AP mode

Supported

Dynamic MIMO power saving

Supported

Enhanced automatic power save delivery (E-APSD)

Supported

SM Power Save

Supported

Management and maintenance

Centralized AC management

Fit mode: supports centralized management

Cloud mode: supports version upgrade and mode switching

Cloudnet management

Available in Cloud mode

Local Web

Available in Cloud mode

Telnet

Available in Cloud mode

SSH

Available in Cloud mode

Debug serial port

Supported

Smart O&M

Available in Fit/Cloud mode
