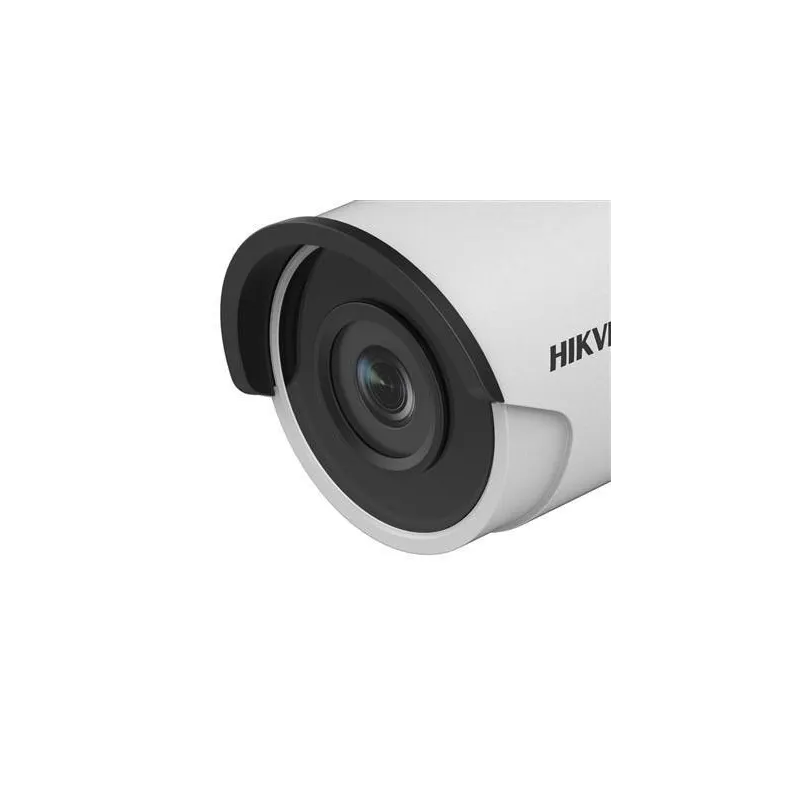

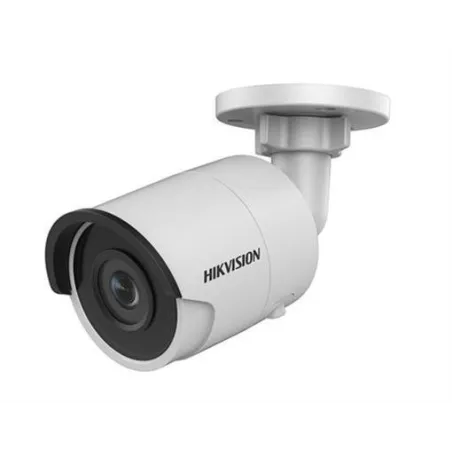

Overview | Hikvision DS-2CD2025FWD-I Bullet IP Camera ความละเอียด 2MP, IR 30 เมตร, H.265+, กันน้ำกันฝุ่น IP67,รองรับ SD-Card สูงสุด 128GB, รองรับ POE |
Image Sensor: | 1/2.8" Progressive Scan CMOS |
Signal System: | PAL/NTSC |
Min. Illumination: | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR |
Shutter time: | 1/3 s to 1/100,000 s |
Slow shutter: | Support |
Lens: | 2.8 mm, horizontal field of view: 108°
4 mm, horizontal field of view: 86.4°
6 mm, horizontal field of view: 52°
8 mm, horizontal field of view: 41°
12 mm, horizontal field of view: 25° |
Lens Mount: | M12 |
Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Day& Night: | IR cut filter with auto switch |
Wide Dynamic Range: | 120 dB |
Digital noise reduction: | 3D DNR |
Focus: | Fixed |
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
Video bit rate: | 32Kbps~16Mbps |
Triple Streams: | Yes |
Max. Image Resolution: | 1920 x 1080 |
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 352 × 288)
60Hz: 30fps (640 × 480, 640 × 360, 352 × 240) |
Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720) |
Third Stream: | 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240) |
Image Enhancement: | BLC/3D DNR/ROI/HLC |
Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
ROI: | Support 1 fixed region for main stream and sub stream separately |
Day/Night Switch: | Day/Night/Auto/Schedule |
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering |
System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
Line Crossing Detection: | Cross a pre-defined virtual line |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. |
Exception Detections: | Scene change detection |
Detection/Recognition: | Face Detection |
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) |
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
Power Consumption: | 12 VDC ± 25%, 5W
PoE(802.3af, class 3), 6.5W |
Weather Proof: | IP67 |
IR Range: | Up to 30m |
Dimensions: | Camera: Φ70 × 155.03 mm (Φ2.76″ × 6.1″)
Package: 216 × 121 × 118 mm (8.5″ × 4.76″ × 4.65″) |
Weight: | Camera: 410 g (0.9 lb.) |
รับประกัน | 3 ปี |
| |
