Overview
|

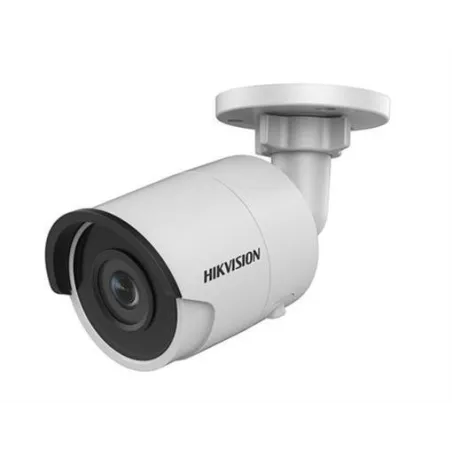

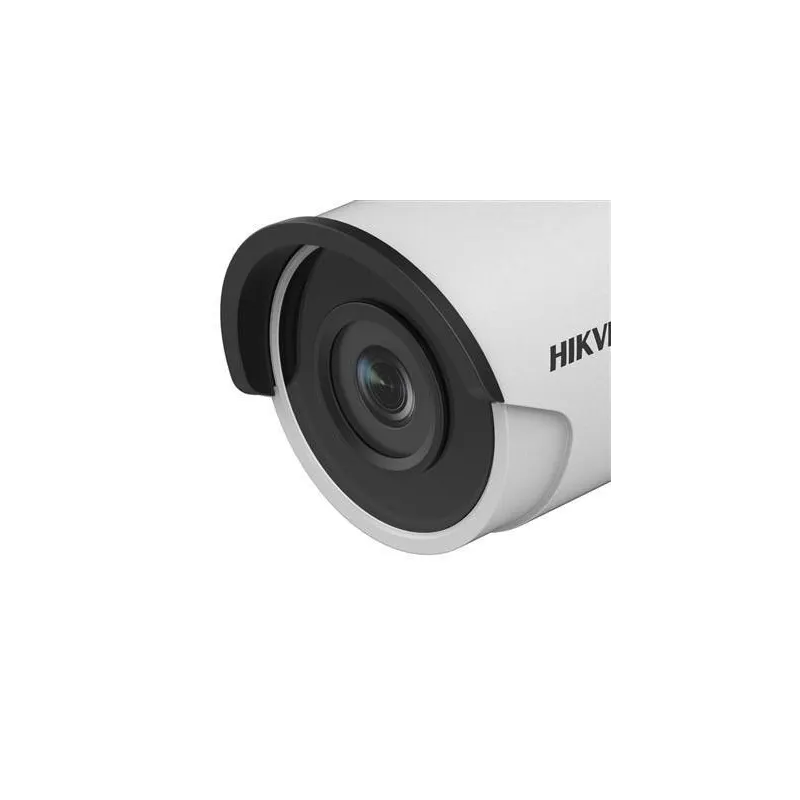

Hikvision DS-2CD2045FWD-I Bullet IP Camera ความละเอียด 4MP, IR 30 เมตร, H.265+, กันน้ำกันฝุ่น IP67,รองรับ SD-Card สูงสุด 128GB, รองรับ POE
|
| Image Sensor: |
1/2.5" Progressive Scan CMOS |
| Signal System: |
PAL/NTSC |
| Min. Illumination: |
Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR |
| Shutter time: |
1/3 s to 1/100,000 s |
| Slow shutter: |
Support |
| Lens: |
2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°
4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°
8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°
12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29° |
| Lens Mount: |
M12 |
| Adjustment Range: |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Day& Night: |
IR Cut Filter |
| Wide Dynamic Range: |
120 dB |
| Digital noise reduction: |
3D DNR |
| Focus: |
Fixed |
| Video Compression: |
H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 code profile: |
Main Profile/High Profile |
| Video bit rate: |
32Kbps~16Mbps |
| Triple Streams: |
Yes |
| Max. Image Resolution: |
2688 × 1520 |
| Sub Stream: |
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
| Frame Rate: |
50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) |
| Third Stream: |
50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement: |
BLC/3D DNR/ROI/HLC |
| Image Settings: |
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| ROI: |
Support 1 fixed region for main stream and sub stream separately |
| Day/Night Switch: |
Day/Night/Auto/Schedule |
| Network Storage: |
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger: |
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols: |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: |
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering |
| System Compatibility: |
ONVIF (Profile S, Profile G), ISAPI |
| Communication Interface: |
1 RJ45 10M / 100M Ethernet interface |
| On-board storage: |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: |
Yes |
| Behavior Analysis: |
Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Line Crossing Detection: |
Cross a pre-defined virtual line |
| Intrusion Detection: |
Enter and loiter in a pre-defined virtual region |
| Unattended Baggage: |
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: |
Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections: |
Scene change detection |
| Detection/Recognition: |
Face Detection |
| Operating Conditions: |
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) |
| Power Supply: |
12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: |
12 VDC, 0.5 A, max. 5.5 W
PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7 W |
| Weather Proof: |
IP67 |
| IR Range: |
Up to 30m |
| Dimensions: |
Camera: Φ70 × 155 mm (Φ2.8" × 6.1")
Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7") |
| Weight: |
Camera: 410 g (0.9 lb.) |
|
รับประกัน
|
3 ปี
|
|
|
|
