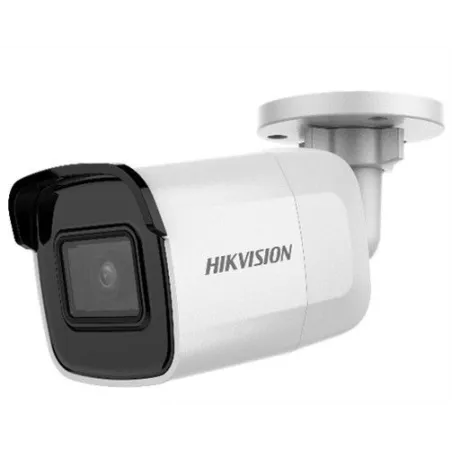

Overview | Hikvision DS-2CD2085G1-I Bullet IP Camera ความละเอียด 8MP Fixed Lens 4mm, IR 30 เมตร, H.265+, กันน้ำกันฝุ่น IP67,กันกระแทกระดับ IK10,รองรับ SD-Card สูงสุด 128GB, รองรับ POE |
| Image Sensor: | 1/2" Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON) |
| Shutter time: | 1/3 s to 1/100,000 s |
| Slow shutter: | Support |
| Lens: | 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92°
6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59° |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Day& Night: | IR Cut Filter |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
| Focus: | Fixed |
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate: | 32Kbps~16Mbps |
| Triple Streams: | Yes |
| Max. Image Resolution: | 3840 × 2160 |
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Frame Rate: | 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement: | BLC/3D DNR/ROI/HLC |
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| ROI: | Support 1 fixed region for main stream and sub stream separately |
| Day/Night Switch: | Day/Night/Auto/Schedule |
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | Yes |
| Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections: | Scene change detection |
| Detection/Recognition: | Face Detection |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3) |
| Power Consumption: | 12 VDC, 0.5 A, max: 6 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.2 A to 0.1 A, max: 7.5 W
|
| Weather Proof: | IP67 |
| IR Range: | Up to 30m |
| Dimensions: | Camera: 70 × 68 × 171 mm (2.8″ × 2.7″ × 6.7″) |
| Weight: | Camera: 400 g (0.9 lb.)
With package: 700 g (1.5 lb.) |
รับประกัน | 3 ปี |
| |
