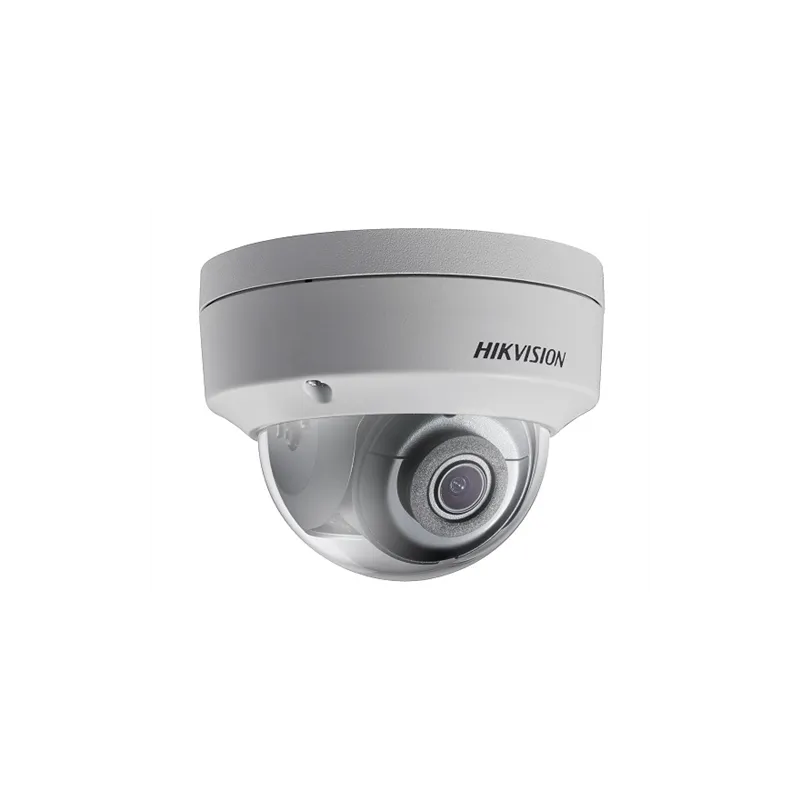

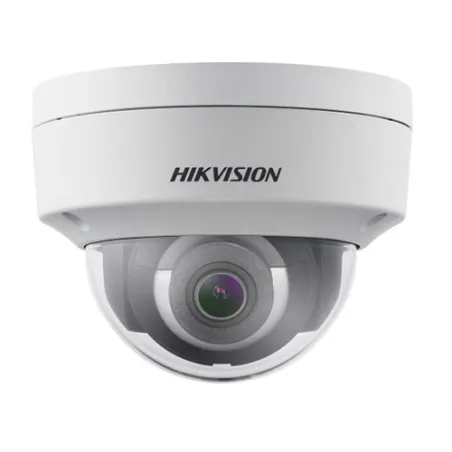

Overview | Hikvision DS-2CD2021G0-I Dome IP Camera ความละเอียด 2MP, IR 30 เมตร, กันน้ำกันฝุ่น IP67, รองรับ SD-Card สูงสุด 128GB, รองรับ POE |
Image Sensor: | 1/2.8" Progressive Scan CMOS |
Signal System: | PAL/NTSC |
Min. Illumination: | Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON);
B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR
|
Slow shutter: | Support |
Shutter time: | 1/3 s to 1/100,000 s |
Lens: | 2.8 mm: horizontal FOV: 115°, vertical FOV: 62°, diagonal FOV: 136°
4 mm: horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 103°
6 mm: horizontal FOV: 55°, vertical FOV: 31°, diagonal FOV: 62° |
Lens Mount: | M12 |
Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
Day& Night: | IR cut filter with auto switch |
Wide Dynamic Range: | 120 dB |
Digital noise reduction: | 3D DNR |
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
Video bit rate: | 32Kbps~16Mbps |
Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
Max. Image Resolution: | 1920 x 1080 |
Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
|
Image Enhancement: | BLC/3D DNR |
BLC: | Yes, zone configurable |
ROI: | Support 1 fixed region for main stream and sub stream separately |
Day/Night Switch: | Day/Night/Auto/Schedule/Triggered by Alarm In(-S) |
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering |
System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
Alarm: | with -S model : 1 input, 1 output |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button: | Yes |
Environment Noise Filtering: | Support(-S) |
Audio I/O: | support |
Line Crossing Detection: | Cross a pre-defined virtual line |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
Wireless Standards: | IEEE802.11b, 802.11g, 802.11n |
Frequency Range: | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth: | 20/40MHz Support |
Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
Wireless Range: | 50m(depend on environment) |
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) |
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
Power Consumption: | PoE: (802.3af, 36V-57V), 0.2 A to 0.1 A, max. 6.5W
12 VDC, 0.4 A, max. 5W
|
Impact Protection: | IK10 |
Weather Proof: | IP67 |
IR Range: | Up to 30m |
Dimensions: | Camera: Φ 111 × 82.4 mm (Φ 4.4" × 3.2")
With package: 135× 135 × 110 mm (5.3" × 5.3" × 4.3")
|
Weight: | Camera: approx. 497 g (1.1 lb.)
With package: approx. 597 g (1.3 lb.) |
รับประกัน | 3 ปี |
| |
