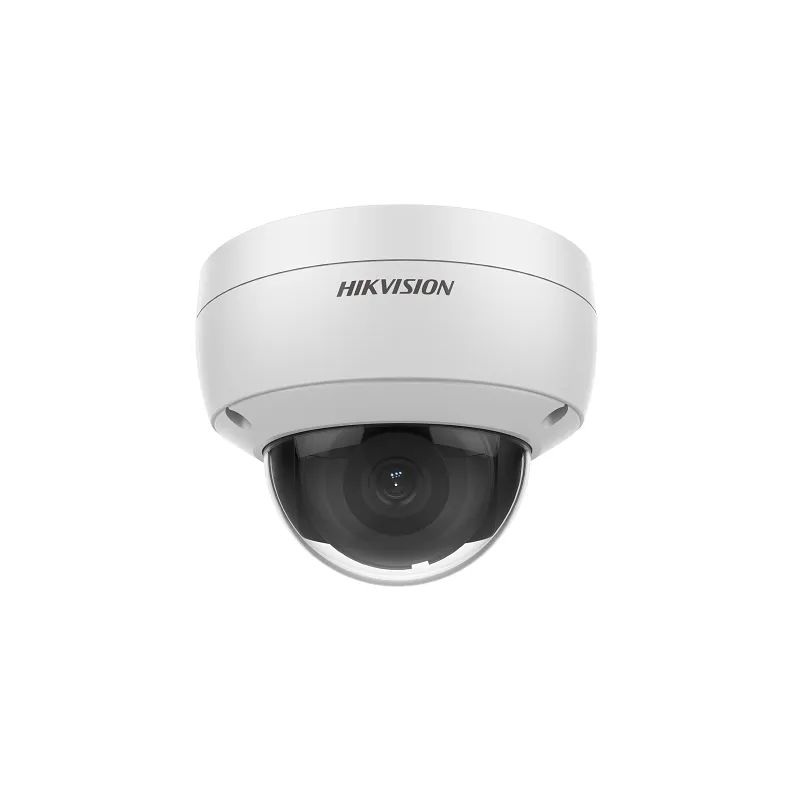

Overview | Hikvision DS-2CD2143G0-IU Dome IP Camera ความละเอียด 4MP, Build-In Microphone, IR 30 เมตร, H.265+, กันน้ำกันฝุ่น IP66, กันกระแทกระดับ IK10, รองรับ SD-Card สูงสุด 128GB, รองรับ POE |
| Image Sensor: | 1/2.8" Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter time: | 1/3 s to 1/100,000 s |
| Slow shutter: | Support |
| Lens: | 2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62° |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Digital noise reduction: | 3D DNR |
| Focus: | Fixed |
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate: | 32Kbps~16Mbps |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
| Triple Streams: | Yes |
| Max. Image Resolution: | 1920 x 1080 |
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720) |
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement: | BLC/3D DNR/ROI/HLC |
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Target Cropping: | No |
| BLC: | Yes, zone configurable |
| ROI: | 1 fixed region for main stream and sub-stream |
| Day/Night Switch: | Day/Night/Auto/Schedule |
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| General Function: | Anti-flicker, three streams, heartbeat, mirror, 4 regions of privacy mask |
| System Compatibility: | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Communication Interface: | 1 RJ45 100M self-adaptive Ethernet port |
| Audio: | Built-in mic |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | Yes |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Behavior Analysis: | Line crossing detection, intrusion detection |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| Detection/Recognition: | Face Detection |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3) |
| Power Consumption: | 12 VDC, 0.4 A, max. 5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W |
| Impact Protection: | IK10 |
| Weather Proof: | IP66 |
| IR Range: | Up to 30m |
| Dimensions: | Camera: Φ121 × 92 mm (Φ4.8" × 3.6")
With package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
|
| Weight: | Camera: Approx. 570 g (1.3 lb.)
With package: Approx. 950 g (2.1 lb.) |
รับประกัน | 3 ปี |
| |
