แบรนด์: Hikvision
User Manual of DS-7604NI-K1/4P
Quick Start Guide of DS-7604NI-K1/4P
Product Specification |
|
Overview |

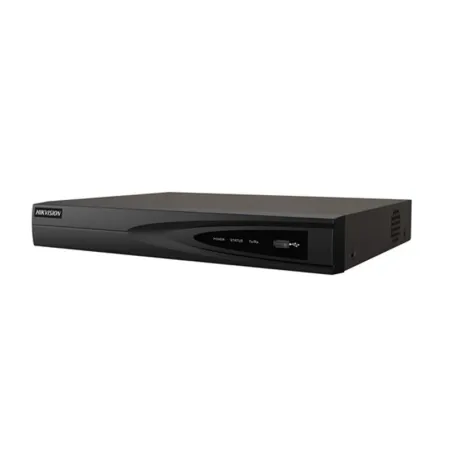

Hikvision DS-7604NI-K1/4P NVR (Network Video Recorder) เครื่องบันทึกภาพ รองรับกล้องความละเอียด 8MP จำนวน 4 กล้อง, รองรับมาตรฐานการบีบอัดภาพ H.265+, รองรับ HDD 6TB x 1 (Not Include), 1 Port HDMI, จ่ายไฟ POE 4 Port เพื่อใช้กับกล้องที่รองรับ POE |
Two-way audio input: |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP video input: |
4-ch |
Incoming bandwidth: |
40Mbps |
Outgoing bandwidth: |
80Mbps |
HDMI Output: |
1-ch, resolution:4K (3840 × 2160)/30Hz,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz. |
Recording Resolution: |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
Audio Output: |
1-ch, RCA (Linear, 1kΩ) |
VGA Output: |
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Capability: |
4-ch@1080P |
Live view / Playback: |
8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
SATA: |
1 SATA interface for 1 HDD |
Capacity: |
Up to 6TB capacity for each HDD |
Network Interface: |
1 RJ-45 10 / 100 Mbps selfadaptive |
USB Interface: |
2, USB2.0 |
Interface: |
4 independent 10 /100 Mbps PoE |
Power Supply: |
48 VDC |
Consumption(without hard disk and POE): |
≤ 10 W |
Working Temperature: |
-10 oC ~ +55 oC (+14 oF~ + 131 oF) |
Working Humidity: |
10 % ~ 90 % |
Chassis: |
315 mm chassis |
Dimensions: |
315 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
Weight(without HDD): |
≤ 1 kg (2.2 lb) |
รับประกัน |
3 ปี |
|
|
