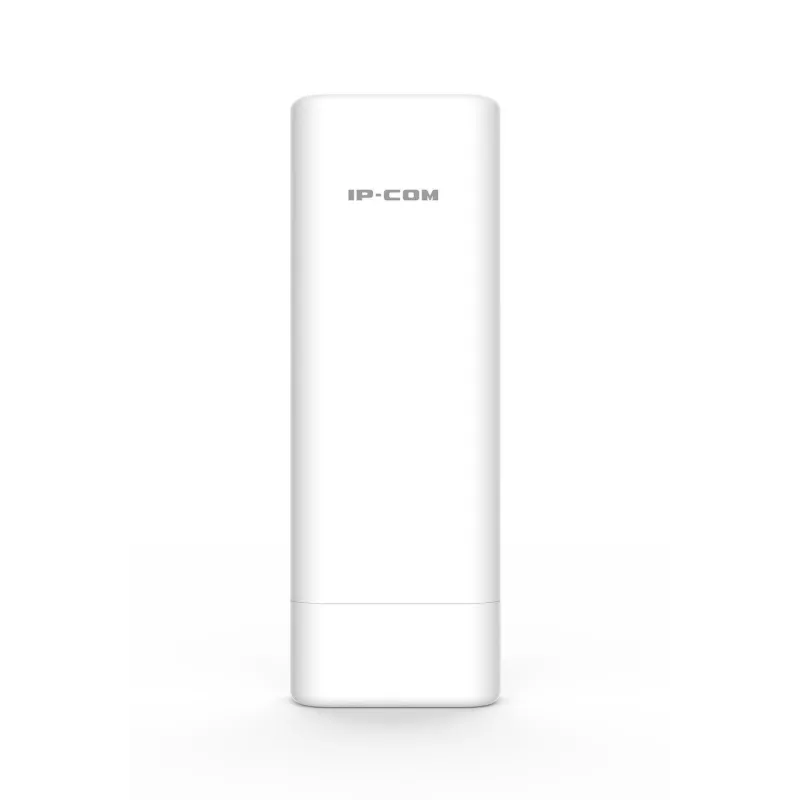

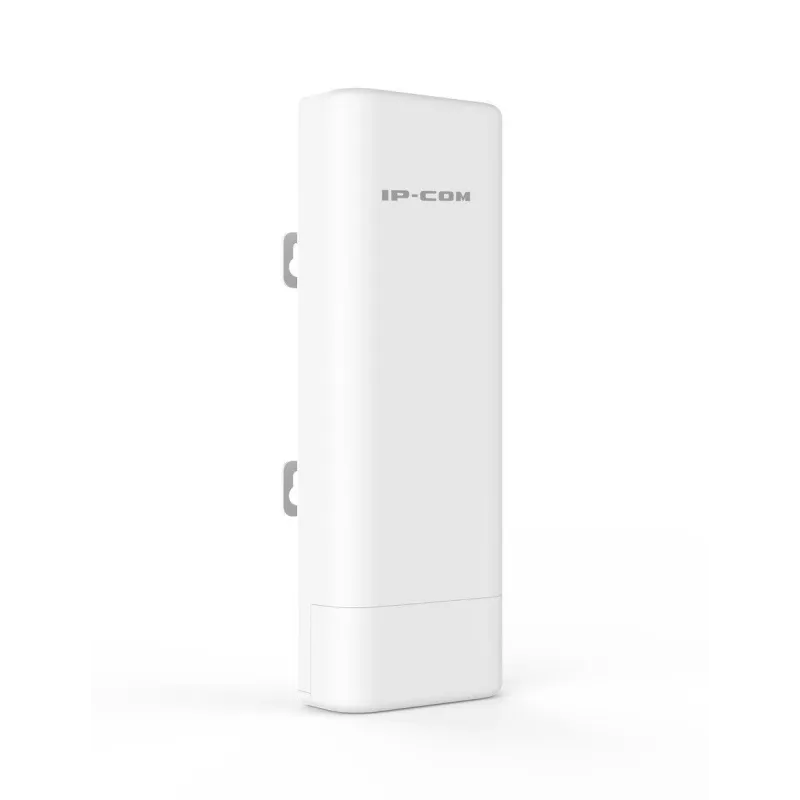

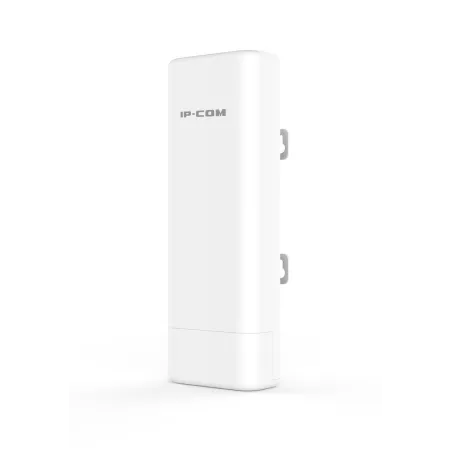

IP-COM CPE12 Wireless Outdoor Point to Point 5GHz ความเร็ว 300Mbps เสาอากาศ 14dBi ได้ระยะทาง 3-5Km พร้อม POE
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
IP-COM AP625 User Guide
IP-COM AP625 Datasheet
IP-COM AP625 Quick Install Guide
IP-COM CPE Management Software
Overview | IP-COM CPE12 Wireless CPE Outdoor Point to Point 5GHz ความเร็วสูงสุด 300Mbps, เสาอากาศแบบทิศทาง 14dBi สำหรับเชื่อมต่อเครือข่ายระยะไกล Point To Point ได้ระยะทาง 3-5Km พร้อม Passive POE เดินสาย Lan ได้ระยะถึง 60 เมตร |
Product Information | |
|---|---|
Model | CPE12 |
Dimensions | 270*94.86*67.5mm |
Deployment | Pole Mount/Wall Mount |
Application Scenarios | WISP CPE, Data transmission and Long range video surveillance |
Hardware Features | |
Frequency Range | 5GHz |
Compliant Standards | IEEE 802.11a/n |
Private TDMA Protocol | IMAX |
Maximum Wireless Rate | 300Mbps |

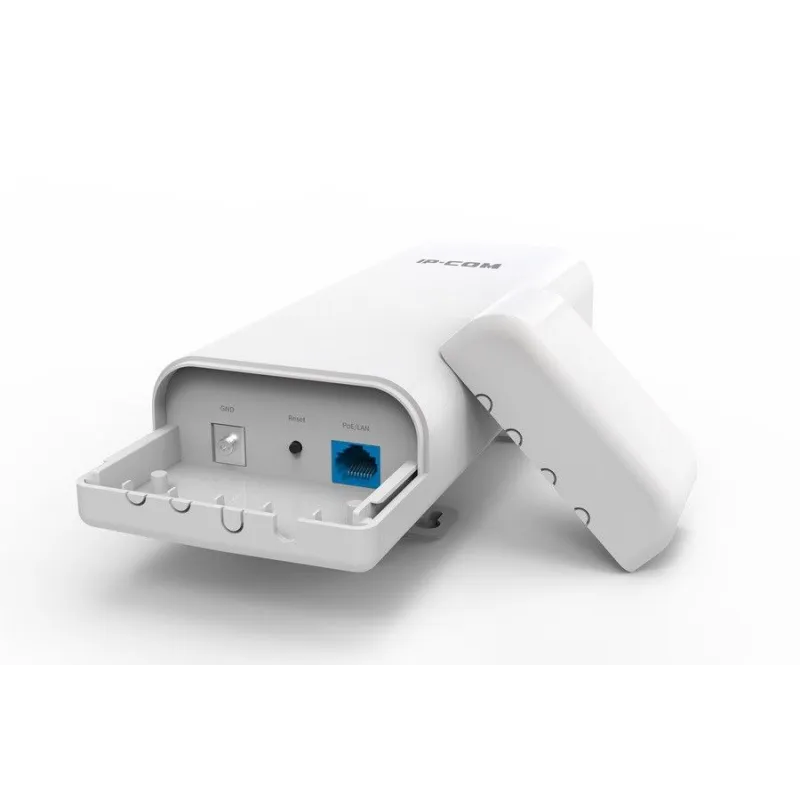

Interfaces | 1*10/100Mbps Ethernet Port |
Antennas Gain | 14dbi |
Antenna Beamwidth | Horizonal: 30° |
Reset Button | 1 |
GND | 1 |
Power Consumption | 8.5W |
Waterproof Level | IP65 |
LED indicator | PoE/LAN,LED1,LED2,LED3 |
Power Method | 24V0.5A Passive PoE |
Lightning Protection | 6000V |
Passive PoE | Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins) |
Receiver sensitivity | MCS0: -96dbm |
Software Features | |
Operating mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
Enable/Disable Wireless Radio | Support |
SSID Hidden | Support |
Wireless Client isolation | Support |
SSID Isolation | Support |
Channel Bandwidth | 10/20/30/40MHz |
Client Limitation For SSID | Support |
Wireless Access Control | Support |
Weak Signal Client Limitation | Support |
Transmission Power | Adjustable power by 1dBm |
WMM Capable | Support |
APSD Capable | Support |
Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
Transparent Bridge | Support |
VLAN Tagging for SSID | Support |
DHCP Server | Support |
VPN Pass-Through | PPTP,L2TP |
Remote Web access | Support |
Schedule Reboot | Support |
Page Timeout | Support |
Ping Watchdog | Support |
Dyndns | noip, dyndns.org |
Network Diagnoses | Ping, Traceroute, Signal Scan |
Time&Date Setting | Support |
Firmware upgrade | Support |
Backup/Restore Configuration | Support |
Username Managerment | Support |
System Log | Support |
Managed By Controller | PC Software -- CPE Controller |
Others | |
Package Contents | 1*5km Point to Point Outdoor CPE CPE12 |
Operating Temperature | -30℃ ~ 60℃ |
Storage Temperature | -40℃ ~ 70℃ |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 10%~90% non-condensing |
Default login IP | 192.168.2.1 |
Default Login Username | admin |
Default Login Password | admin |
Certifications | FCC/CE/RoHS |
รับประกัน | สินค้ารับประกัน 2 ปี |
