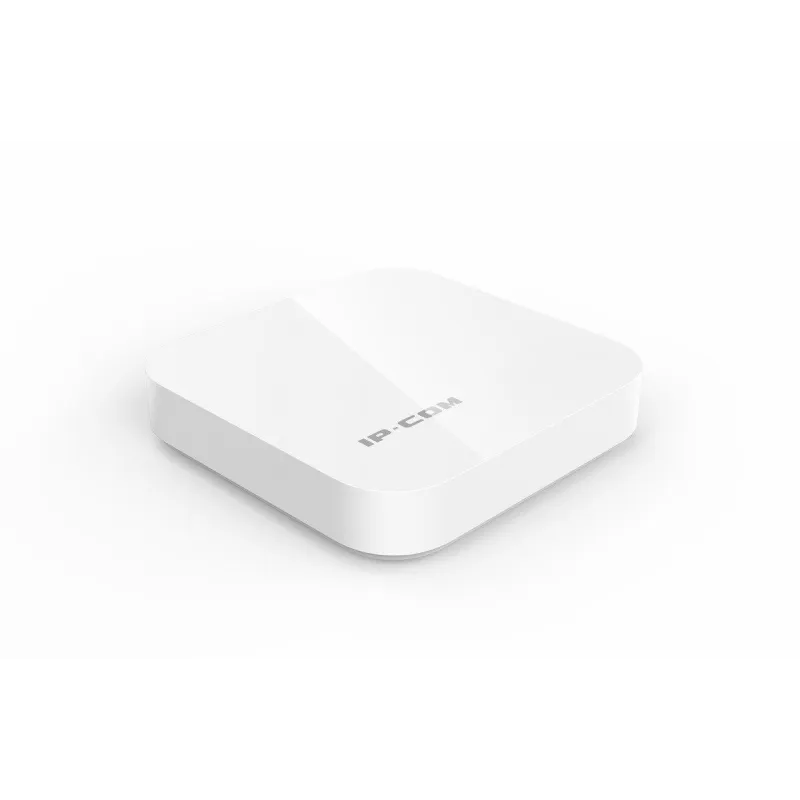

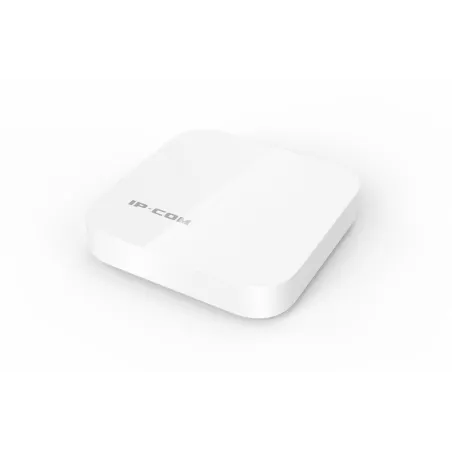

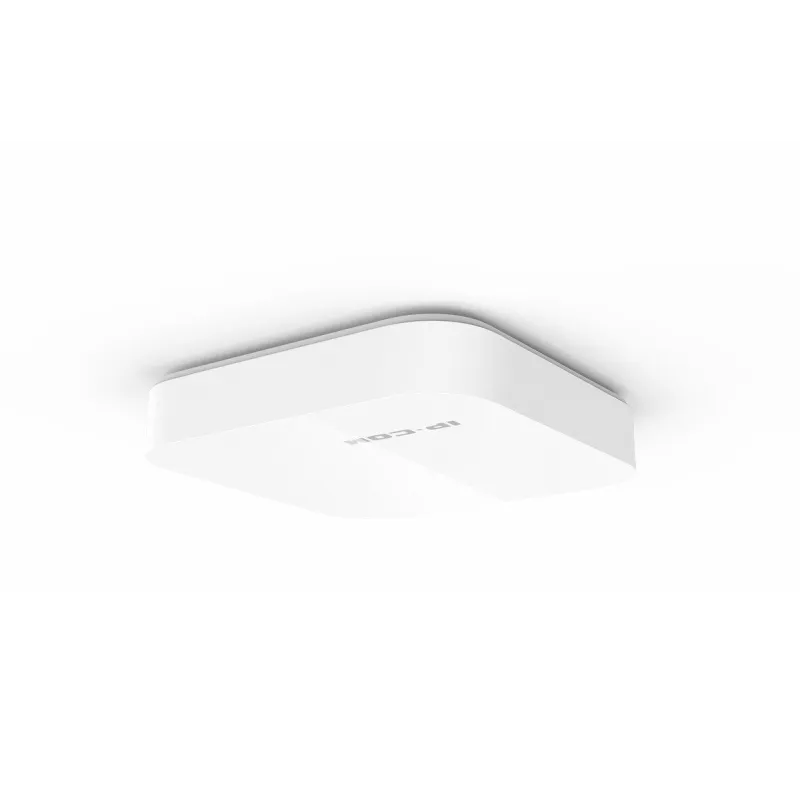

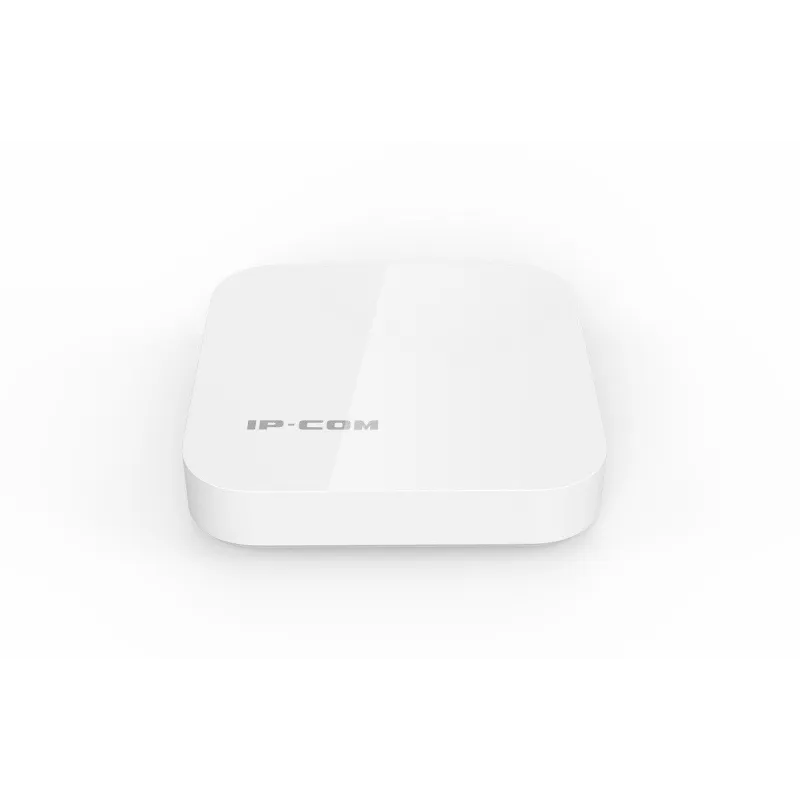

IP-COM EP9 AC1200 Enterprise Mesh Wi-Fi System Extender, 802.11AC Wave 2 1,200Mbps True Mesh technology (Node Mesh)
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Click ต้องการใบเสนอราคา
IP-COM EP9 Datasheet
IP-COM EP9 Quick Install Guide
IP-COM EP9 WIFI App User Guide
Product Specification | |
Overview | IP-COM EP9 AC1200 Enterprise Mesh Wi-Fi System Extender, มาตรฐาน 802.11AC Wave 2 ความเร็วสูงสุด 1,200Mbps (867Mbps@5GHz / [email protected]), True Mesh technology Node Mesh อุปกรณ์ตัวเสริม สำหรับเชื่อมต่อด้วย Mesh System กับอุปกรณ์ IP-COM EW9 |
Hardware Specification | |
|---|---|
Frequency | Dua-Band：2.4GHz + 5GHz |
Wireless Rate | [email protected] + 867Mbps@5GHz |
11AC Wave 2 | Support |
Beamforming | Support |
Networking Technology | True Mesh |
Wireless Power | 2.4G：19dBm |
Antenna | 4 * 4dBi, Horizontal omnidirectional antenna |
Interface | 1 * Power Port, 1*Reset button |
Software Specification | |
QoS | Support |
Seamless Roaming | Support |
Installation and Deployment | |
Mounting | wall mount/ceiling mount/pole mount/desk mount |
APP Installation and Configuration | Support |
Route Mode and Bridge Mode | Support |
Mesh nodes in one Mesh System | Typical:3 |
Management and Maitainance | |
APP Management | Support |
Authentication Access | |
Local Certifiication | Support |
Other | |
Dimensions | Product：170*170*36mm |
Packing List | Bracketx1, Boltx4、Expansion sleevex4, Expansion scewx4, Ribbonx2 |
Packing Quantities | 20 |
Power Dimensions | External switching power supply 12V/1A |
Certification | FCC\CE\RoHs |
รับประกัน | สินค้ารับประกัน 3 ปี |
|
|
Mesh Network Topolofy for Small Project
It is designed for office, restaurant, hotel and other SMB segment.
● The Mesh device works in router mode, and the host node of Mesh ACTS as the network core router for data forwarding
● Two Mesh satellites nodes and the host build a mesh system
● APP Local and remote management and maintenance. The engineer can check the real-time status of all Mesh networks that they have done through the cloud platform
Mesh Network Topolofy for Middle Project
It is designed for office, restaurant, hotel and other enterprise project.
● Three Mesh products are placed in one area to form an independent mesh network system . Mesh devices of different floors and areas are connected to the switch through the network.
● All the mesh nodes work as AP mode at the same time. All nodes can be managed locally and remotely by the APP.
● The engineer can check the operation status of all deployed Mesh networks through the cloud platform.
