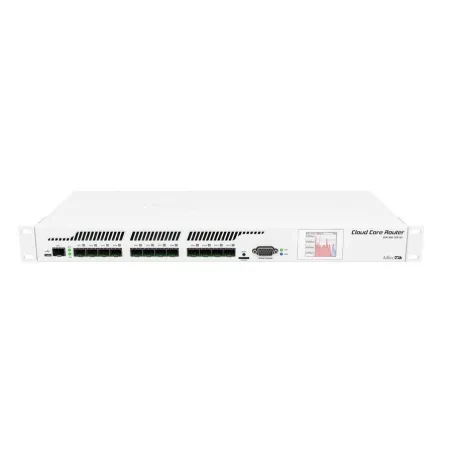

Mikrotik CCR1016-12S-1S+ Cloud Core Router ระดับ Top CPU 1.2GHz 36 Core Ram 4GB 12 Port SFP ROS LV6

Product Specification

Overview

อุปกรณ์ Mikrotik Cloud Core Router รุ่น CCR1016-12S-1S+ อุปกรณ์ Router ระดับ Top ใช้ทำระบบ Firewall, Bandwidth Management, Web Proxy, Dynamic Routing Protocol (RIP, OSPF, BGP), Secure Tunnel (EoIP, PPPoE, PPTP, L2TP, OVPN 200 Connection), VLAN, P2P Firewall Rules, Nat Rules, Hotspot Gateway (Unlimit User), Radius Client, Unlimited Queues, User Manager (Unlimit Active Session), Synchronous Interface, Core Router

CPU

Tilera TLR4-01680CG-12CE-A3a  CPU (16-cores, 1.2Ghz per core)

Memory

SODIMM DDR Slot, 2GB ติดตั้งภายใน

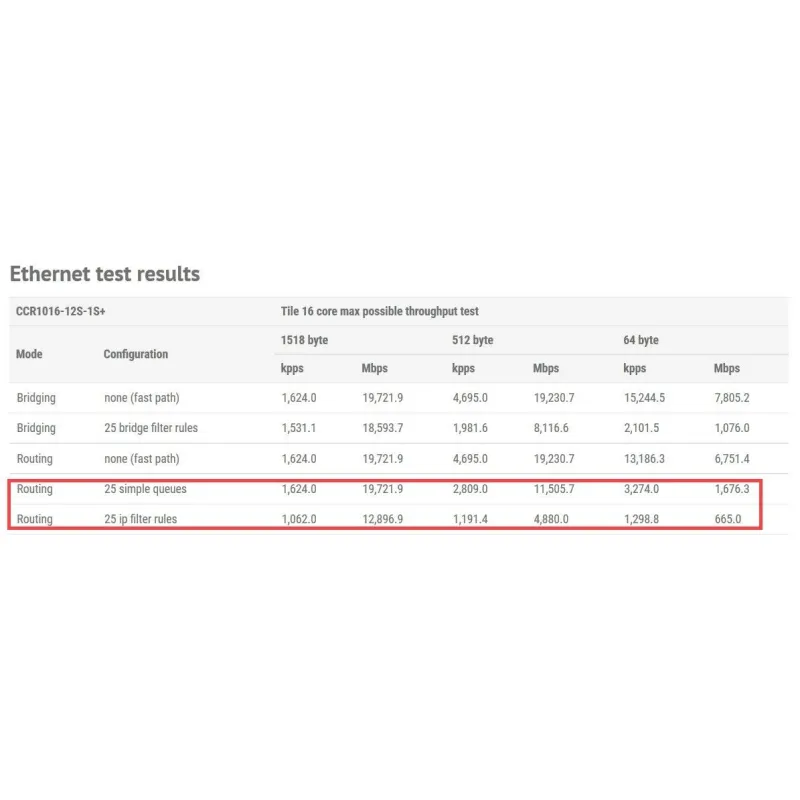

Throughput

-

Operating System

RouterOS v6 (64bit)

Hotspot Account

รองรับได้ไม่จำกัดจำนวน Account (UnLimit)

Data storage

128MB Onboard NAND

Ethernet

-

SFP Port

SFP+ Port

1 Port

Memory Cards

1 MicroSD Slot

802.3af Support

Yes

POE In

n/a

Voltage Monitor

Yes

PCB temperature monitor

Yes

CPU temperature monitor

Yes

Current Monitor

Yes

miniPCI

n/a

Serial port

1 Port RS232 (DB9)

Memory Cards

1 MicroSD Slot

Power options

IEC C14 standard connector 110/220V, Power jack (BU model only) and Passive PoE

24V. PSU included in both models.

Dimensions

1U case: 355x145x55 mm

Weight

1,200g

Operating Temperature

-20C ถึง +70C

รับประกัน

1 ปี
