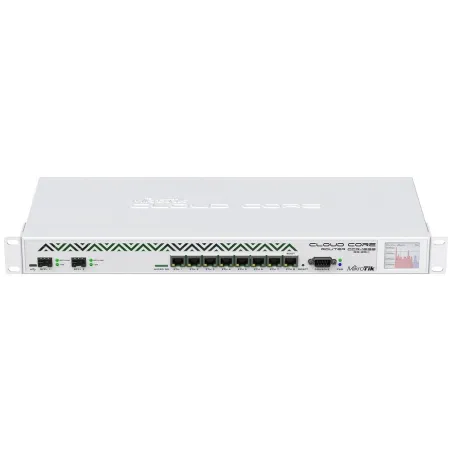

Mikrotik CCR1036-8G-2S+EM Cloud Core Router CPU 36Core 1.2GHz Ram 16GB, 8 Port Giagbit, 2 Port SFP+
  • Mikrotik CCR1036-8G-2S+EM Cloud Core Router CPU 36Core 1.2GHz Ram 16GB, 8 Port Giagbit, 2 Port SFP+
  • Mikrotik CCR1036-8G-2S+EM Cloud Core Router CPU 36Core 1.2GHz Ram 16GB, 8 Port Giagbit, 2 Port SFP+
  • Mikrotik CCR1036-8G-2S+EM Cloud Core Router CPU 36Core 1.2GHz Ram 16GB, 8 Port Giagbit, 2 Port SFP+

Mikrotik CCR1036-8G-2S+EM Cloud Core Router CPU 36Core 1.2GHz Ram 16GB, 8 Port Giagbit, 2 Port SFP+

MikroTik CCR1036-8G-2S+EM Cloud Core Router CPU 1.2GHz 36Core Ram 8GB, 8Port Gigabit, 2 Port SFP+ (10Gbps) ROS LV.6 สำหรับทำ Core Router, Hotspot Authenticate QOS L7 Firewall

฿54,900.00
ยังไม่ได้รวมภาษี
จำนวน
ชิ้นสุดท้ายในสต็อก


สอบถามรายละเอียดสินค้าเพิ่มเติม LINE:
@sysnet


รายละเอียด

Mikrotik CCR1036-8G-2S+EM Datasheet
Mikrotik Routerboard คืออะไร? ใช้ทำอะไรได้บ้าง?

Product Specification



Overview

อุปกรณ์ Mikrotik Cloud Core Router รุ่น CCR1036-8G-2S+EM อุปกรณ์ Router ระดับ Top สำหรับทำระบบ Firewall, Bandwidth Management, Web Proxy, Dynamic Routing Protocol (RIP, OSPF, BGP), Secure Tunnel (EoIP, PPPoE, PPTP, L2TP, OVPN 200 Connection), VLAN, P2P Firewall Rules, Nat Rules, Hotspot Gateway (Unlimit User), Radius Client, Unlimited Queues, User Manager (Unlimit Active Session), Synchronous Interface, Core Router



ทำระบบ Hotspot Authenticate ได้ประมาณ 500-1000 Users พร้อมกัน

CPU

Tilera TLR4-03680CG-12CE-A3b  CPU (36-cores, 1.2Ghz per core)

Memory

8 GB DDR3 800 MHz

Data storage

1 GB Onboard NAND

Operating System

RouterOS v6 (64bit)

Hotspot Account

รองรับได้ไม่จำกัดจำนวน Account (UnLimit)

Ethernet

8 Port 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X

miniPCI

n/a

Serial port

1 Port RS232 (DB9)

SFP Port

n/a

SFP+ Port

2 Port (รองรับความเร็ว 10Gbps)

Memory Cards

1 MicroSD Slot

802.3af Support

Yes

POE In

No

Voltage Monitor

Yes

PCB temperature monitor

Yes

CPU temperature monitor

Yes

Current Monitor

Yes

Power options

IEC C14 standard connector 110/220V (PSU included), up to 60W power consumption

Temperature

Max ambient temperature 50? @ 1.2GHz; 70? @ 1GHz CPU core frequency

Dimensions

1U case: 355 x 145 x 55mm

Weight

1,200g

Operating Temperature

-20C ถึง +70C

รับประกัน

1 ปี
