    Mikrotik CCR1072-1G-8S+ Cloud Core Router 72 Core, 8 Port SFP+ 10Gbps, Throughput 120Million PPS

    MikroTik
    Rating

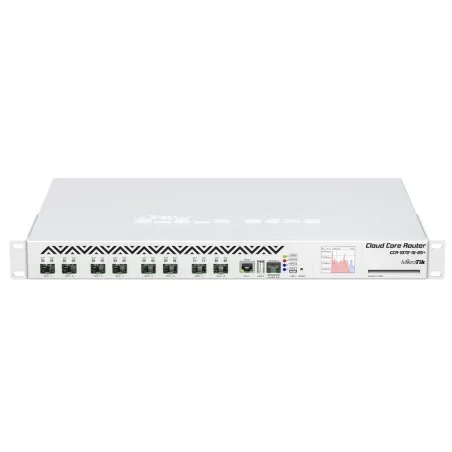

    Mikrotik CCR1072-1G-8S+ Cloud Core Router 72 Core, 8 Port SFP+ 10Gbps, 1 Port Lan Gigabit, ECC RAM 16GB, M.2 slots x 2, Throughput 120Million PPS

    ฿91,688.00
    ยังไม่ได้รวมภาษี
    จำนวน

    รายละเอียด

    รวมคู่มือการใช้งาน อุปกรณ์ Mikrotik มากกว่า 200 หัวข้อ

    Mikrotik CCR1072-1G-8S+ Datasheet
    SFP module compatible list

    Product Specification

    Overview

    Mikrotik CCR1072-1G-8S+ Cloud Core Router 72 Core, 8 Port SFP+ 10Gbps, 1 Port Lan Gigabit, ECC RAM 16GB, M.2 slots  x 2, Throughput 120Million PPS, Router OS License Level 6

    Product code

    CCR1072-1G-8S+

    Architecture

    TILE

    CPU

    TLR4-07280

    CPU core count

    72

    CPU nominal frequency

    1 GHz

    Dimensions

    443 x 315 x 44 mm

    License level

    6

    Operating System

    RouterOS

    Size of RAM

    16 GB

    Storage size

    128 MB

    Storage type

    NAND

    Tested ambient temperature

    -20°C to 60°C

    Number of AC inputs

    2

    AC input range

    100-240

    Max power consumption

    125 W

    10/100/1000 Ethernet ports

    1

    SFP+ ports

    8

    Memory card type

    microSD, 2x M.2

    Memory Cards

    3

    Serial port

    RJ45

    Number of USB ports

    2

    USB Power Reset

    Yes

    USB slot type

    microUSB type AB; USB type A

    Max USB current (A)

    1

    Smart card slot

    Yes

    CPU temperature monitor

    Yes

    Current Monitor

    Yes

    PCB temperature monitor

    Yes

    Voltage Monitor

    Yes

    Certification

    CE/RED, EAC, ROHS

    รับประกัน

    2 ปี ตามเงื่อนไขการรับประกัน

    เงื่อนไขการ Support สำหรับอุปกรณ์ Mikrotik

    Ethernet test results

    CCR1072-1G-8S+

    Tile 72 Core (1000Mhz, DDR1600) Max possible throughput

    Mode

    Configuration

    1518 byte

    512 byte

    64 byte

    kpps

    Mbps

    kpps

    Mbps

    kpps

    Mbps

    Bridging

    none (fast path)

    6,502.0

    78,960.3

    18,790.0

    76,963.8

    98,873.5

    50,623.2

    Bridging

    25 bridge filter rules

    5,764.8

    70,007.7

    8,240.2

    33,751.9

    8,866.3

    4,539.5

    Routing

    none (fast path)

    6,502.0

    78,960.3

    18,790.0

    76,963.8

    76,201.0

    39,014.9

    Routing

    25 simple queues

    6,502.0

    78,960.3

    11,073.5

    45,357.1

    11,444.4

    5,859.5

    Routing

    25 ip filter rules

    4,664.7

    56,648.1

    5,200.3

    21,300.4

    5,321.0

    2,724.4

    IPsec test results

    CCR1072-1G-8S+

    CCR1072-1G-8S+ IPsec throughput

    Mode

    Configuration

    1400 byte

    512 byte

    64 byte

    kpps

    Mbps

    kpps

    Mbps

    kpps

    Mbps

    Single tunnel

    AES-128-CBC + SHA1

    112.5

    1260.0

    112.6

    461.2

    115.4

    59.1

    256 tunnels

    AES-128-CBC + SHA1

    970.8

    10873.0

    1096.5

    4491.3

    1190.5

    609.5

    256 tunnels

    AES-128-CBC + SHA256

    906.1

    10148.3

    1082.8

    4435.1

    1163.0

    595.5

    256 tunnels

    AES-256-CBC + SHA1

    904.4

    10129.3

    1051.0

    4304.9

    1190.5

    609.5

    256 tunnels

    AES-256-CBC + SHA256

    895.9

    10034.1

    1078.3

    4416.7

    1135.5

    581.4
