Mikrotik CCR2004-1G-12S+2XS Datasheet
SFP module compatible list
Product Specification |
|
Overview |

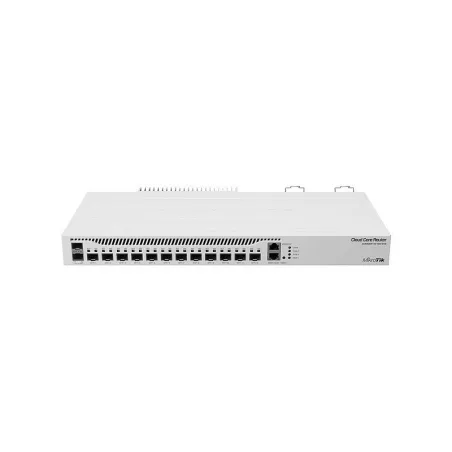

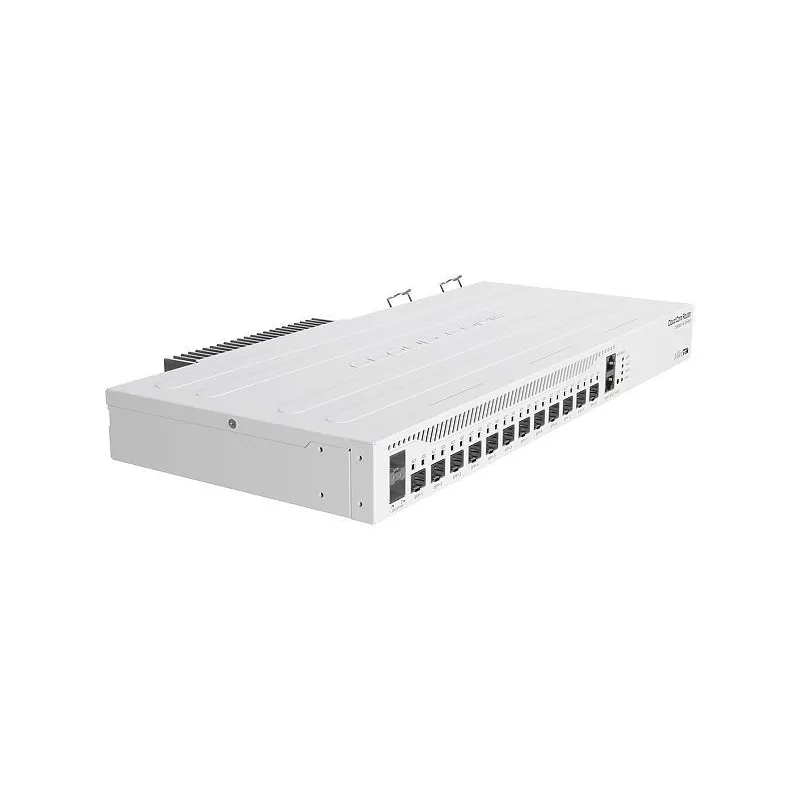

Mikrotik CCR2004-1G-12S+2XS Cloud Core Router CPU 1.7G 4Core, RAM 4GB, Rom 128MB พร้อม SFP+ 12 Port ความเร็ว 10Gbps, 2 Port SFP28 ความเร็ว 25Gbps, Router OS Level 6 |
Product code |
CCR2004-1G-12S+2XS |
Architecture |
ARM 64bit |
CPU |
AL32400 |
CPU core count |
4 |
CPU nominal frequency |
1700 MHz |
Dimensions |
443 x 224 x 44 mm |
License level |
6 |
Operating System |
|
Size of RAM |
4 GB |
Storage size |
128 MB |
Storage type |
NAND |
Tested ambient temperature |
-20°C to 60°C |

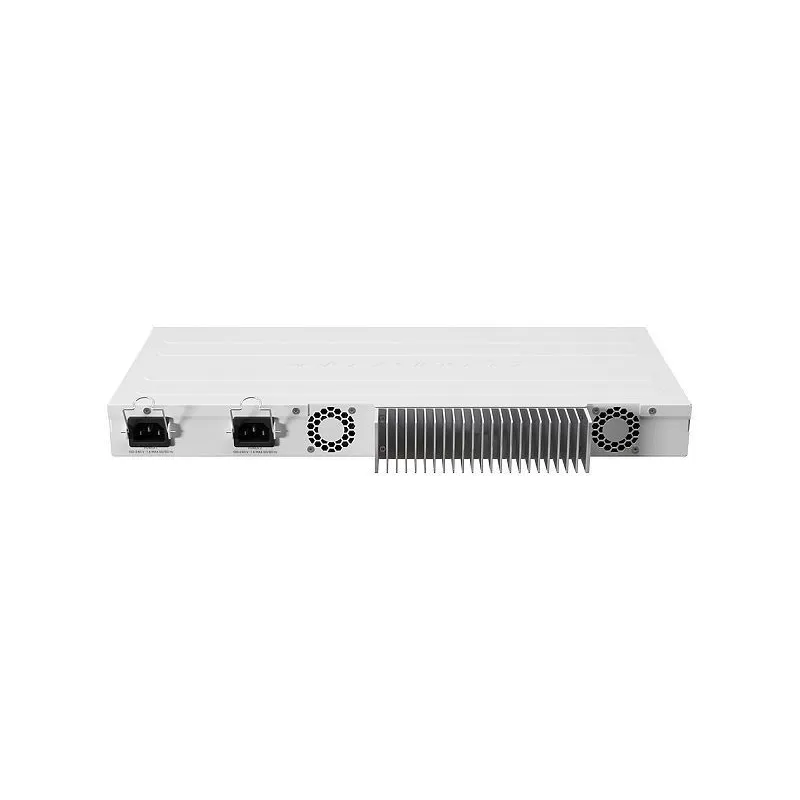

Number of AC inputs |
2 |
AC input range |
100-240 |
Max power consumption |
49 W |
Max power consumption without attachments |
32 W |
10/100/1000 Ethernet ports |
1 |
SFP+ ports |
12 |
Number of 25G SFP28 ports |
2 |
Serial port |
RJ45 |
CPU temperature monitor |
Yes |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Certification |
CE/RED, EAC, ROHS |
รับประกัน |
2 ปี ตามเงื่อนไขการรับประกัน |
|
CCR2004-1G-12S+2XS |
AL32400 all port test |
||||||
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
Bridging |
none (fast path) |
3248 |
39444 |
6421 |
26300 |
11552 |
5915 |
Bridging |
25 bridge filter rules |
1774 |
21543 |
1815 |
7434 |
1736 |
889 |
Routing |
none (fast path) |
3231 |
39237 |
6344 |
25985 |
10322 |
5285 |
Routing |
25 simple queues |
2214 |
26887 |
2277 |
9327 |
2259 |
1157 |
Routing |
25 ip filter rules |
1096 |
13310 |
1108 |
4538 |
1136 |
582 |
CCR2004-1G-12S+2XS |
AL32400 IPsec throughput |
||||||
Mode |
Configuration |
1400 byte |
512 byte |
64 byte |
|||
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
Single tunnel |
AES-128-CBC + SHA1 |
303.6 |
3400.3 |
353.6 |
1448.3 |
354.7 |
181.6 |
256 tunnels |
AES-128-CBC + SHA1 |
302.0 |
3382.4 |
378.8 |
1551.6 |
376.4 |
192.7 |
256 tunnels |
AES-128-CBC + SHA256 |
302.0 |
3382.4 |
378.8 |
1551.6 |
376.4 |
192.7 |
256 tunnels |
AES-256-CBC + SHA1 |
300.3 |
3363.4 |
374.5 |
1534.0 |
374.5 |
191.7 |
256 tunnels |
AES-256-CBC + SHA256 |
300.3 |
3363.4 |
374.5 |
1534.0 |
374.5 |
191.7 |
