 CCR2216-1G-12XS-2XQ

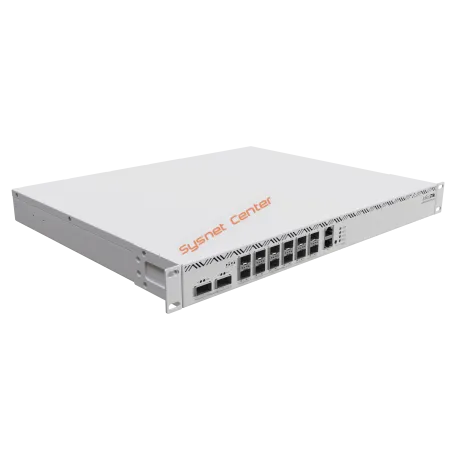

Mikrotik CCR2216-1G-12XS-2XQ Cloud Core Router 16 Core, 12 Port SFP+ 25Gbps, 2 Port QSFP 100Gbps , RAM 16GB, M.2 slots สำหรับต่อ HDD x 2
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Click ต้องการใบเสนอราคา
รวมคู่มือการใช้งาน อุปกรณ์ Mikrotik มากกว่า 200 หัวข้อ
Mikrotik CCR2216-1G-12XS-2XQ Datasheet
Product Specification  | |
Overview  | Mikrotik CCR2216-1G-12XS-2XQ Cloud Core Router 16 Core, 12 Port SFP+ 25Gbps, 2 Port QSFP 100G1 Port Lan Gigabit, ECC RAM 16GB M.2 slots สำหรับต่อ HDD จำนวน 2 slots Router OS License Level 6  |
Product code  | CCR2216-1G-12XS-2XQ  |
Architecture  | ARM 64bit  |
CPU  | AL73400  |
CPU core count  | 16  |
CPU nominal frequency  | 2000 MHz  |
Dimensions  | 443 x 367 x 44 mm  |
License level  | 6  |
Operating System  | |
Size of RAM  | 16 GB  |
Storage size  | 128 MB  |
Storage type  | NAND  |
Tested ambient temperature  | -20°C to 60°C  |
Number of AC inputs  | 2  |
AC input range  | 100-240  |
Max power consumption  | 128 W  |
10/100/1000 Ethernet ports  | 1  |
SFP+ ports  | 12  |
Memory card type  | microSD, 2x M.2  |
Memory Cards  | 3  |
Serial port  | RJ45  |
Number of USB ports  | 2  |
USB Power Reset  | Yes  |
USB slot type  | microUSB type AB; USB type A  |
Max USB current (A)  | 1  |
Smart card slot  | Yes  |
CPU temperature monitor  | Yes  |
Current Monitor  | Yes  |
PCB temperature monitor  | Yes  |
Voltage Monitor  | Yes  |
Certification  | CE/RED, EAC, ROHS  |
รับประกัน  | 2 ปี ตามเงื่อนไขการรับประกัน  |
