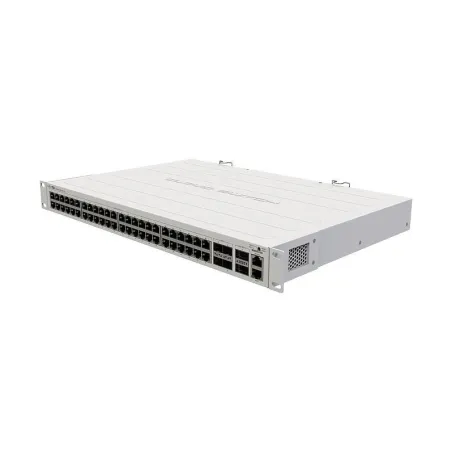

CRS354-48G-4S+2Q+RM Mikrotik Cloud Router Switch 48 Port 1Gbps, 2 QSFP+ 40Gbps
  • CRS354-48G-4S+2Q+RM Mikrotik Cloud Router Switch 48 Port 1Gbps, 2 QSFP+ 40Gbps
  • CRS354-48G-4S+2Q+RM Mikrotik Cloud Router Switch 48 Port 1Gbps, 2 QSFP+ 40Gbps
  • CRS354-48G-4S+2Q+RM Mikrotik Cloud Router Switch 48 Port 1Gbps, 2 QSFP+ 40Gbps
  • CRS354-48G-4S+2Q+RM Mikrotik Cloud Router Switch 48 Port 1Gbps, 2 QSFP+ 40Gbps
  • CRS354-48G-4S+2Q+RM Mikrotik Cloud Router Switch 48 Port 1Gbps, 2 QSFP+ 40Gbps
  • CRS354-48G-4S+2Q+RM Mikrotik Cloud Router Switch 48 Port 1Gbps, 2 QSFP+ 40Gbps
  • CRS354-48G-4S+2Q+RM Mikrotik Cloud Router Switch 48 Port 1Gbps, 2 QSFP+ 40Gbps

CRS354-48G-4S+2Q+RM Mikrotik Cloud Router Switch 48 Port 1Gbps, 2 QSFP+ 40Gbps

CRS354-48G-4S+2Q+RM

Mikrotik Cloud Router Switch CRS354-48G-4S+2Q+RM, Port Lan 48 Port 1Gbps, 2 Port QSFP+ 40Gbps,4 Port SFP+ 10Gigabit, รองรับ L2-L3 Managed Switch

฿24,500.00
ยังไม่ได้รวมภาษี
จำนวน
Out-of-Stock

รายละเอียด

รวมคู่มือการใช้งาน อุปกรณ์ Mikrotik มากกว่า 200 หัวข้อ

Mikrotik CRS354-48G-4S+2Q+RM Datasheet
Mikrotik CRS354-48G-4S+2Q+RM Quick Guide
SFP module compatible list

Product Specification

Overview

Mikrotik Cloud Router Switch CRS354-48G-4S+2Q+RM Port Lan 48 Port 1Gbps, 2 Port QSFP+ 40Gbps,4 Port SFP+ 10Gigabit, รองรับ L2-L3 Managed Switch

พร้อม Port QSFP+ ความเร็วสูงสุด 40Gbps

รองรับ throughput ได้ถึง 168Gbps และ switching capacity ได้ถึง 336Gbps พร้อม forwarding rate ความเร็ว 235Mpps

Architecture

MIPSBE

CPU

QCA9531

CPU core count

1

CPU nominal frequency

650 MHz

Dimensions

297 x 443 x 44 mm

License level

5

Operating System

RouterOS

Size of RAM

64 MB

Storage size

16 MB

Storage type

FLASH

Tested ambient temperature

-20°C to 60°C

Number of AC inputs

2

AC input range

100-240

Max power consumption

60 W

Max power consumption without attachments

50 W

10/100 Ethernet ports

1

10/100/1000 Ethernet ports

48

SFP+ ports

4

Number of 40G QSFP+ ports

2

Serial port

RJ45

PCB temperature monitor

Yes

Voltage Monitor

Yes

Certification

CE/RED, EAC, ROHS

รับประกัน

2 ปี ตามเงื่อนไขการรับประกัน

เงื่อนไขการ Support สำหรับอุปกรณ์ Mikrotik

Product code

CRS354-48G-4S+2Q+RM

Switching results

Mode

Configuration

1518 byte

512 byte

64 byte

kpps

Mbps

kpps

Mbps

kpps

Mbps

Switching

Non blocking Layer 2 throughput

13,662.2

165,914.0

39,497.2

161,780.5

250,148.8

128,076.2

Switching

Non blocking Layer 2 capacity

13,662.2

331,828.1

39,497.2

323,560.9

250,148.8

256,152.4

Switching

Non blocking Layer 1 throughput

13,662.2

168,100.0

39,497.2

168,100.0

250,148.8

168,100.0

Switching

Non blocking Layer 1 capacity

13,662.2

336,200.0

39,497.2

336,200.0

250,148.8

336,200.0

Ethernet test results

CRS354-48G-4S+2Q+RM

QCA9531 all port test

Mode

Configuration

1518 byte

512 byte

64 byte

kpps

Mbps

kpps

Mbps

kpps

Mbps

Bridging

none (fast path)

37,4

454.2

82,8

339.1

162,5

83.2

Bridging

25 bridge filter rules

33,8

410.5

47,8

195.8

75,6

38.7

Routing

none (fast path)

37,2

451.8

73,3

300.2

144,9

74.2

Routing

25 simple queues

36,4

442.0

52,4

214.6

54,4

27.9

Routing

25 ip filter rules

33,8

410.5

41,4

169.6

41,7

21.4

  • All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  • Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  • Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
