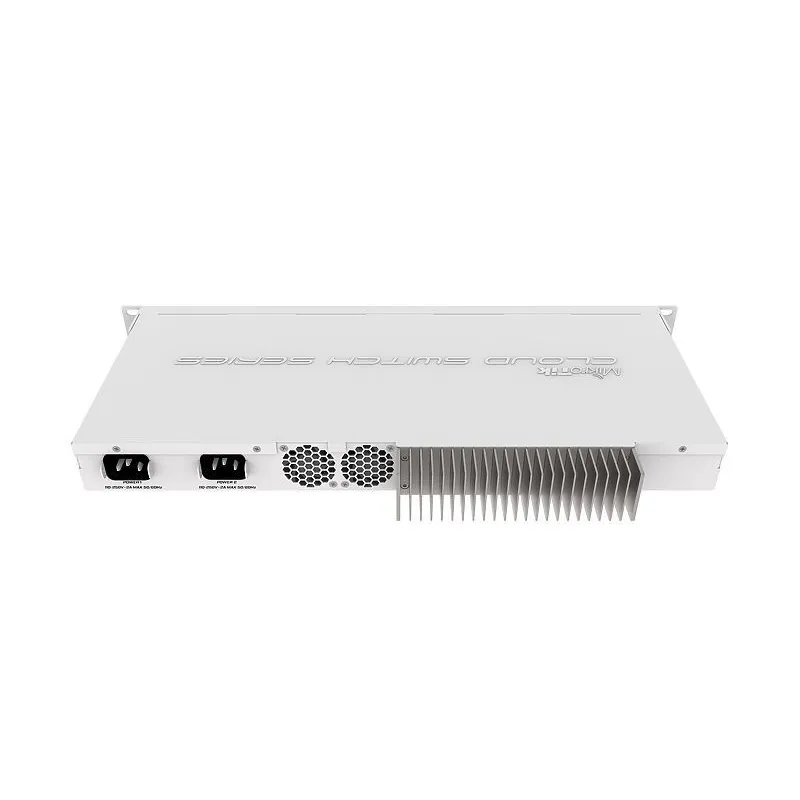

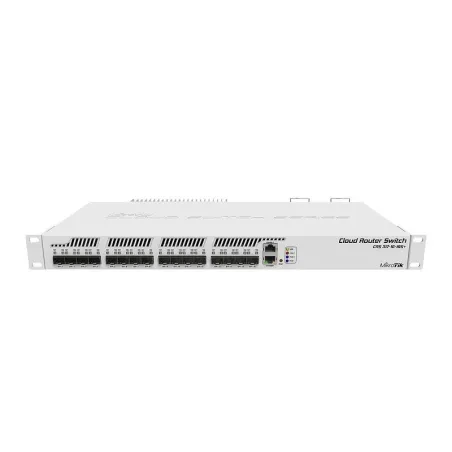

Mikrotik Cloud Router Switch L3 CRS317-1G-16S+RM, 16 Port SFP+ ความเร็ว 10Gbps, 1 Port Lan Gigabit, ROS LV.5, รองรับ L2-L3 Managed Switch, Router
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
เอกสารอ้างอิงเฉพาะ
รวมคู่มือการใช้งาน อุปกรณ์ Mikrotik มากกว่า 200 หัวข้อ
Mikrotik CRS317-1G-16S+RM Datasheet
Mikrotik CRS317-1G-16S+-RM Quick Guide
SFP module compatible list
Product Specification | |
Overview | Mikrotik Cloud Router Switch L3 CRS317-1G-16S+RM, 16 Port SFP+ ความเร็ว 10Gbps, 1 Port Lan Gigabit, ROS LV.5, รองรับ L2-L3 Managed Switch, RouterOS รองรับ hardware-based Spanning Tree Protocol และ Link Aggregation (LACP) |
| Product code | CRS317-1G-16S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX8216 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 443 x 224 x 44 mm |
| License level | 6 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 1 GB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -20°C to 60°C |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 44 W |
| 10/100/1000 Ethernet ports | 1 |
| SFP+ ports | 16 (10 Gigabit) |
| Serial port | RJ45 |
CPU temperature monitor | Yes |
| Certification | CE/RED, EAC, ROHS |
| |
| CRS317-1G-16S+RM | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 13,085.2 | 158,906.4 | 37,828.9 | 154,947.4 | 239,583.3 | 122,666.7 |
| Switching | Non blocking Layer 2 capacity | 13,085.2 | 317,812.7 | 37,828.9 | 309,894.7 | 239,583.3 | 245,333.3 |
| Switching | Non blocking Layer 1 throughput | 13,085.2 | 161,000.0 | 37,828.9 | 161,000.0 | 239,583.3 | 161,000.0 |
| Switching | Non blocking Layer 1 capacity | 13,085.2 | 322,000.0 | 37,828.9 | 322,000.0 | 239,583.3 | 322,000.0 |
| CRS317-1G-16S+RM | 98DX8216B0 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 268.3 | 3258.2 | 361.2 | 1479.5 | 355.2 | 181.9 |
| Bridging | 25 bridge filter rules | 98.4 | 1195.0 | 98.6 | 403.9 | 98 | 50.2 |
| Routing | none (fast path) | 254.4 | 3089.4 | 309.8 | 1268.9 | 315.4 | 161.5 |
| Routing | 25 simple queues | 104.6 | 1270.3 | 104.4 | 427.6 | 104.6 | 53.6 |
| Routing | 25 ip filter rules | 104.6 | 1270.3 | 103.4 | 423.5 | 103.9 | 53.2 |
