Mikrotik hAP ax3 C53UiG+5HPaxD2HPaxD Datasheet
|
Product Specification
|
|
Overview
|

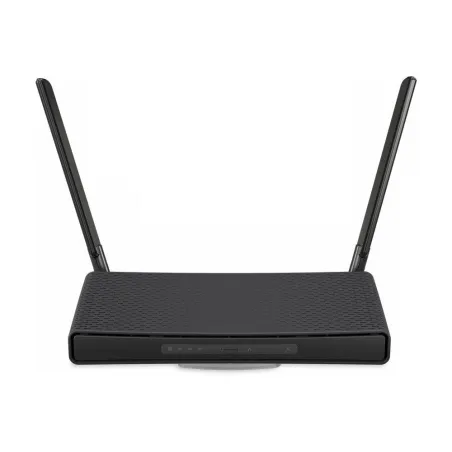

Mikrotik hAP ax3 C53UiG+5HPaxD2HPaxD
CPU Quad-core ARM 64bit RAM 1GB Storage 128 MB
กระจาสัญญาณ WIFI มาตรฐาน WIFI-6 ,พร้อม 4 Port Gigabit และ 1 Port ความเร็ว 2.5G, Port USB 3.0
รองรับ POE In/Out แบบ Passive 24VDC
RouterOS License Level 5
|
|
Details
|
|
Product code
|
C53UiG+5HPaxD2HPaxD
|
|
Architecture
|
ARM 64bit
|
|
CPU
|
IPQ-6010
|
|
CPU core count
|
4
|
|
CPU nominal frequency
|
auto (864 - 1800) MHz
|
|
RouterOS license
|
6
|
|
Operating System
|
RouterOS v7
|
|
Size of RAM
|
1 GB
|
|
Storage size
|
128 MB
|
|
Storage type
|
NAND
|
|
MTBF
|
Approximately 200'000 hours at 25C
|
|
Tested ambient temperature
|
-40°C to 70°C
|
|
Details
|
|
Wireless 2.4 GHz Max data rate
|
574 Mbit/s
|
|
Wireless 2.4 GHz number of chains
|
2
|
|
Wireless 2.4 GHz standards
|
802.11b/g/n/ax
|
|
Antenna gain dBi for 2.4 GHz
|
3.3
|
|
Wireless 2.4 GHz chip model
|
QCN-5022
|
|
Wireless 2.4 GHz generation
|
Wi-Fi 6
|
|
Wireless 5 GHz Max data rate
|
1200 Mbit/s
|
|
Wireless 5 GHz number of chains
|
2
|
|
Wireless 5 GHz standards
|
802.11a/n/ac/ax
|
|
Antenna gain dBi for 5 GHz
|
5.5
|
|
Wireless 5 GHz chip model
|
QCN-5052
|
|
Wireless 5 GHz generation
|
Wi-Fi 6
|
|
WiFi speed
|
AX1800
|
|
Details
|
|
10/100/1000 Ethernet ports
|
4
|
|
Number of 1G Ethernet ports with PoE-out
|
1
|
|
Number of 2.5G Ethernet ports
|
1
|
|
Details
|
|
Number of USB ports
|
1
|
|
USB slot type
|
USB 3.0 type A
|
|
Max USB current (A)
|
1
|
|
Details
|
|
Number of DC inputs
|
2 (DC jack, PoE-IN)
|
|
DC jack input Voltage
|
12-28 V
|
|
Max power consumption
|
38 W
|
|
Max power consumption without attachments
|
15 W
|
|
Cooling type
|
Passive
|
|
PoE in
|
Passive PoE
|
|
PoE in input Voltage
|
18-28 V
|
|
Details
|
|
PoE-out ports
|
Ether 1
|
|
PoE out
|
Passive PoE
|
|
Max out per port output (input 18-30 V)
|
0.625 A
|
|
Max total out (A)
|
0.625 A
|
|
Total output current
|
0.625
|
|
Total output power
|
15
|
|
Details
|
|
Certification
|
CE, FCC, IC, EAC, ROHS
|
|
Details
|
|
Mode button
|
Yes
|
|
|
เงื่อนไขการ Support สำหรับอุปกรณ์ Mikrotik
|
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
27 |
-100 |
| 11MBit/s |
27 |
-94 |
| 6MBit/s |
29 |
-96 |
| 54MBit/s |
27 |
-80 |
| MCS0 |
29 |
-96 |
| MCS7 |
26 |
-75 |
| MCS9 |
24 |
-70 |
| MCS11 |
22 |
-67 |
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
28 |
-96 |
| 54MBit/s |
26 |
-80 |
| MCS0 |
28 |
-96 |
| MCS7 |
25 |
-75 |
| MCS9 |
23 |
-70 |
| MCS11 |
20 |
-67 |
