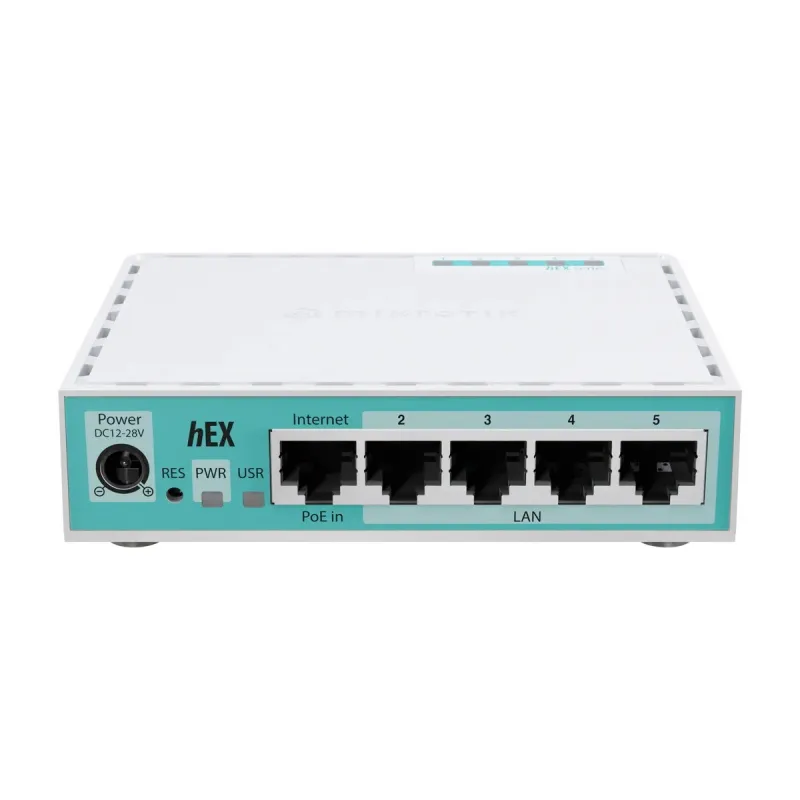

Mikrotik hEX refresh E50UG Router OS Licens LV4, CPU ARM EN7562CT 950MHz RAM 512MB, Storage 128MB, 5 Port Gigabit
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
เอกสารอ้างอิงเฉพาะ
รวมคู่มือการใช้งาน อุปกรณ์ Mikrotik มากกว่า 200 หัวข้อ
Mikrotik RB5009UPr+S+IN Datasheet
The affordable, reliable router you know and trust is now stronger than ever. With the latest refresh, the hEX delivers twice the performance for the same great price. Whether you’re looking for a rock-solid solution for your home or small office, hEX ensures seamless and stable connectivity with a powerful upgrade: we’ve increased the RAM from 256 MB to 512 MB, and replaced the CPU with a modern ARM dual-core workhorse!
Depending on your configuration, the performance increase can reach 100-134%! With 5x Gigabit Ethernet ports, hEX is the most cost-effective way to interconnect your main home or office devices. And you can use the full-sized USB port to add extra storage to stream high-quality media across devices
Mikrotik hEX refresh Product Specification | |
Overview | Mikrotik hEX refresh E50UG Router OS Licens LV4, CPU ARM EN7562CT 950MHz RAM 512MB, Storage 128MB, 5 Port Gigabit |
Specifications | |
| Product code | E50UG |
| Architecture | ARM |
| CPU | EN7562CT |
| CPU core count | 2 |
| CPU nominal frequency | 950 MHz |
| Switch chip model | EN7562CT |
| Dimensions | 113x89x28mm |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 10 W |
| Max power consumption without attachments | 4 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-28 V |
Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Peripherals | |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other | |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |
| E50UG | EN7562CT 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 340.3 | 4132.4 | 389 | 1593.5 | 402.6 | 219 |
| Bridging | 25 bridge filter rules | 190.6 | 2315.1 | 197 | 806.8 | 193.9 | 105.5 |
| Routing | none (fast path) | 300.3 | 3646.6 | 340.5 | 1394.7 | 342.2 | 186.1 |
| Routing | 25 simple queues | 173.1 | 2102.6 | 174.3 | 713.8 | 171.9 | 93.5 |
| Routing | 25 ip filter rules | 117.8 | 1430.3 | 121.6 | 498.1 | 117 | 63.6 |
| E50UG | EN7562CT IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 31.4 | 351.7 | 34.8 | 142.5 | 37.2 | 20.2 |
| 256 tunnels | AES-128-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.5 | 10.1 |
| 256 tunnels | AES-128-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.9 | 10.3 |
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
