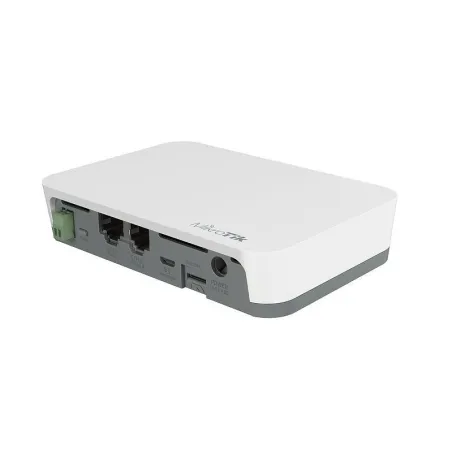

Mikrotik RB924i-2nD-BT5&BG77 KNOT รองรับ iOT, Bluetooth 5.2, WIFI 2.4Ghz, 1 Nano Sim Slot, 2 Port Lan 100Mbps, ROS Lv4.
ชื่อ-นามสกุล
เบอร์โทรศัพท์ ขออนุญาติเป็นเบอร์ที่ทางร้าน และ บริษัทขนส่งสามารถติดต่อได้สะดวกครับ
Email Address
รายละเอียดที่อยู่จัดส่งสินค้า
วิธีการจัดส่งสินค้า
สอบถามรายละเอียด/ รายการสินค้าเพิ่มเติม ส่วนชื่อสินค้าในหน้านี้ จะถูกส่งไปพร้อมกับข้อมูลครับ
ทางร้านจะทำใบเสนอราคาเป็น pdf โดยจะส่งไปทาง email ที่ทางลูกค้าลงข้อมูลไว้ครับ
ชื่อบริษัท, TAX ID, ที่อยู่ สำหรับออกใบกำกับภาษี เว้นว่างได้ครับ ในกรณีใช้ ที่อยู่เดียวกับช่อง ที่อยู่จัดส่งสินค้า
(Option)ไฟล์รูปนามบัตร, รูปชื่อ-ที่อยู่ บริษัท, ไฟล์รายการสินค้า รองรับ .jpg .gif .png .doc .xls .xlsx
รวมคู่มือการใช้งาน อุปกรณ์ Mikrotik มากกว่า 200 หัวข้อ
Mikrotik RB924i-2nD-BT5&BG77 Datasheet
Application examples
Product Specification | |
Overview | Mikrotik RB924i-2nD-BT5&BG77 KNOT รองรับ iOT, Bluetooth 5.2, WIFI 2.4Ghz, 1 Nano Sim Slot, 2 Port Lan 100Mbps, MicroUSB type AB รองรับ POE In/Out 802.3af RouterOS License Level 4 |
Product code | RB924i-2nD-BT5&BG77 |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 122 x 87 x 26 mm |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
MicroUSB input Voltage | 5-5 V |
Number of DC inputs | 3 (DC jack, MicroUSB, PoE-IN) |
DC jack input Voltage | 12-57 V |
Max power consumption | 18 W |
Max power consumption without attachments | 5 W |
FAN count | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 12-57 V |
PoE-out ports | Ether2 |
PoE out | 802.3af/at |
Total output power | 12W |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 1.5 |
Wireless 2.4 GHz chip model | QCA9531 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
10/100 Ethernet ports | 2 |
Number of SIM slots | 1 Modem (Nano SIM) |
Serial console port | RS485 |
Number of USB ports | 1 |
USB slot type | microUSB type AB |
Max USB current (A) | 1 |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Bluetooth version | 5.2 |
Bluetooth RF connector type | uUFL |
GPS RF connector type | SMA |
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP20 |
เนื่องจากอุปกรณ์ Mikrotik สามารถที่จะ Config ได้หลากหลายรูปแบบ ในบางปัญหา ทางร้านจะไม่สามารถหาวิธีแก้ไขให้ได้ รวมถึง RouterOS ที่มีการ Update อยู่บ่อยครั้ง ทางร้านขอสงวนสิทธิ์ในการบริการหลังการขายและ Support ตามนี้ครับ
อุปกรณ์ Mikrotik Router (CRS1xx, CRS2xx, RB9xx, hEX, RB4xx, RB2011, RB7xx, hAPxxx, CCRxxx, RB3xxx, RB600, RB8xxx, RB11xx, RB12xx, CRS3xxxx, RB3011)
Config ระบบ Hotspot Authenticate , ค่าเบื้องต้นในการเชื่อมต่อ Internet , Hotspot Server, NAT Firewall, IP Address, DHCP Client/Server, Bridge Interface, PPPoE Client, User-Manager, Radius, NTP, Backup Config
ในกรณีที่ทำระบบ Hotspot และ ทางลูกค้าต้องการติดตั้ง SSL Certificate ทางร้านจะมีไฟล์ SSL ส่งให้ และทางลูกค้าทำการติดตั้งเอง ตามในหัวข้อนี้ครับ วิธีติดตั้ง SSL Certificate บน Mikrotik โดยจะมีอายุ 1 ปี (ปกติทางร้านจะต่อทุกปีครับ แต่พอครบปี ไฟล์เดิมจะใช้ไม่ได้ ลูกค้าต้องทำการ Import File เข้าไปใหม่)
กรณีที่ลูกค้าต้องการใช้ Mikrotik สำหรับทำ Loadbalance แล้วทำระบบ Hotspot ,ทำ VLAN แยก SSID แต่ละชื่อ WIFI , Forward Port เพื่อเชื่อมต่อจากภายนอกมายังอุปกรณ์ภายในระบบ Network ทางร้านขออนุญาติคิดค่าใช้จ่ายเพิ่มเติมตามด้านล่างนี้ครับ
