Product Specification |
|
Overview |

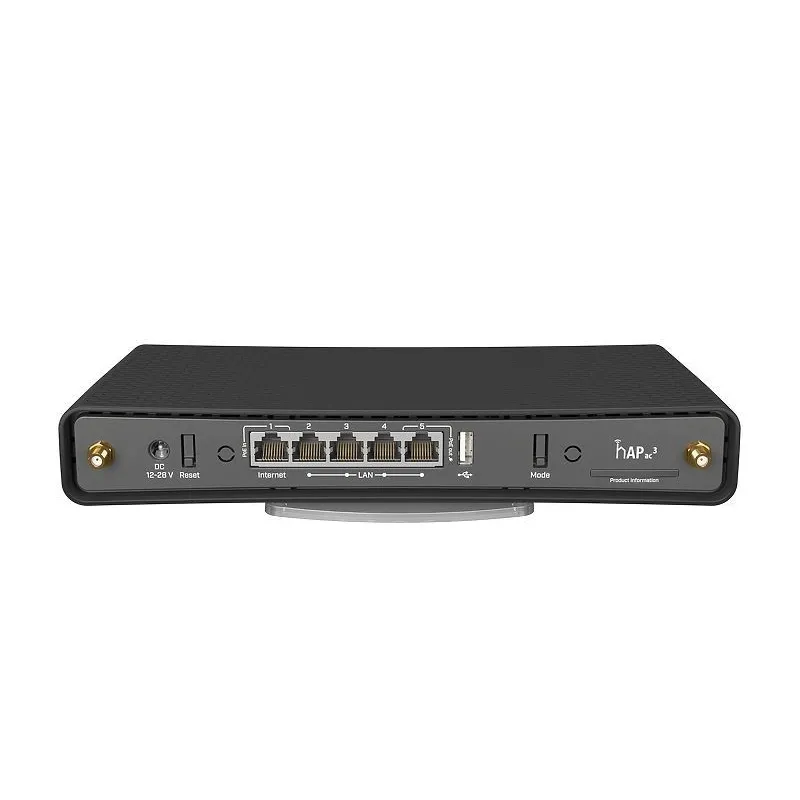

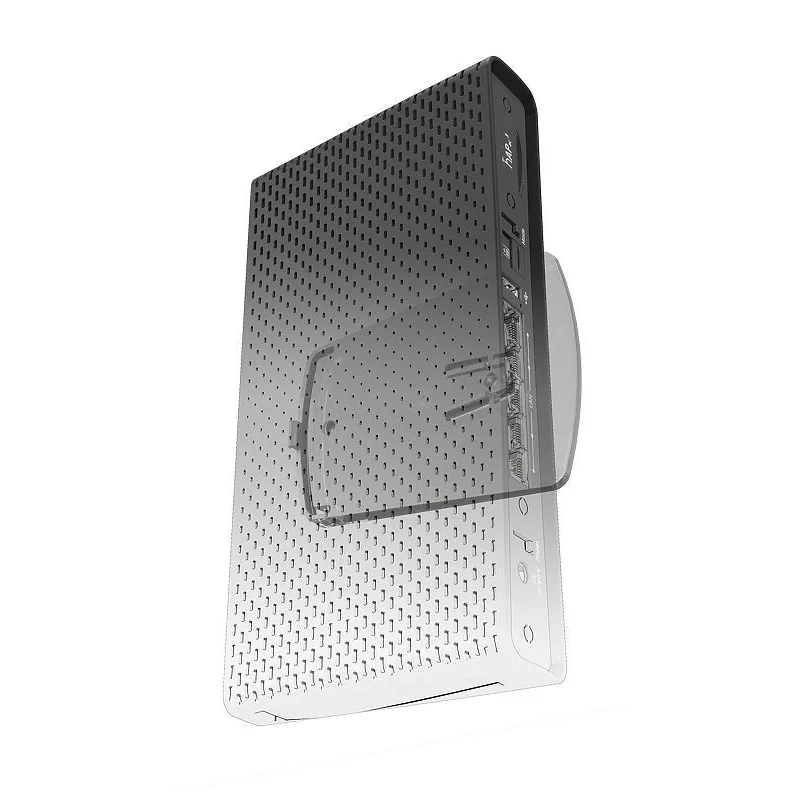

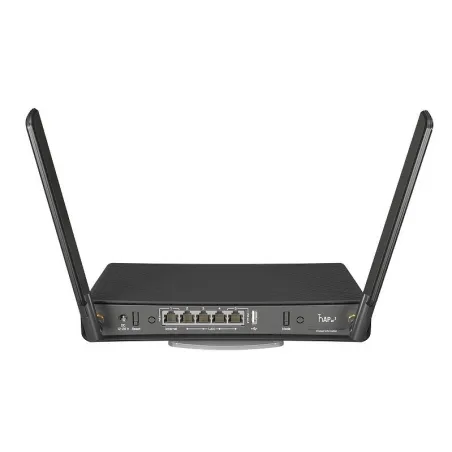

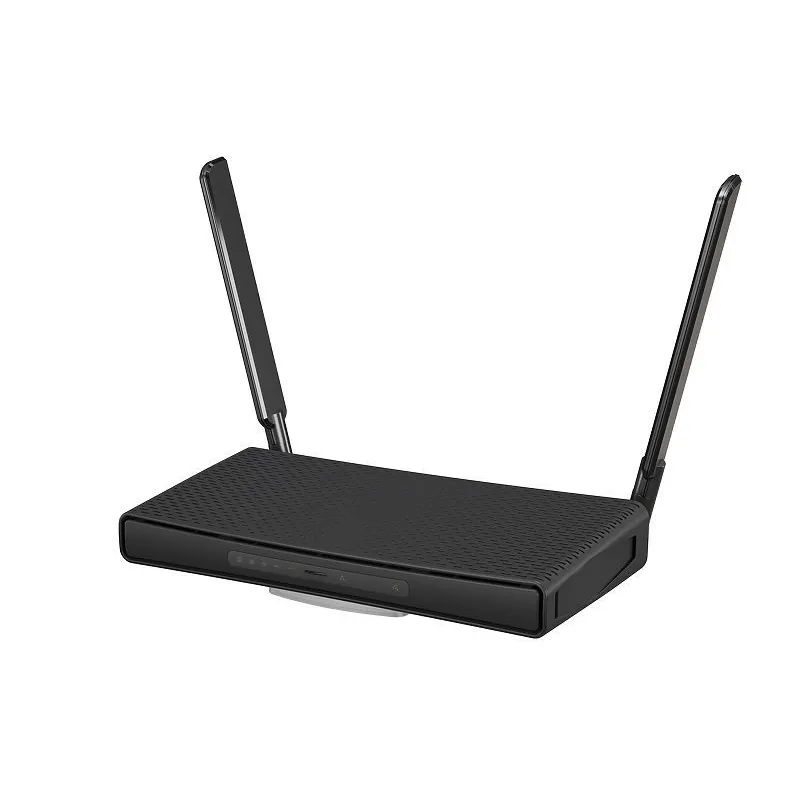

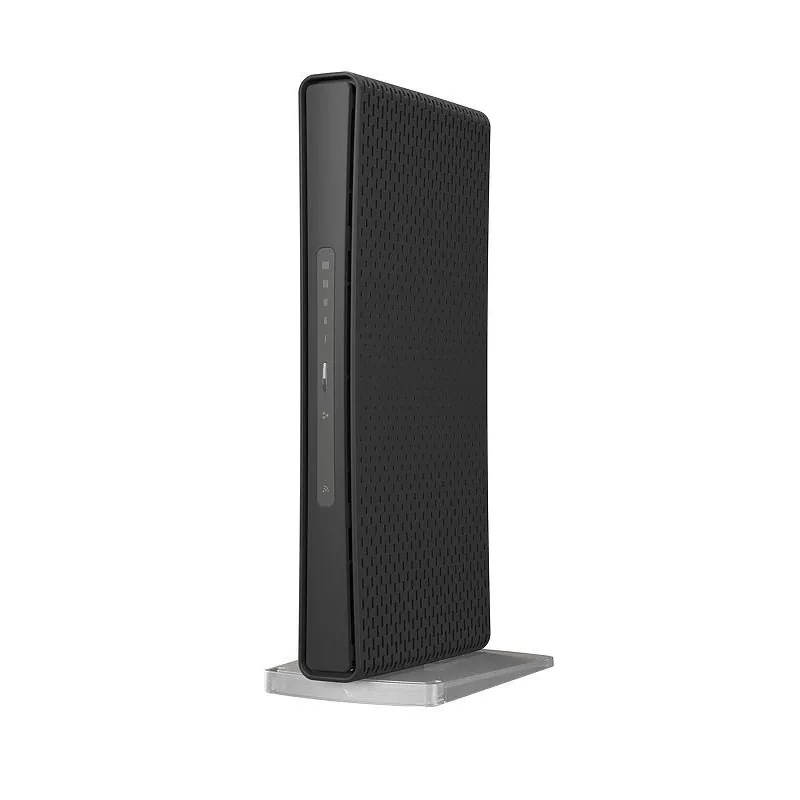

Mikrotik Router hAP ac3 (RBD53iG-5HacD2HnD), CPU ARM 32Bit 4 Core 716M, Ram 256MB, ROS LV.5, 5 Port Gigabit พร้อม Wireless มาตรฐาน 802.11ac |
Product code |
RBD53iG-5HacD2HnD |
Architecture |
ARM 32bit |
CPU |
IPQ-4019 |
CPU core count |
4 |
CPU nominal frequency |
716 MHz |
IPsec hardware acceleration |
Yes |
Dimensions |
251 x 129 x 39 mm |
RouterOS license |
4 |
Size of RAM |
256 MB |
Storage size |
128 MB |
Storage type |
NAND |
MTBF |
Approximately 100'000 hours at 25C |
Tested ambient temperature |
-40°C to 70°C |
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz standards |
802.11b/g/n |
Antenna gain dBi for 2.4 GHz |
3 |
Wireless 2.4 GHz chip model |
IPQ-4019 |
Wireless 2.4 GHz generation |
Wi-Fi 4 |
Wireless 5 GHz Max data rate |
867 Mbit/s |
Wireless 5 GHz number of chains |
2 |
Wireless 5 GHz standards |
802.11a/n/ac |
Antenna gain dBi for 5 GHz |
5.5 |
Wireless 5 GHz chip model |
IPQ-4019 |
Wireless 5 GHz generation |
Wi-Fi 5 |
AC speed |
AC1200 |
10/100/1000 Ethernet ports |
5 |
Number of 1G Ethernet ports with PoE-out |
1 |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB type A |
Max USB current (A) |
1 |
PoE in |
Passive PoE |
PoE in input Voltage |
18-28 V |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
12-28 V |
Max power consumption |
30 W |
Max power consumption without attachments |
12 W |
FAN count |
Passive |
PoE-out ports |
Ether5 |
PoE out |
Passive PoE |
Max out per port output (input < 30 V) |
0.5 A |
Max total out (A) |
0.5 A |
Certification |
CE, FCC, IC, EAC, ROHS |
Mode button |
Yes |
รับประกัน |
2 ปี |
|
Wireless specifications
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
---|---|---|
1MBit/s |
25 |
-100 |
11MBit/s |
25 |
-94 |
6MBit/s |
26 |
-96 |
54MBit/s |
23 |
-78 |
MCS0 |
26 |
-96 |
MCS7 |
22 |
-73 |
5 GHz |
Transmit (dBm) |
Receive Sensitivity |
---|---|---|
6MBit/s |
26 |
-96 |
54MBit/s |
22 |
-80 |
MCS0 |
26 |
-96 |
MCS7 |
21 |
-75 |
MCS9 |
19 |
-70 |
Ethernet test results
RBD53iG-5HacD2HnD |
IPQ-4019 1G all port test |
||||||
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
Bridging |
none (fast path) |
162,5 |
1973.4 |
469,9 |
1924.7 |
1488,4 |
762.1 |
Bridging |
25 bridge filter rules |
162,5 |
1973.4 |
351,2 |
1438.5 |
352,1 |
180.3 |
Routing |
none (fast path) |
162,5 |
1973.4 |
469,9 |
1924.7 |
1488,4 |
762.1 |
Routing |
25 simple queues |
162,5 |
1973.4 |
468,6 |
1919.4 |
493,4 |
252.6 |
Routing |
25 ip filter rules |
162,5 |
1973.4 |
222,8 |
912.6 |
227,4 |
116.4 |
IPsec test results
RBD53iG-5HacD2HnD |
IPQ-4018 IPsec throughput |
||||||
Mode |
Configuration |
1400 byte |
512 byte |
64 byte |
|||
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
Single tunnel |
AES-128-CBC + SHA1 |
37.9 |
424.5 |
59 |
241.7 |
61.6 |
31.5 |
256 tunnels |
AES-128-CBC + SHA1 |
36 |
403.2 |
38.5 |
157.7 |
39.8 |
20.4 |
256 tunnels |
AES-128-CBC + SHA256 |
36 |
403.2 |
38.5 |
157.7 |
39.8 |
20.4 |
256 tunnels |
AES-256-CBC + SHA1 |
34.4 |
385.3 |
37.9 |
155.2 |
39.8 |
20.4 |
256 tunnels |
AES-256-CBC + SHA256 |
34.4 |
385.3 |
37.9 |
155.2 |
39.8 |
20.4 |
