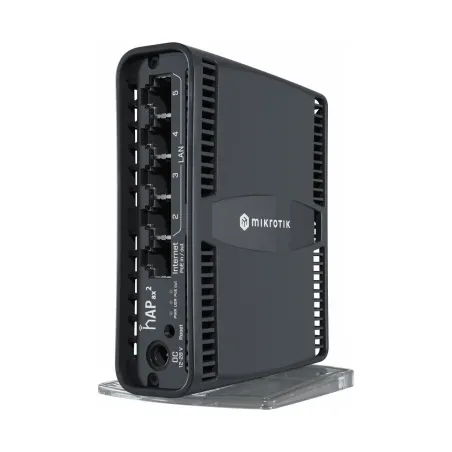

Mikrotik Router hAP ax2, CPU 4 Core 864MHz, Ram 1GB, ROS LV.4 WIFI6

MikroTik
Mikrotik Router hAP ac2 (C52iG-5HaxD2HaxD-TC), CPU ARM 64Bit 4 Core 864MHz, Ram 1GB, ROS LV.4, 5 Port Gigabit, WIFI6 AX1800, IPsec hardware
฿3,800.00
ยังไม่ได้รวมภาษี
จำนวน

รายละเอียด

รวมคู่มือการใช้งาน อุปกรณ์ Mikrotik มากกว่า 200 หัวข้อ

Mikrotik hAP ax2 Datasheet

Product Specification

Overview

Mikrotik Router hAP ac2 (C52iG-5HaxD2HaxD-TC), CPU ARM 64Bit 4 Core 864MHz, Ram 1GB, ROS LV.4, 5 Port Gigabit, WIFI6 AX1800, IPsec hardware

Product code

C52iG-5HaxD2HaxD-TC

Architecture

ARM 64bit

CPU

IPQ-6010

CPU core count

4

CPU nominal frequency

864 MHz

Switch chip model

IPQ-6010

RouterOS license

4

Operating System

RouterOS (v7 only)

Size of RAM

1 GB

Storage size

128 MB

Storage type

NAND

MTBF

Approximately 100'000 hours at 25C

Tested ambient temperature

-40°C to 50°C

IPsec hardware acceleration

Yes

Wireless 5 GHz Max data rate

1200 Mbit/s

Wireless 5 GHz number of chains

2

Wireless 5 GHz standards

802.11a/n/ac/ax

Antenna gain dBi for 5 GHz

4

Wireless 5 GHz chip model

QCN-5052

Wireless 5 GHz generation

Wi-Fi 6

Wireless 2.4 GHz Max data rate

574 Mbit/s

Wireless 2.4 GHz number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n/ax

Antenna gain dBi for 2.4 GHz

4.5

Wireless 2.4 GHz chip model

QCN-5022

Wireless 2.4 GHz generation

Wi-Fi 6

WiFi speed

AX1800

10/100/1000 Ethernet ports

5

Number of 1G Ethernet ports with PoE-out

1

Number of DC inputs

2 (DC jack, PoE-IN)

DC jack input Voltage

12-28 V

Max power consumption

27 W

Max power consumption without attachments

12 W

Cooling type

Passive

PoE in

Passive PoE

PoE in input Voltage

18-28 V

PoE-out ports

Ether 1

PoE out

Passive PoE

Max out per port output (input 18-30 V)

600 mA

Max total out (A)

0.6 A

Total output current

0.6

Total output power

16.8W

Certification

CE, FCC, IC, EAC, ROHS

IP

20

CPU temperature monitor

Yes

Mode button

Yes

รับประกัน

1 ปี

เงื่อนไขการ Support สำหรับอุปกรณ์ Mikrotik



Ethernet test results

C52iG-5HaxD2HaxD-TCIPQ-6010 all port test
ModeConfiguration1518 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Bridgingnone (fast path)216.62630.4591.52422.81366.2743.2
Bridging25 bridge filter rules2162622.7342.51402.7347188.8
Routingnone (fast path)216.62630.4590.92420.31212.6659.7
Routing25 simple queues215.72620327.61341.8350.3190.6
Routing25 ip filter rules216.22625.1222.9912.9225.1122.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

C52iG-5HaxD2HaxD-TCIPQ-6010 IPsec throughput
ModeConfiguration1400 byte512 byte64 byte
kppsMbpskppsMbpskppsMbps
Single tunnelAES-128-CBC + SHA178.4878.191.9376.493.647.9
256 tunnelsAES-128-CBC + SHA150.1561.155.5227.358.630
256 tunnelsAES-128-CBC + SHA2565056055.4226.958.630
256 tunnelsAES-256-CBC + SHA149.4553.354.8224.558.630
256 tunnelsAES-256-CBC + SHA25649.4553.355225.358.630
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results



The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

รายละเอียดสินค้า
5 รายการ

การบริการหลังการขายอุปกรณ์ Mikrotik

เนื่องจากอุปกรณ์ Mikrotik สามารถที่จะ Config ได้หลากหลายรูปแบบ ในบางปัญหา ทางร้านจะไม่สามารถหาวิธีแก้ไขให้ได้ รวมถึง RouterOS ที่มีการ Update อยู่บ่อยครั้ง ทางร้านขอสงวนสิทธิ์ในการบริการหลังการขายและ Support ตามนี้ครับ

อุปกรณ์ Mikrotik Router (CRS1xx, CRS2xx, RB9xx, hEX, RB4xx, RB2011, RB7xx, hAPxxx, CCRxxx, RB3xxx, RB600, RB8xxx, RB11xx, RB12xx, CRS3xxxx, RB3011)

Config ระบบ Hotspot Authenticate , ค่าเบื้องต้นในการเชื่อมต่อ Internet , Hotspot Server, NAT Firewall, IP Address, DHCP Client/Server, Bridge Interface, PPPoE Client, User-Manager, Radius, NTP, Backup Config

ในกรณีที่ทำระบบ Hotspot และ ทางลูกค้าต้องการติดตั้ง SSL Certificate ทางร้านจะมีไฟล์ SSL ส่งให้ และทางลูกค้าทำการติดตั้งเอง ตามในหัวข้อนี้ครับ  วิธีติดตั้ง SSL Certificate บน Mikrotik โดยจะมีอายุ 1 ปี (ปกติทางร้านจะต่อทุกปีครับ แต่พอครบปี ไฟล์เดิมจะใช้ไม่ได้ ลูกค้าต้องทำการ Import File เข้าไปใหม่)

บริการเพิ่มเติม

กรณีที่ลูกค้าต้องการใช้ Mikrotik สำหรับทำ Loadbalance แล้วทำระบบ Hotspot ,ทำ VLAN แยก SSID แต่ละชื่อ WIFI , Forward Port เพื่อเชื่อมต่อจากภายนอกมายังอุปกรณ์ภายในระบบ Network   ทางร้านขออนุญาติคิดค่าใช้จ่ายเพิ่มเติมตามด้านล่างนี้ครับ

  • กรณีเป็นอุปกรณ์ที่ซื้อจากทางร้าน คิดราคา Config Mikrotik 3,000 บาท ส่วนอุปกรณ์อื่นๆ เช่น Managed Switch, Access Point ทางร้าน config ให้ไม่มีค่าใช้จ่ายครับ
  • กรณีอุปกรณ์ที่ไม่ได้ซื้อจากทางร้าน รบกวนแจ้งรายละเอียดและสอบถามราคากับทางร้านก่อนครับ

เงื่อนไข

  • แจ้งรายละเอียดที่ต้องการให้ Config ให้ครบถ้วนนะครับ กรณีต้องการ Config เพิ่มเติมหลังจากติดตั้งเรียบร้อย ทางร้านขออนุญาติคิดค่าใช้จ่ายเพิ่มเติม
  • การ Support สำหรับอุปกรณ์ Mikrotik ระยะเวลา 6 เดือน ส่วนอุปกรณ์อื่นๆตามระยะเวลาการรับประกันของสินค้าครับ
  • กรณีที่ไม่สามารถ Config ในรูปแบบ Remote Config ได้ ทางลูกค้าต้องส่งอุปกรณ์มาที่ร้านเพื่อให้ทางร้าน config ให้ครับ โดยมีค่าจัดส่งแยกต่างหาก


เงื่อนไขการรับประกัน

  • อุปกรณ์ Mikrotik รับประกันตาม เงื่อนไขการรับประกันสินค้า เป็นระยะเวลา 2 ปี Adapter รวมถึง POE จะรับประกันระยะเวลา 3 เดือน
  • การ Config อุปกรณ์ Mikrotik ในรูปแบบต่างๆ ที่ทางร้านทำไว้ใน Webboard ลูกค้าจะต้องมีความเข้าใจในหลักการทำงานก่อนทำการ Config ซึ่งทางร้านจะไม่ Support ในส่วนนี้
  • กรณีลูกค้าทำการแก้ไข Config เพิ่มเติมไม่ถูกต้องจนใช้งานไม่ได้ , ลืม Password, Router OS มีปัญหาไม่สามารถ Boot ได้ และ ยังอยู่ในช่วงระยะเวลาประกัน ให้ส่งอุปกรณ์กลับมาที่ร้านเพื่อทำการ Reset และ Config ใหม่ ทางร้านขอคิดค่าจัดส่งสินค้ากลับตามจริง กรณีสินค้าหมดประกัน คิดค่าบริการ 500 บาท ต่อครั้ง
  • การ Remote ทาง TeamViewer ทางร้านขอสงวนสิทธิ์ในการตัดสินใจว่าจะทำการ Remote ได้หรือไม่ได้
  • กรณีโดน Hack อุปกรณ์ Mikrotik ทำให้ไม่สามารถใช้งานได้ปกติ รวมถึงมีการ Disable การทำ Reset หรือทำ Netinstall ได้ จะไม่ถือเป็นความรับผิดชอบของทางร้านครับ
