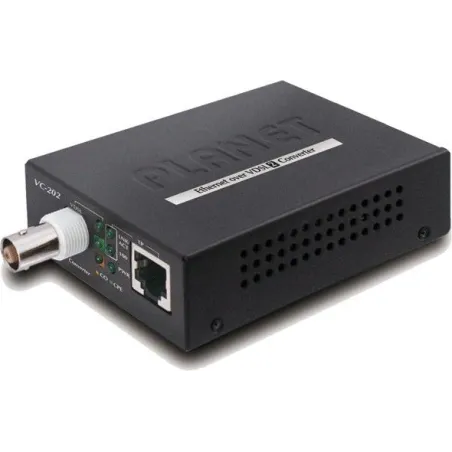

Overview | Planet VC-202A อุปกรณ์ Media Converter Ethernet over Coaxial Extender สำหรับแปลงสัญญาณจากสาย UTP 10/100Base-TX เป็นสาย Coaxial เพื่อเพิ่มระยะทางการเชื่อมต่อเครือข่าย ให้ได้ระยะไกลเกินความยาวที่จำกัดของสาย UTP ซึ่งได้สูงสุดแค่ 100 เมตร โดยจะเพิ่มระยะส่งได้ถึง 0.2 - 1.6 กิโลเมตร |
Hardware Specifications |
Ports | • 10/100Base-TX: 1 RJ-45, auto-negotiation and auto-MDI / MDI-X
• Coaxial: 1 BNC, female connector |
DIP Switch | 4 position DIP switch |
Functionality | • CO / CPE mode select
• Selectable fast and interleaved mode
• Selectable target Band Plan
• Selectable target SNR mode
|
Encoding | •DMT (Discrete Multi-Tone) line coding
?- ITU-T G.997.1
?- ITU-T G.993.1
?- ITU-T G.993.2 (Profile 17a Support)
|
LED Indicators | • One Power
• 3 for Coaxial (BNC):
?- Green, LNK
?- Green, CO mode
?- Green, CPE mode
• 2 for per RJ-45 10/100Base-TX port
?- Green, LNK / ACT
?- Green, Speed
|
Cabling | • Ethernet : 10Base-T: 2-pair UTP Cat.3, 4 and 5 up to 100m (328ft)
• Ethernet : 100Base-TX: 2-pair UTP Cat.5, 5e and 6 up to 100m (328ft)
• Coaxial Cable: 50ohm, RG58A / U, RG58C / U, RG58 / U or equivalent; 75ohm, RG-6 (Distance up to 3.0km)
|
Performance | Asymmetric:
?200m ->100/65Mbps
?400m ->100/64Mbps
?600m ->100/59Mbps
?800m ->100/53Mbps
?1000m -> 94/44Mbps
?1200m -> 84/36Mbps
?1400m -> 74/28Mbps
?1600m -> 66/19Mbps
?1800m -> 60/14Mbps
?2000m -> 44/15Mbps
?2200m -> 35/12Mbps
?2400m -> 32/10Mbps
?2600m -> 29/8Mbps
?2800m -> 27/6Mbps
?3000m -> 25/5Mbps
Symmetric:
?200m ->99.7/100Mbps
?400m ->100/100Mbps
?600m -> 86/91Mbps
?800m -> 79/80Mbps
?1000m -> 69/66Mbps
?1200m -> 60/52Mbps
?1400m -> 51/41Mbps
?1600m -> 45/36Mbps
?1800m -> 40/29Mbps
?2000m -> 27/26Mbps
?2200m -> 23/24Mbps
?2400m -> 22/21Mbps
?2600m -> 20/18Mbps
?2800m -> 18/15Mbps
?3000m -> 17/13Mbps |
Dimensions (W x D x H) | 97 x 70 x 26 mm |
Weight | 0.2 kg |
Power Requirements | 5V DC 2A |
Power Consumption | 6.3 watts / 21BTU (maximum) |
Standard Conformance |
Regulation Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x full duplex pause frame flow-control
ITU-T
?- G.993.1
?- G.997.1
?- G.993.2 (Profile 17a Support)
|
Environment |
Operating | Temperature: 0 ~ 50 degrees C
Humidity: 5~90%, relative humidity (non-condensing)
|
Storage | Temperature: -10~70 degrees C
Humidity: 5~90%, relative humidity (non-condensing) |
