แบรนด์: Uniview
ต้องการรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet
คู่มือการติดตั้ง NVR และแนะนำการเซตตั้งค่าใช้งานเบื้องต้น (ภาษาไทย)
คู่มือการตั้งค่าและดูกล้องผ่าน WebUI และคู่มือ APP สำหรับมือถือ และ Tablet
Tool สำหรับค้นหากล้องในวง LAN
Product Specification |
|
Overview |

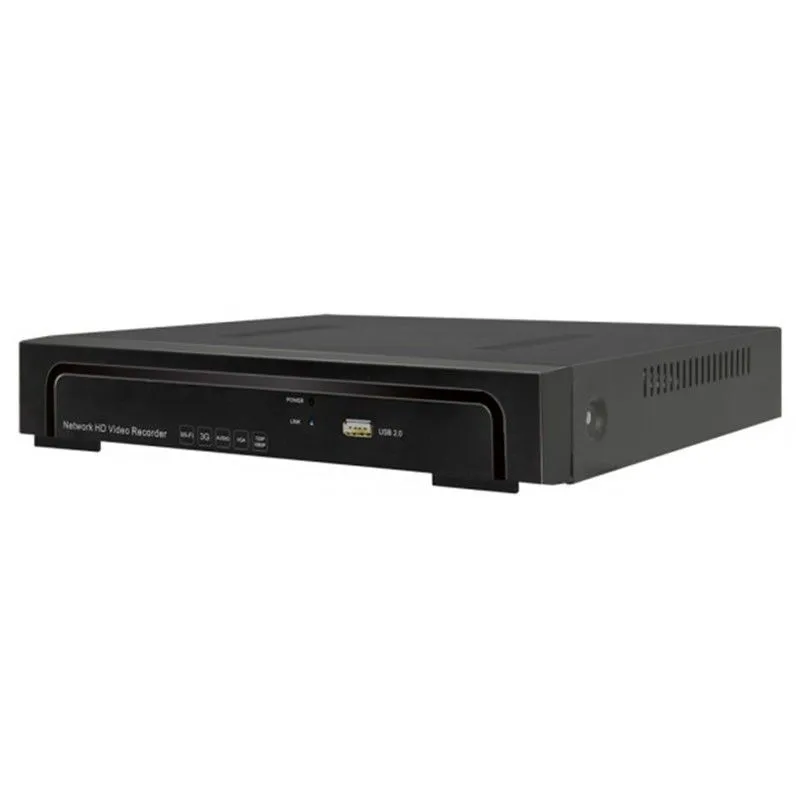

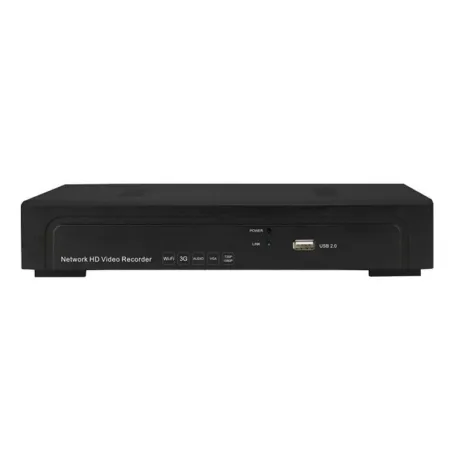

Plenty NVR4CH อุปกรณ์ Network Video Recorder ความชัดระดับ HD 720 บีบอัดภาพมาตรฐาน H.264 รองรับกล้อง IP Camera มาตรฐาน ONVIF เชื่อมต่อได้ถึง 4CH.(กล้อง 4 ชุด) เหมาะสำหรับเก็บบันทึกภาพจากกล้องแบบ IP แทนระบบ Computer |
คุณสมบัติ |
|
Video Parameters |
|
Input |
4 channel HD 720P synchronous input |
Definition |
1280x720,352X288,640x480 |
Format |
H.264/MPEG |
Compatibility |
ONVIF 2.4, 3rd Party IP Camera, VMS |
Record Parameters |
|
Input |
4 channel HD video input or H.264 and MJPEG synchronous record |
Recording Storage |
Local HDD, Network |
HDD Max Capacity |
1 shelf, support 3TB SATA II disk |
Recording Mode |
Manual, Full Time, Scheduled, Motion Detection, Alarm Event |
Playback Quality |
4 CH playback in 720P 1 CH playback in 1080P |
Backup Way |
By USB flash drive, Mobile hard disk, USB DVD-RW and FTP |
Playback |
Start, Pause, Stop, Time Bar, Single Frame, Accelerated Forward, Accelerated Playback |
Software |
|
Mobile Phone |
Apple and Android Phone (MEYE App) |
Browser |
Support Internet Explorer |
Pan Control |
Pan control, leveled authority, preset cruise, mouse control |
Cruise |
Cruise route, cruise plan, manually cruise |
Image Motion Detection |
Each screen can set mutiple detection areas and set 6-level sensitivity(IPC Support ) |

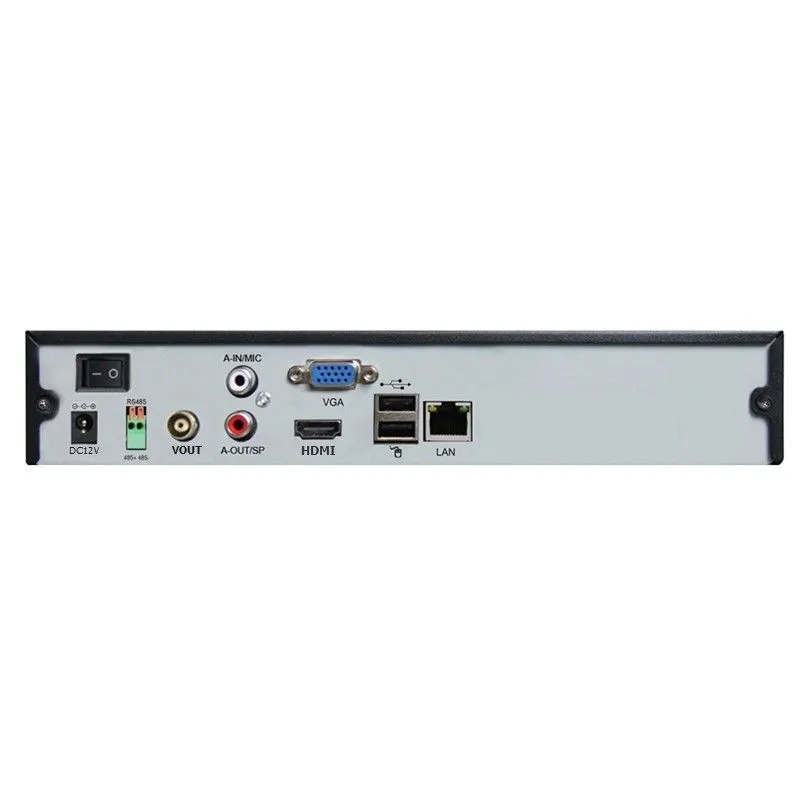

Communication |
|
Ethernet |
One 10M/100M/1000M Base-T self-adjustable,RJ45 outlet |
PTZ Port |
One RS458 |
USB Port |
3 x USB 2.0 ( One on front panel, Two on rear panel ) |
HDMI Port |
One HDMI outlet, support 1920x1080 TV |
VGA Port |
One VGA outlet (DB15) |
Audio Port |
One audio input, one audio output |
HDD Port |
One SATA II 3.5" |
Hardware Parameters |
|
Power Supply |
DC 12V 2.6A |
Power Consumption |
Less than 25W ( not included HDD ) |
Working Temperature |
0?~+ 45? |
Working Humidity |
20% ~ 80%(not condensed ) |
Inventory Temperature |
-40?~+ 70? |
Inventory Humidity |
5% ~ 95%(not condensed ) |
Dimension (H x W x D) |
Machine Size = 260mm x 220mm x 43mm Size After Pack = 355mm x 255mm x 88.5mm |
Weight |
Net Machine Weight <3kg |
Others |
|
Chassis Type |
Standard 1U Chassis |
Operating System |
Embedded LINUX operating system |
Dual Stream |
Each channel can set main stream and sub stream |
Region Cover |
Every channel can set 4 cover regions |
Operation Way |
Mouse USB |
Local Login |
Username & Password |
Installation Way |
Desktop Installation |
Language |
Dutch, English, Chinese, French, German, Italian, Polish, Arabic, Portuguese, Russian, Spanish, Thai |
Package & Warranty |
|
Certification |
CE, FCC, ROHS |
Warranty |
Limited 1-year Warranty |
Packing List |
NVR 4CH X 1 User Manual X 1 DC Power Supply X 1 Manual & Utility CD X 1 Screws X 1 Set Mouse USB X 1 |
Warrantyr |
1 ปี |
|
