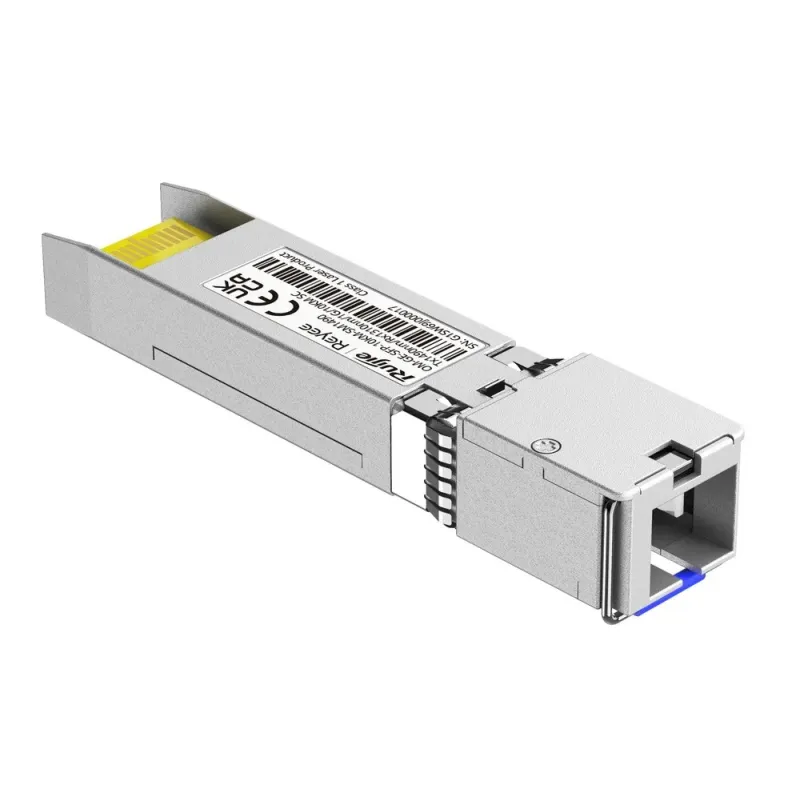

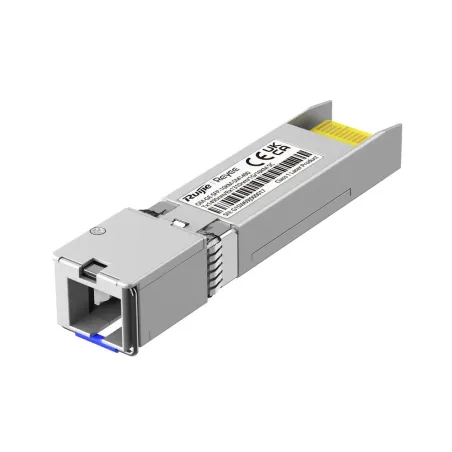

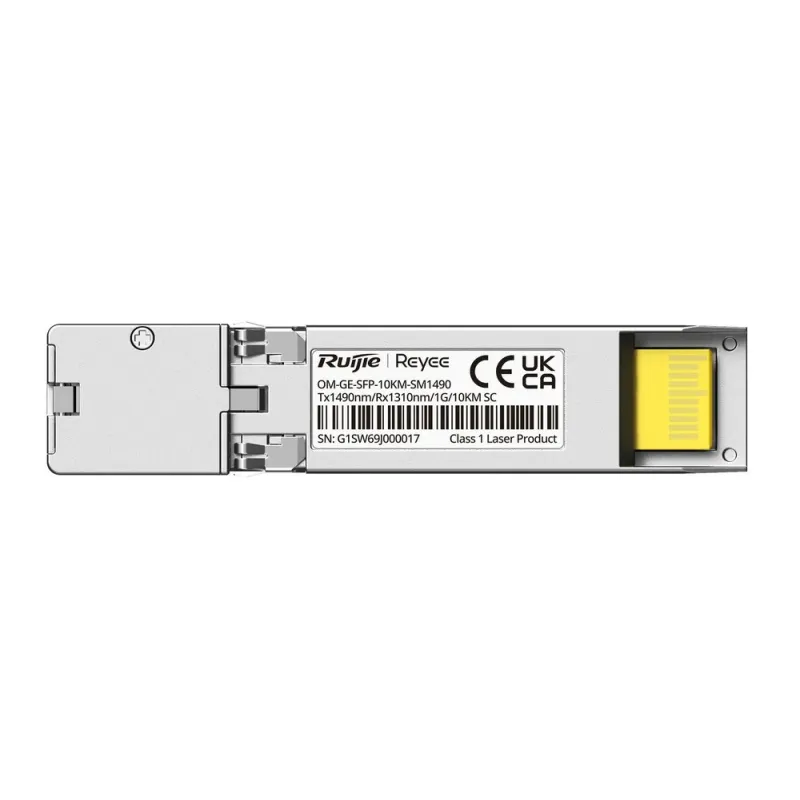

OM-GE-10KM-SFP-SM1490 Reyee e-Lighten Optical Transceiver

Product Specification

Overview

Reyee OM-GE-10KM-SFP-SM1490 e-Lighten Optical Transceiver Gigabit single-fiber,single-mode Ethernet optical transceiver, หัวต่อแบบ SC Connector, Wavelength 1490nm/1310nm, ระยะทางสูงสุด 10km

Operating Voltage

3.14 V to 3.46 V

Operating Temperature

0°C to 70°C (32°F to 158°F)

Operating Humidity

5％ to 85％

Rx Wavelength

1290 nm to 1330 nm

Rx Power

–32 to –12 dBm

Receiver Sensitivity

–32 dBm

Max. Power Consumption

1.5 W

Storage Temperature

–40°C to +85°C (–40°F to +185°F)

Tx Wavelength

1480 nm to 1500 nm

Tx Power

3 to 7 dBm

Weight

0.035 kg (0.08 lbs.)

Tx Rate

1.25 Gbps

ประกัน

ประกันศูนย์ Ruijie Thailand 3 ปี
