Product Specification |

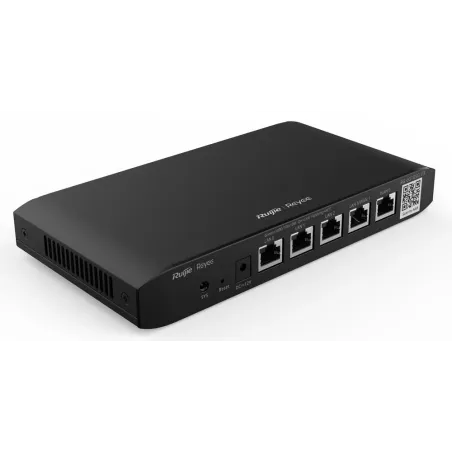

Overview | Reyee RG-EG105G-V3 Cloud Managed Router 2 Wan, 4 Port Gigabit รองรับ 100 Concurrent users, Throughput 600Mbps, IPSec VPN 8 Tunnels, ทำ Captive Portal รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ ** ข้อแตกต่างระหว่าง RG-EG105G V2 และ V3
V3 จะเพิ่ม Flash Memory เป็น 32MB และรองรับ Internet ได้ 1Gbps (Turbo Mode) |

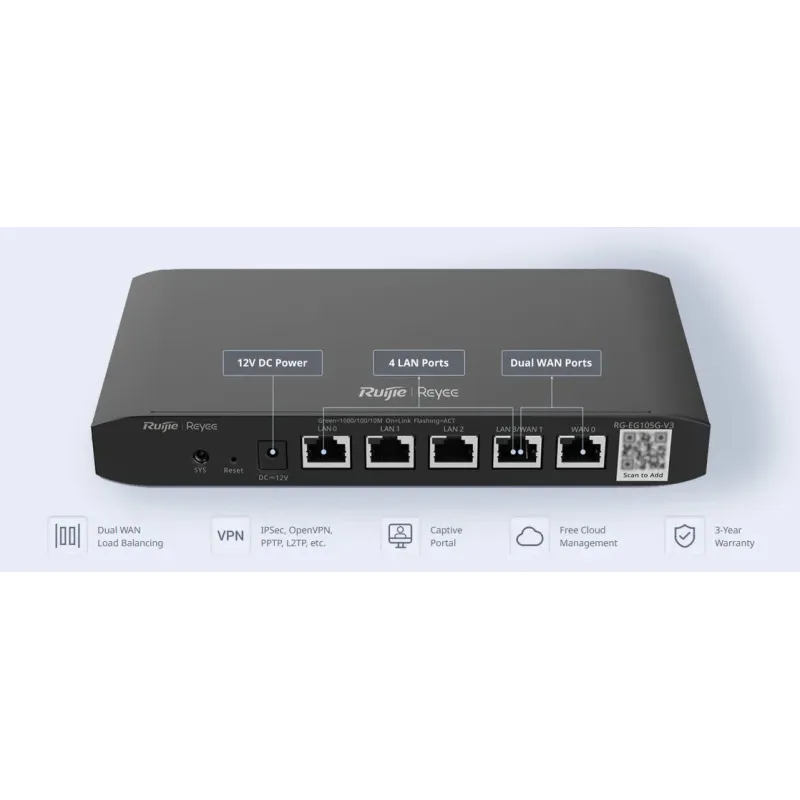

Fixed ports | 5 Port 10/100/1000M Base-T, Supporting up to 2 WAN ports
(Default: 1 WAN port, 4 LAN ports LAN3 can be switched to WAN1 port) |
RAM | 128MB |
Flash | 32MB |
PoE | - |
Maximum number of clients | Up to 100 concurrent clients |
Recommended bandwidth | 600 Mbps (1518 Byte, NAT+Flow Audit)
500 Mbps (1518 Byte, NAT+Authentication, Application Identification, Flow Audit and Flow Control)
1000 Mbps (Turbo Mode) |
Local power supply | Support 220V AC local power supply |
Power consumption | <6W |
Basic network features |
Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers |

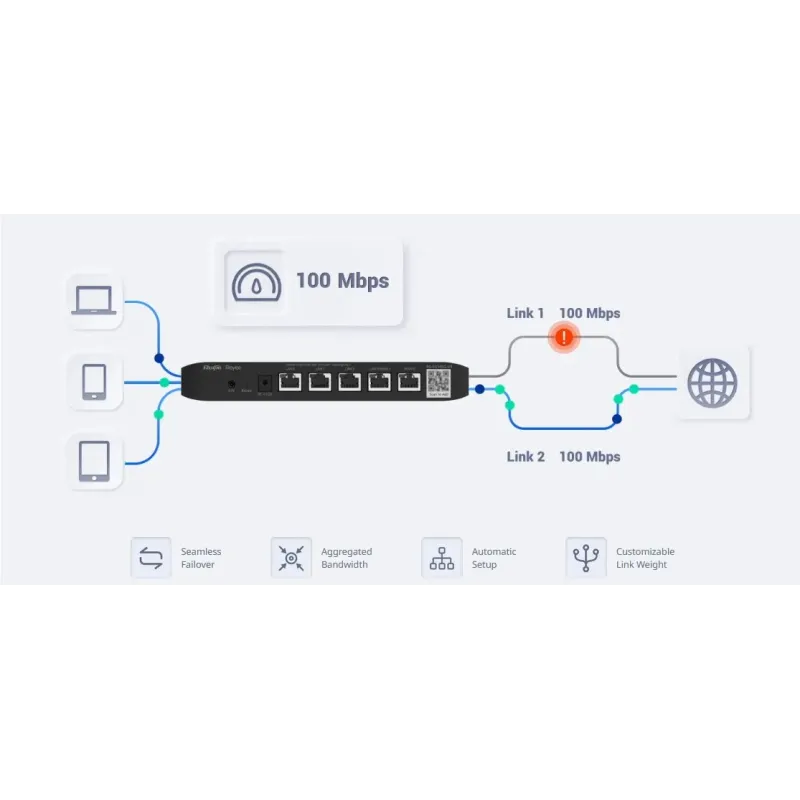

Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams.
Dynamic Routing RIPng, RIP, OSPFv2/OSPFv3 |
Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
Other protocols | DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
Gateway |
Application recognition | Built-in self-developed application signature database to identify applications Support free upgrades |
Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment |
Traffic audit | Real-time traffic audit, IP traffic visualization |
Behavior management | Time-based and IP policy-based access control |
VPN | IPsec VPN (8 tunnels) server and client |
Wireless management |
Management capacity | In AC mode 300 (APs/NBS Switches) +128 (ES Switches)
In gateway mode 32 (APs/NBS Switches) +128 (ES Switches) |
AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
Switch management |
Management capacity | Maximum manageable cloud managed switches: 128 |
Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
Device management | Per-device upgrade, batch upgrade |
Special features |
Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution |
Flexible management | Eweb and Ruijie Cloud |
Physical specifications |
Dimensions | 206.5×108.5×28 (mm) |
Weight | 0.84kg |
Temperature | Operating temperature: 0 - 40C Storage temperature: -10C - 70C |
Humidity | Operating humidity: 10% ~ 90% (non-condensing) Storage humidity: 5% ~ 95% (non-condensing) |
ประกัน | 5 ปี |
