Product Specification
|
|
Overview
|
Reyee RG-EG105GW-X Wi-Fi 6 2976Mbps Wireless All-in-One Business Router
เหมาะสำหรับใช้งานใน Office ขนาดเล็ก หรือ ทำ VPN ติดตั้งที่สาขา
รองรับ Internet Throughput 1.2Gbps, Users 150 Concurrent (แนะนำไม่เกิน 100)
รองรับการทำ Captive Portal ผ่าน Ruijie Cloud
รองรับการทำ VPN IPSecs, L2TP, PPTP
รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
|

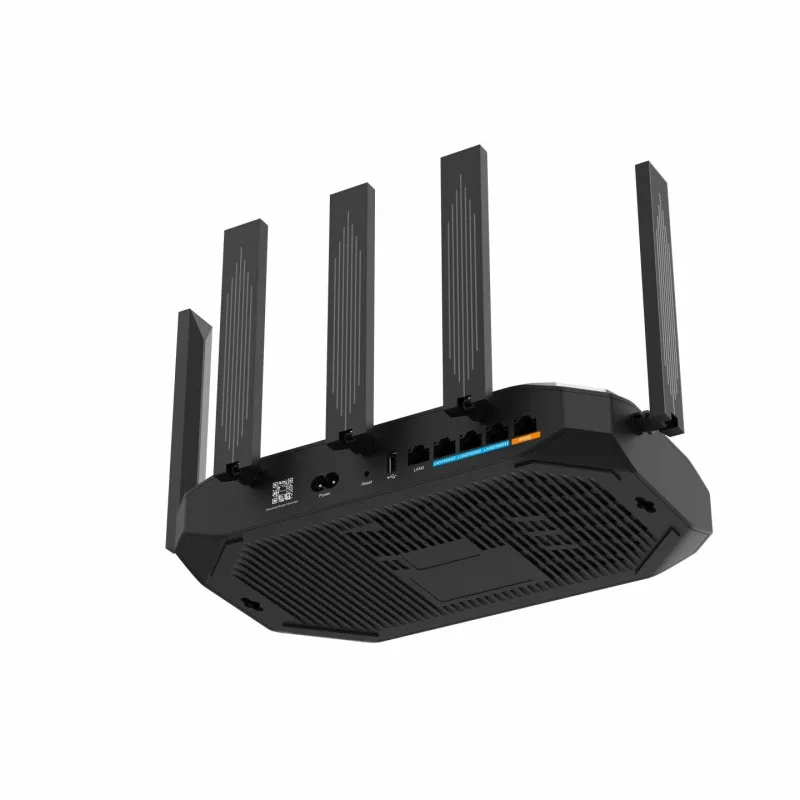

Service Ports
|
5 x 10/100/1000 Base-T (1 fixed WAN, 1 fixed LAN, 3 LAN/WAN switchable)
1 x USB 3.0
|
|
SDRAM/RAM
|
512 MB
|
|
Flash Memory
|
128 MB
|
|
Radio Design
|
2.4GHz, 2×2, MU-MIMO
5GHz, 2×2, MU-MIMO
|
|
Standard & Protocol
|
Wi-Fi 6 (IEEE 802.11ax)
Wi-Fi 5 (IEEE 802.11ac Wave 2)
Wi-Fi 4 (IEEE 802.11n)
IEEE 802.11a
IEEE 802.11b/g
|
|
Operation Frequency Bands
|
802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz
802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz t
|
|
Antenna
|
5 External Antennas (2.4 GHz: 5 dBi, 5 GHz: 5 dBi)
|
|
Wireless Data Rate
|
2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps
|
|
Max Transmit Power
|
2400 MHz~2483.5 MHz ≤ 20 dBm
5150 MHz~5350 MHz ≤ 23 dBm
5470 MHz~5725 MHz ≤ 25 dBm
5725 MHz~5850 MHz ≤ 30 dBm
|
|
Modulation
|
OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16QAM@24 Mbps, 64QAM@48/54 Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and CCK@5.5/11 Mbps MIMO
OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and1024QAM OFDMA
|
|
Recommended maximum Clients
|
Recommended total clients: 180
Recommended wireless clients: 80
|
|
Recommended ISP Bandwidth
|
1.2 Gbps
|
|
Local Power Supply
|
100V~240V AC, 50/ 60Hz
|
|
Max Power Consumption
|
20 W
|
|
Dimensions (W x D x H)
|
283 mm × 172 mm × 46 mm (11.14 in. × 6.77 in. × 1.81 in.)
Note: The value (46 mm/1.81 in.) only indicates the height of the main unit, excluding that of the antenna.
|
|
Weight
|
≤ 2 kg (4.41 lbs)
|
|
Operating Temperature
|
0ºC to 40ºC (32°F to 104°F)
|
|
Storage Temperature
|
–40ºC to 70ºC (–40°F to 158°F)
|
|
Operating Humidity
|
5% RH to 95% RH (non-condensing)
|
|
Storage Humidity
|
5% RH to 95% RH (non-condensing)
|
|
Software Specifications
|
|
Internet Access Mode
|
PPPoE Client
DHCP Client
Static IP
|
|
Access Mode Auto-Identification
|
Support |
|
WAN IP Address Conflict Avoidanc
|
Support |
|
PPPoE Account and Password Learned from Other Routers
|
Support |
|
VLAN
|
8 |
|
IPv6
|
Support |
|
IPTV
|
Support |
|
AC Mode
|
Support |
|
Behavior Management
|
App Block (Time/IP-based Policy)
Website Filtering
|
|
Application Identification
|
Identify 100+ Applications, including Office, IM, Web Page, Online Shopping, Online Gaming, P2P Download and Popular Videos
|
|
Application Priority
|
|
|

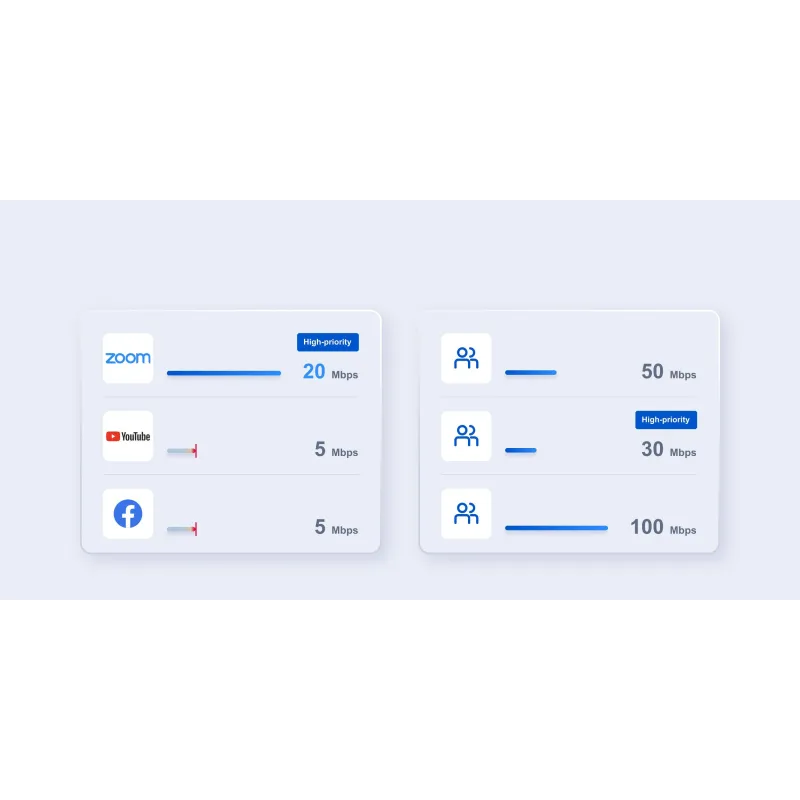

Flow Control
|
Smart Flow Control
Custom flow Control Policies
IP-based Automatic Bandwidth Assignment
|
|
Traffic Audit
|
Real-time Traffic Audit
|
|
Fault Diagnosis
|
Support |
|
Marketing Authentication
|
WiFiDog (SMS Authentication and One-click Authentication)
|
|
Local Authentication
|
Portal Authentication
Password Authentication
QR Code Authentication
|
|
VPN
|
L2TP VPN
PPTP VPN
IPsec VPN
OpenVPN
|
|
PPTP&L2TP&OpenVPN Accounts
|
100
|
|
IPsec VPN Performance
|
28 Mbps
|
|
L2TP VPN Performance
|
190 Mbps (Without IPSecs)
|
|
OpenVPN Performance
|
20 Mbps
|
|
IPsec VPN Tunnels
|
8
|
|
Static Routing
|
Static Routing/RIP/RIPng
|
|
Policy-based Routing
|
Support |
|
Active/Standby Switchover
|
Support |
|
Load Balancing
|
WAN Port Load Balancing
IP-based Load Balancing
Flow-based Load Balancing
Load Balancing Based on Weights of Member Interfaces
|
|
DDNS
|
Oray DDNS
DynDns
NO-IP
Ruijie DDNS
|
| NAT |
NAT, NAPT, NAT ALG
|
|
Port Mapping
|
Support |
|
Ruijie Cloud
|
Support |
|
ACL
|
ACL, Time-based Extended ACL
|
|
Security
|
Malicious Attack Prevention
ARP Binding
Port Scan Attack Prevention
Fragmentation Attack Prevention
DoS Teardrop Attack Prevention
Malformed Packet Attack Prevention
DoS LAND Attack Prevention
Smurf Attack Prevention
SYN Flood Attack Prevention
|
|
WLAN
|
|
Max Managed APs
|
Gateway Mode: 64 (Bypass mode is not supported.)
|
|
AP Management
|
Multi-SSID configuration
SSID hiding, channel configuration power configuration
AP wired port configuration
AP online upgrade
STA limit
STA blacklist/whitelist
|
|
Roaming
|
Local roaming
layer 2 roaming
layer 3 roaming
STA roaming track
|
|
Service and Support
|
Cloud Management
App Management
App Upgrade
App Restart
Scheduled Restart
Local Upgrade
Online Upgrade
Configuration Backup
Factory Settings
|
| ประกัน |
3 ปี |
