Product Specification |

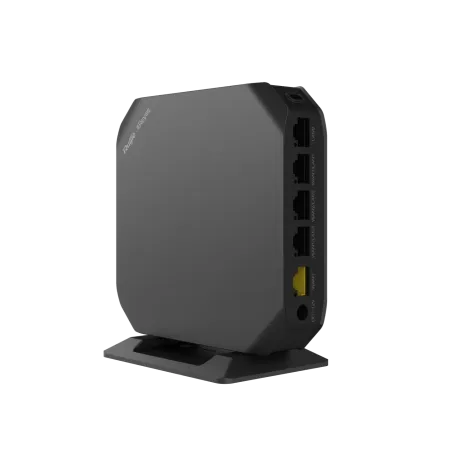

Overview | Reyee RG-EG105GW(T) Wi-Fi 5 1267Mbps Wireless All-in-One Business Router
รองรับ Internet Throughput 600Mbps, Users 150 Concurrent
รองรับการทำ Captive Portal ผ่าน Ruijie Cloud
รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ |
Radio | Dual-stream Dual-band |
Protocol | Wi-Fi 5 (IEEE 802.11ac Wave 2/Wave1)
Wi-Fi 4 (IEEE 802.11n)
802.11a/b/g |
Operating Bands | 802.11b/g/n: 2.4 GHz ~ 2.4835 GHz
802.11a/n/ac: 5.150 GHz ~ 5.350 GHz, 5.725 GHz ~ 5.850 GHz
Country-specific restriction apply.
Egypt:
802.11b/g/n: 2.4 GHz ~ 2.4835 GHz
802.11a/n/ac: 5.150 GHz ~ 5.350 GHz |
Antenna | Built-in Omnidirectional Antennas (2.4 GHz: 3dBi, 5 GHz: 4dBi) |
Spatial Streams | 2.4 GHz: 2x2 MIMO
5 GHz: 2x2 MIMO |
Max Throughput Rate | Up to 400 Mbps at 2.4 GHz
Up to 867 Mbps at 5 GHz
1.267 Gbps per AP |
Maximum Wi-Fi Clients | 110 |
Recommended Wi-Fi Clients | 80 |
Modulation | OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16-QAM@24 Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and [email protected]/11 Mbps MIMOOFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
Receive Sensitivity | 11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps)
11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps)
11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15
11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9)
11ac HT40: -79 dBm (MCS0), -57 dBm (MCS9)
11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9) |
Maximum Transmit Power | dBm (2.4GHz)
≤ 32 dBm (5GHz) country-specific restrictions apply. Myanmar:
2400~2483.5MHz ≤ 20dBm
5150~5350MHz ≤ 23dBm
5470~5850MHz ≤ 25dBm Thailand:
2400 MHz~2483.5 MHz ≤ 20 dBm
5150 MHz~5350 MHz ≤ 23 dBm
5470 MHz~5725 MHz ≤ 25 dBm
5725 MHz~5850 MHz ≤ 30 dBm |
Fixed WAN Port | 1×10/100/1000 Base-T |
Fixed LAN Port(s) | 1×10/100/1000 Base-T |
LAN/WAN Switchable Port(s) | 3×10/100/1000 Base-T |
Performance | 600 Mbps (1500Byte, NAT+Flow Audit are enabled)
300 Mbps (1500Byte, NAT+Authentication, Applicaation Identification, Flow Audit and Flow Control are enabled) |
Recommended Clients | 150 |
Power Consumption | ≤ 15 W |
Network Access Mode | PPPoE Client
DHCP Client
Static IP |
Automatic Identification of Internet Type | Support |
Avoidance of WAN IP Address Conflicts | Support |
Learning PPPoE Account & Password | Support |
VLAN | 8 |
IPv6 | Support |
IPTV | Support |
Behavior Management | App Block (Time/IP-based Policy)
Website Filtering |
Application Recognition | Identify 100+ Applications, including Office, IM, Web Page, Online Shopping, Online Gaming, P2P Download and Popular Videos |
Application Priority | Support |
Flow Control | Smart Flow Control
Custom flow Control Policies
IP-based Automatic Bandwidth Assignment |
Traffic Audit | Real-time Traffic Audit |
Diagnosis | Support |
Marketing authentication | Wi-FiDog (SMS authentication and one-click authentication) Wi-FiDog authentication across Layer 3 switches (based on IP) No traffic offline detection Portal fault escape |
Local authentication | Account password authentication QR Code Authentication Authentication across Layer 3 switches (IP based) |
| VPN Support | L2TP VPN
PPTP VPN
IPsec VPN
OpenVPN |
No. of PPTP&L2TP&OpenVPN Account | 30 |
Overall IPsec VPN Performance | 24 Mbps |
Overall L2TP VPN Performance | 140 Mbps |
Overall OPENVPN Performance | 20 Mbps |
VPN Tunnels | IPsec : 8
OpenVPN : 16
L2TP : 8 |
Routing | Static, RIP/RIPng |
Policy-Based Routing (PBR) | Support |
WAN Port Failover | Support |
WAN Load Balancing | Support |
| Load Balance Mode | Load balancing based on source address
Flow-based Load Balancing
Port-based weighted load balancing of data streams |
DDNS | Oray DDNS,DynDns, NO-IP, Ruijie DDNS |
Port Mapping | Support |
ACL/Time-based ACLs | Support |
ARP binding | Support |
| Firewall | Prevent Port Scan Attack
Prevent Fragmentation Attack
Prevent Teardrop Attack
Prevent Ping of Death Attack
Prevent Land Attack
Prevent Smurf / Fraggle attack
Prevent SYN Flood Attack |
| Management | Cloud, Mobite App |
CPU | 2 Cores, 880 MHz |
SDRAM/RAM | 256 MB |
Flash Memory | Flash Memory 32 MB SPI NOR FLASH |
Power Supplies | DC 12V/1.5A |
PoE Standard | N/A |
PoE Power Budget | N/A |
Dimensions(W×D×H) | 120 mm × 120 mm × 28 mm (without mounting plate) |
Weight | 0.251 kg (without mounting plate) |
Installation | Rack-mounted |
Rack Dimensions | Desk-mount /Wall-mount |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Operating Humidity | 10% to 95% Noncondensing |
Storage Humidity | 5% to 95% Noncondensing |
Port Surge | 4 kV |
ประกัน | 3 ปี |
