รายละเอียด
Ruijie Reyee Series Products Web-Based Configuration Guide
Ruijie RG-EG209GS Routers Datasheet
ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ผ่านการสอบ Certificate จากทาง Ruijie Networks
|
Product Specification
|
|
Overview
|

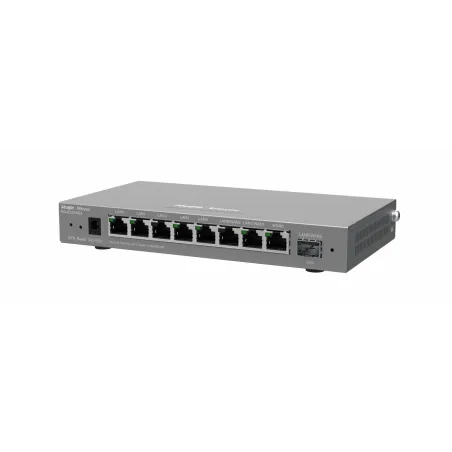

Reyee RG-EG209GS 4Wan Gigabit Cloud Managed SFP Router, 8 Port Lan 1 Port SFP, รองรับ Internet Throughput 600Mbps, Users 200 Concurrent รองรับ VPN IPSecs, Authenticate, Capive Portal
รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
|
Fixed ports
|
7×10/100/1000 Base-T
1×1GBase-X SFP
|
|
LAN/WAN Switchable Port(s)
|
2×10/100/1000 Base-T
1×1GBase-X SFP
|
|
Performance
|
600Mbps (1518Byte,NAT + Flow Audit)
430 Mbps (1518Byte,NAT+Authentication, Applicaation Identification, Flow Audit and Flow Control)
|
|
Throughput
|
600Mbps
|
|
Recommended Clients
|
200
|
|
Power Consumption
|
≤ 18W
|
|
Network Access Mode
|
PPPoE Client
DHCP Client
Static IP
|
|
Automatic Identification of Internet Type
|
Support
|
|
Avoidance of WAN IP Address Conflicts
|
Support
|
|
Learning PPPoE Account & Password
|
Support
|
|
VLAN
|
Support, 8
|
|
IPv6
|
Support
|
|
IPTV
|
Support
|
|
AC Mode
|
Max Management of Reyee APs 150
|
|
Behavior Management
|
APP Block (Time/IP-based Policy)
Website Filtering
|
|
Application Recognition
|
Identify 100+ Applications, including Office, IM, Web Page, Online Shopping,
Online Gaming, P2P Download and Popular Videos
|
|
Application Priority
|
Support
|
|
Flow Control
|
Smart Flow Control
Custom flow Control Policies
IP-based Automatic Bandwidth Assignment
|
|
Traffic Audit
|
Real-time Traffic Audit
|
|
Diagnosis
|
Support
|
|
Marketing authentication
|
WiFiDog (SMS authentication and one-click authentication)
|
|
Local authentication
|
Support
|
|

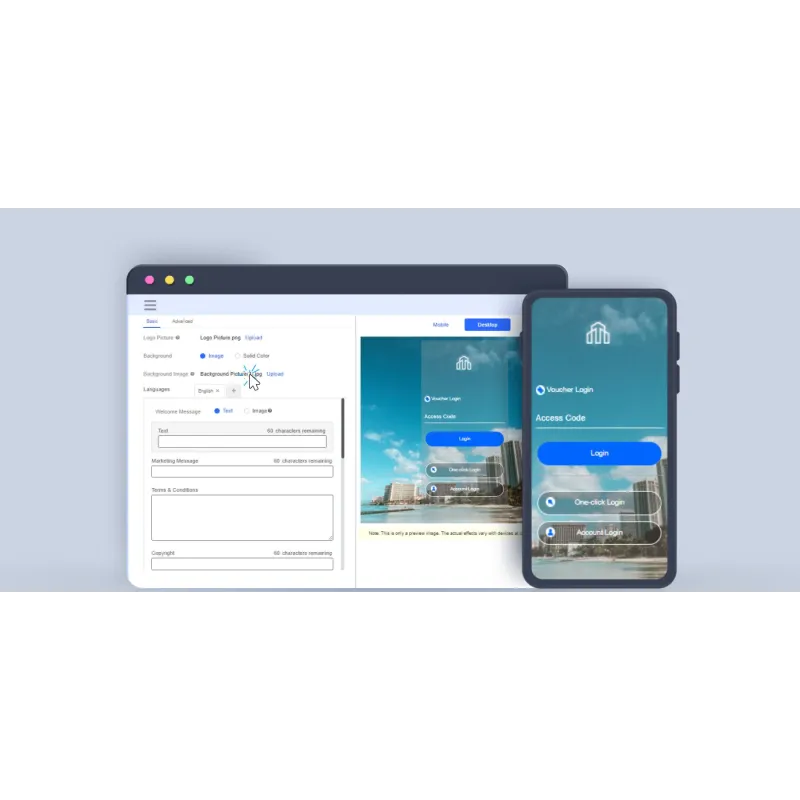

Portal Authentication
Password Authentication
QR Code Authentication
|
Support
|
|
VPN
|
L2TP VPN
PPTP VPN
IPsec VPN
OpenVPN
|
|
No. of PPTP&L2TP&OpenVPN Account
|
100
|
|
Overall IPsec VPN Performance
|
28Mbps
|
|
Overall L2TP VPN Performance
|
190Mbps
|
|
Overall OPENVPN Performance
|
20Mbps
|
|
VPN Tunnels
|
IPsec 8
OpenVPN 16
L2TP VPN 8
|
|
Routing
|
Static , RIP/RIPng
|
|
Policy-Based Routing (PBR)
|
Support
|
|
WAN Loadbalance
|
WAN Port Failover
WAN Load Balancing
|
|
Loadbalance Mode
|
Load balancing based on source address
Flow-based Load Balancing
Port-based weighted load balancing of data streams
|
|
DDNS
|
Oray DDNS, DynDns, NO-IP, Ruijie DDNS
|
|
PPPoE Server
|
Support
|
|
Port Mapping/ Forward Port
|
Support
|
|
ACL
|
Support
|
|
Time-based ACLs
|
Support
|
|
ARP binding
|
Support
|
|
Scheduled Restart
|
Support
|
|
CPU
|
2 Cores, 880 MHz
|
|
SDRAM/RAM
|
256MB
|
|
Flash Memory
|
32MB SPI NOR FLASH
|
|
Power Supplies
|
DC 12V/1.5A
|
|
Dimensions ( W×D×H )
|
202 mm x 28 mm x 108 mm(7.9 5in. x 1.1 in. x 4.25 in.)
|
|
Weight
|
0.5kg (packages not included)
|
|
Operating Temperature
|
0°C to 40°C (32°F to 104°F)
|
|
Storage Temperature
|
-40°C to 70°C (-40°F to 158°F)
|
|
ประกัน
|
3 ปี
|
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- จำนวน WAN/ Internet
- 2 Wan/Internet
- รองรับ VPN
- Yes
