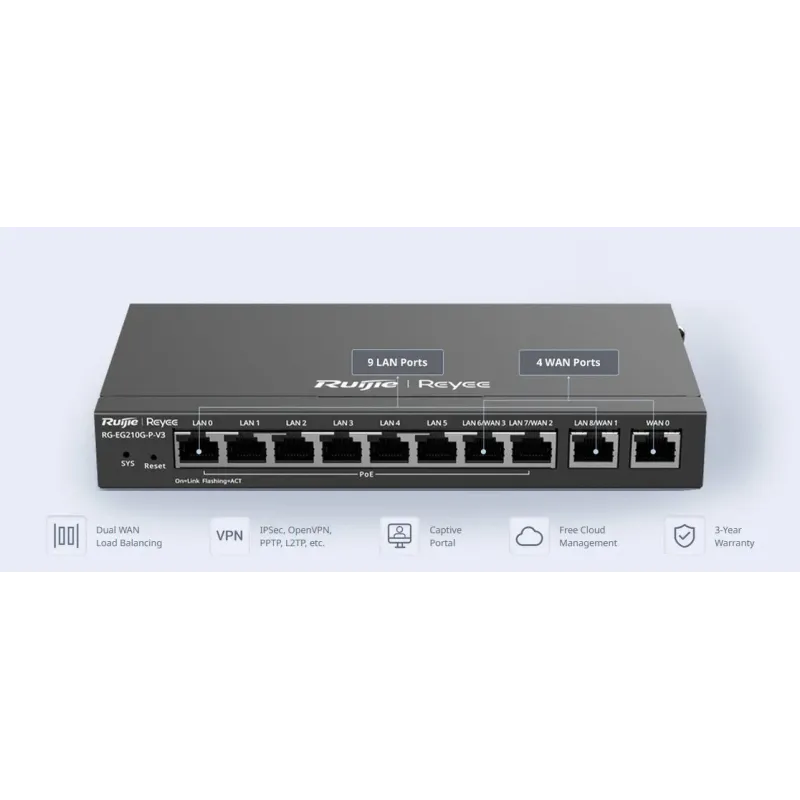

Fixed ports | 10 Port 10/100/1000M Base-T Supporting up to 4 WAN ports
(Default: 1 WAN port and 9 LAN ports LAN8, LAN7 and LAN6 can be switched to WAN ports) |
RAM | 256MB |
Flash | 32MB |
PoE | N/A |
Maximum number of clients | Up to 200 concurrent clients |
Recommended bandwidth | ความเร็ว 600Mbps |
Local power supply | Support 220V AC local power supply |
Power consumption | <15W |
Basic network features |
Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers |

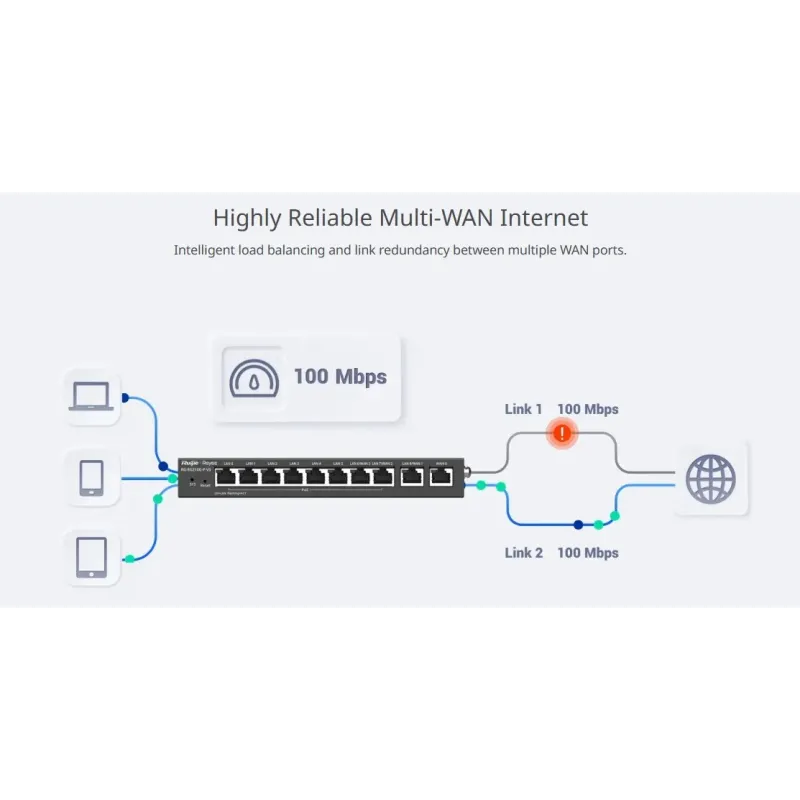

Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams
Dynamic Routing RIPng, RIP, OSPFv2/OSPFv3 |
Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
Other protocols | DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
Gateway |
Application recognition | Built-in self-developed application signature database to identify applicationsSupport free upgrades |
Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment |
Traffic audit | Real-time traffic audit, IP traffic visualization |
Behavior management | Time-based and IP policy-based access control |
VPN | IPsec VPN (8 tunnels) server and client |
Wireless management |
Management capacity | In AC mode 500 (APs/NBS Switches) +128 (ES Switches)
In gateway mode 150 (APs/NBS Switches) +128 (ES Switches) |
AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
Switch management |
Management capacity | Maximum manageable cloud managed switches: 128 |
Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
Device management | Per-device upgrade, batch upgrade |
Special features |
Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution |

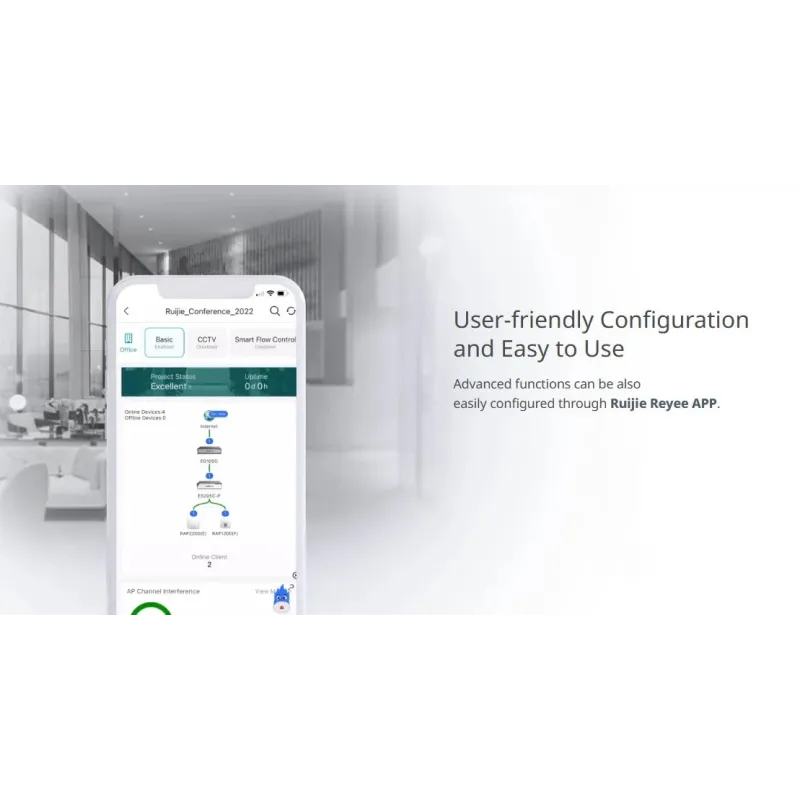

Flexible management | Eweb and Ruijie Cloud |
Physical specifications |
Dimensions | 440×43.6×201.5(mm) |
Weight | 2.35kg |
Temperature | Operating temperature: 0 - 40C
Storage temperature: -10C - 70C |
Humidity | Operating humidity: 10% ~ 90% (non-condensing)
Storage humidity: 5% ~ 95% (non-condensing) |
ประกัน | 3 ปี |
