Ruijie Reyee RG-EG305GH-P-E Cloud Managed PoE Office Router รองรับผู้ใช้งานพร้อมกันสูงสุด 350 Clients, Throughput 1.5Gbps, Gigabit RJ45 5 Ports, PoE/PoE+ 4 Ports รวม 60W, Multi-WAN, VPN, SD-WAN และ Ruijie Cloud Management เหมาะสำหรับสำนักงาน ร้านค้า และระบบ Network ขนาดเล็กถึงกลาง
ตัวแทนจำหน่าย Ruijie อย่างเป็นทางการ สอบถามส่วนลดพิเศษ
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
สเปกสินค้า (Quick Spec)
เอกสารอ้างอิงเฉพาะ
Review Reyee Gateway แบบ Full Test
Review เก็บ Log เข้าใช้งาน Internet แบบ URL ด้วย Reyee EG Gateway
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี
ทดสอบ Block App ในอุปกรณ์ Reyee Gateway Router
คู่มือการ Config Reyee Gateway เก็บ Log การใช้งาน Internet
Reyee Series Implementation Cookbook V1.0
Ruijie Reyee RG-EG Series Routers Web-based Configuration Guide, Release ReyeeOS 1.97
Ruijie Reyee RG-EG305GH-P-E เป็น Router สำหรับสำนักงาน ร้านค้า โฮมออฟฟิศ โรงแรมขนาดเล็ก และระบบ Network ที่ต้องการอุปกรณ์ Gateway พร้อม PoE ในตัว รองรับผู้ใช้งานพร้อมกันสูงสุด 350 Clients และ Throughput สูงสุด 1.5Gbps
ตัวอุปกรณ์มาพร้อม Gigabit RJ45 จำนวน 5 Ports โดยมีพอร์ต PoE/PoE+ จำนวน 4 Ports กำลังไฟรวม 60W สามารถจ่ายไฟให้ Access Point, IP Camera หรืออุปกรณ์ Network ที่รองรับ PoE ได้โดยตรง เหมาะกับงานติดตั้งที่ต้องการลดจำนวนอุปกรณ์และสายไฟในตู้ Rack หรือจุดติดตั้งขนาดเล็ก
RG-EG305GH-P-E รองรับ Multi-WAN, Intelligent Load Balancing, WAN Failover, VPN, SD-WAN, VLAN, Portal Authentication, RADIUS, PPPoE Server, Traffic Visualization และบริหารจัดการผ่าน Ruijie Cloud / Ruijie Reyee App ช่วยให้ผู้ดูแลระบบตรวจสอบสถานะและแก้ไขปัญหาจากระยะไกลได้สะดวก
Ruijie Reyee RG-EG305GH-P-E เหมาะสำหรับผู้ดูแลระบบที่ต้องการ Router Gateway พร้อม PoE ในตัว รองรับ VPN, SD-WAN, Load Balance และ Cloud Management ใช้งานง่ายในอุปกรณ์เดียว
| Product Overview | |
|---|---|
| Model | Ruijie Reyee RG-EG305GH-P-E |
| Product Type | 5-Port High-Performance Cloud Managed PoE Office Router |
| Recommended Scenario | Office, Home Office, Retail Store, Small Hotel, Branch Office, PoE Access Point Deployment |
| Recommended Concurrent Clients | 350 Clients |

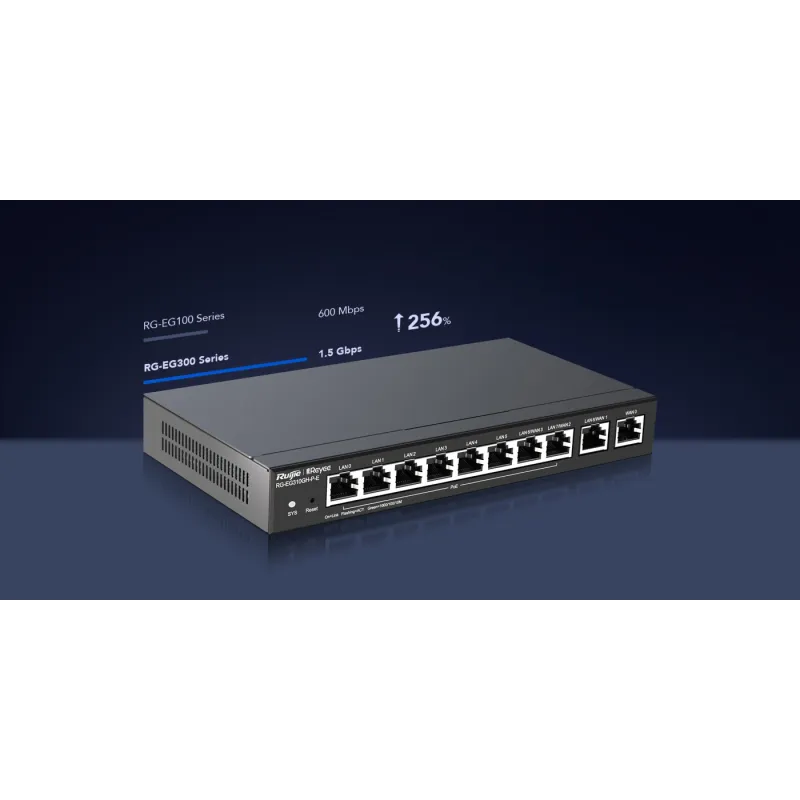

| Throughput | 1,500 Mbps |
| Concurrent Sessions | 100,000 Sessions |
| Cloud Management | Ruijie Cloud Management, Ruijie Reyee App |
| Hardware Specifications | |
| CPU | Dual-Core Processor, 1.35GHz per Core |
| RAM | 512MB |
| Flash Memory | 256MB |
| Power Supply | DC Power Adapter |
| DC Connector | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Depth: 10.0 mm |
| Maximum Power Consumption | 80W |
| Port Specifications | |
| Total RJ45 Ports | 5 Ports |
| Gigabit Ethernet Ports | 5 x 10/100/1000BASE-T Ports |
| Maximum LAN Ports | 4 Ports |
| Maximum WAN Ports | 4 Ports |
| Fixed LAN Ports | 1 Port |
| Fixed WAN Ports | 1 Port |
| LAN/WAN Ports | 3 Ports |
| LEDs | 1 x System Status LED 5 x Ethernet Port LEDs |
| Reset Button | 1 |
| PoE Specifications | |
| PoE Out Ports | 4 Ports |
| PoE Budget | 60W |
| PoE Budget per Port | 30W |
| PoE Out Standard | IEEE 802.3af/at, PoE/PoE+ |
| PoE Power Pins | 1-2 (+), 3-6 (-) |
| Internet & WAN Features | |
| Internet Access Mode | Static IP, Static IPv6, Dynamic IP, Dynamic IPv6, PPPoE |
| WAN Failover | Supported |
| Load Balancing | Supported |
| Multiple WAN on Same Network Segment | Supported |
| PPPoE Clients | Supported |
| MAC Address Cloning | Supported |
| WAN IP Conflict Avoidance | Supported |

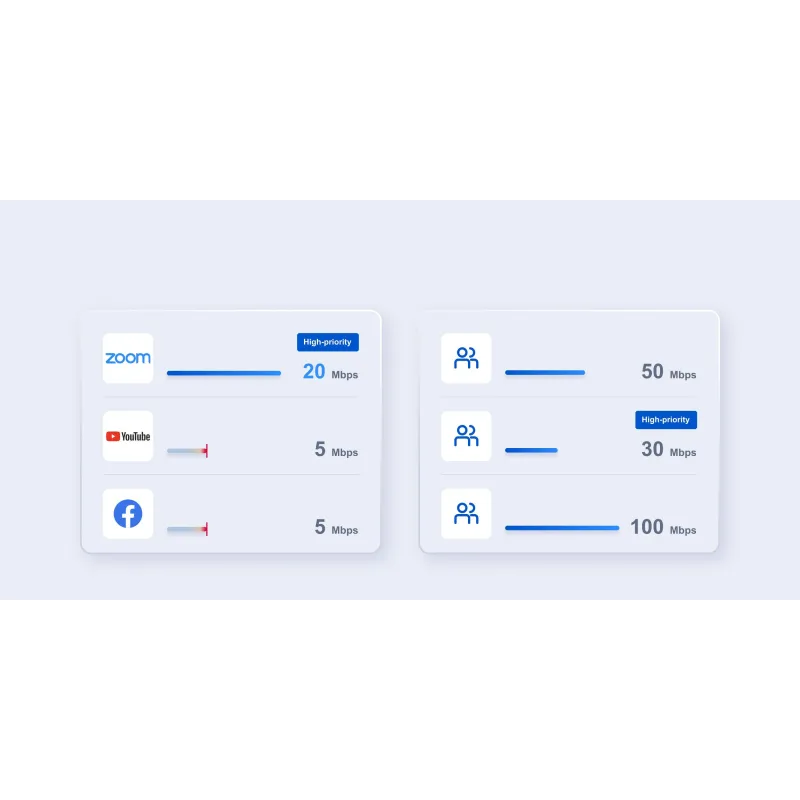

| Application Priority | Supported |
| Application Recognition | Supported |
| Behavior Management | Supported |
| Flow Control | Supported |
| Routing Features | |
| IPv4 Static Route | Supported |
| IPv6 Static Route | Supported |
| IPv6 PBR | Supported |
| Application-Based Routing | Supported |

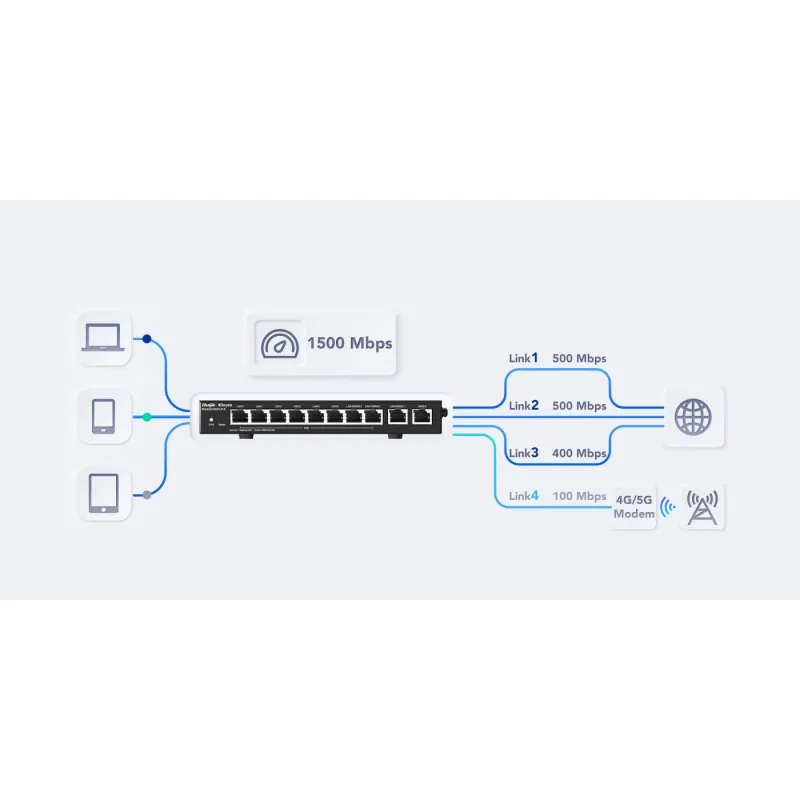

| Bandwidth Aggregation | Supported |
| Load Balancing Based on Flows | Supported |
| Load Balancing Based on Source IP | Supported |
| Load Balancing Based on Interface Weight | Supported |
| Route Selection by Link Quality | Supported |
| Dynamic Routing | BGP, BGP4, BGP4+, OSPFv2, OSPFv3, RIP, RIPng |
| LAN / VLAN Features | |
| VLAN | Supported |
| VLAN on LAN Ports | Supported |
| VLAN Priority | Supported |
| AC Mode | Supported |
| Maximum Managed Devices - Router Mode | AP and NBS Series: 150 Devices ES Series: 128 Devices |
| Maximum Managed Devices - AC Mode | AP and NBS Series: 500 Devices ES Series: 128 Devices |
| Maximum APs - AC Mode | 500 APs |
| Wireless Intelligent Optimization | Supported |
| Authentication Features | |
| Portal Authentication | Supported |
| One-Click Authentication | Supported |
| Password Authentication | Supported |
| SMS-Based Authentication | Supported |
| Voucher Authentication | Supported via Ruijie Cloud Portal Page |
| Cloud Portal Authentication | Supported |
| Local Portal Authentication | Supported |
| QR Code Authentication | Supported |
| Custom Portal Page | Supported |
| 802.1X Authentication | Supported |
| MAC Address-Based Authentication | Supported |
| Third-Party Authentication | Supported |
| RADIUS Authentication | Supported |
| RADIUS Client | Supported |
| RADIUS Proxy Server | Supported |
| PPPoE Server | Supported |
| PPPoE Server Accounts | 300 Accounts |
| PPPoE Server Concurrent Clients | 128 Clients |
| VPN Features | |
| IPsec VPN | Supported |
| IPsec VPN Bandwidth | 170 Mbps |
| L2TP VPN | Supported |
| L2TP VPN Bandwidth | 540 Mbps |
| OpenVPN | Supported |
| OpenVPN Bandwidth | 100 Mbps |
| PPTP VPN | Supported |
| PPTP VPN Bandwidth | 640 Mbps |
| WireGuard Server | Supported |
| WireGuard Client | Supported |
| WireGuard Performance | 300 Mbps |
| WireGuard Concurrent Tunnels | 64 Tunnels |
| VPN Accounts | 300 Accounts for L2TP, PPTP and OpenVPN |

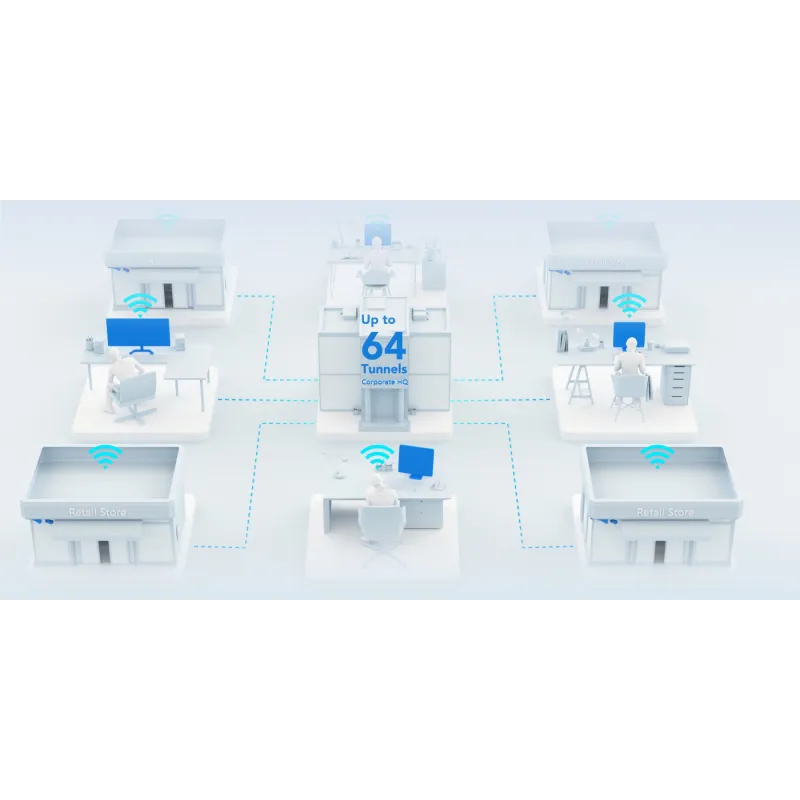

| Maximum VPN Branches | 64 Branches for IPsec, L2TP, OpenVPN and PPTP |
| SD-WAN Features | |
| SD-WAN | Supported |
| SD-WAN Performance | 300 Mbps |
| SD-WAN Tunnels | 192 Tunnels |
| Maximum SD-WAN Branches | 64 Branches |
| Active / Standby Mode | Supported |
| Centralized Traffic Forwarding Policy | Supported |
| Multi-WAN Link Bundling Efficiency | ≥ 80%, Lab Data |
| IP Service | |
| DHCP Client / Server | Supported |
| DNS Client / DNS Proxy / DNS Server | Supported |
| Static / Dynamic NAT | Supported |
| NAT Loopback | Supported |
| Port Mapping | Supported, 512 Entries |
| DDNS | DDNS, Ruijie DDNS, Alibaba Cloud DDNS, No-IP DNS, 3322.org |
| UPnP | Supported |
| IPv6 | Supported |
| IPTV | Supported |
| ARP Binding | Supported |
| Maximum ARP Entries | 1,024 Entries |
| Security Features | |
| ACL | Supported |
| Stateful Firewall | Supported |
| Malformed Packet Attack Defense | Supported |
| Teardrop Attack Defense | Supported |
| LAND Attack Defense | Supported |
| SYN Flood Attack Defense | Supported |
| Smurf Attack Defense | Supported |
| IP Attack Defense | Supported |
| Disabling Ping | Supported |
| IP-MAC Binding | Supported |
| Network Sharing Prevention | Supported |
| Security Log | Supported |
| Security Zone | Supported |
| User Group-Based Connection Limiting | Supported |
| Management & Monitoring | |
| Web Management | Supported |
| Ruijie Cloud Management | Supported |
| Ruijie Reyee App Management | Supported |
| Remote Monitoring via Reyee App | Supported |
| Remote Restart via Reyee App | Supported |
| Software Upgrade via Reyee App | Supported |
| Fault Diagnosis | Supported |
| HTTPS Login | Supported |
| SNMP | SNMPv1, SNMPv2c, SNMPv3 |
| SON | Supported |
| Scheduled Device Restart | Supported |
| Log Upload | Supported |
| Local / Online Upgrade | Supported |
| Configuration Backup | Supported |
| Web Login Information | Default IP Address: 192.168.110.1 Default Password: admin |
| Audit & Control Features | |
| Time-Based Blocking Policy | Supported |
| IP-Based Blocking Policy | Supported |
| Website Filtering | Custom URL Filtering Supported |
| Traffic Audit | Supported |
| URL Audit Log | Supported |
| Audit Log Server | Supported |
| Audit Log Storage | Not Supported |
| Uploading Audit Logs to Server | Supported |
| Physical Specifications | |
| Product Dimensions | 202 x 108 x 28 mm |
| Package Dimensions | 594 x 430 x 267 mm |
| Weight | 1.2 kg |
| Shipping Weight | 1.51 kg |
| Mounting Options | Desk |
| Cooling | Natural Cooling |
| Fan | Fanless Design |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 10% RH to 90% RH, Non-Condensing |
| Storage Humidity | 5% RH to 95% RH, Non-Condensing |
| Surge Protection | Service Port: ±4kV Common Mode Power Connector: ±6kV Common Mode and ±6kV Differential Mode |
| Package Contents | |
| Included Items | Power Adapter x 1 Power Cord 1.8m x 1 Rubber Pad x 4 User Manual x 1 Warranty Card x 1 |
ประกัน | ประกันศูนย์ Ruijie Thailand 3 ปี |
Note: Specifications are based on the official RG-EG305GH-P-E datasheet. Actual performance may vary depending on firmware version, enabled features, PoE load, traffic type, number of clients and network environment.
