RG-EG310GH-P-E Reyee Cloud Router 3 WAN, IPSec VPN, Internet 1.5Gbps

RG-EG310GH-P-E Product Specification

Fixed WAN Port

1×10/100/1000 Base-T

Fixed LAN Port(s)

6×10/100/1000 Base-T

LAN/WAN Switchable Port(s)

3×10/100/1000 Base-T

Performance

1.5 Gbps (1518 Byte,NAT+Flow Audit)
1000 Mbps (1518 Byte,NAT+Authentication, Applicaation Identification,
Flow Audit and Flow Control)

Throughput

1.5 Gbps

Recommended Clients

300

Power Consumption

≤ 130 W
(With PoE full load)

Network Access Mode

PPPoE Client
DHCP Client
Static IP

Automatic Identification of Internet Type

Avoidance of WAN IP Address Conflicts

Learning PPPoE Account & Password

VLAN

IPv6

IPTV

AC Mode

Behavior Management

App Block (Time/IP-based Policy)
Website Filtering

Application Recognition

Identify 100+ Applications, including Office, IM, Web Page, Online Shopping, Online Gaming, P2P Download and Popular Videos

Application Priority

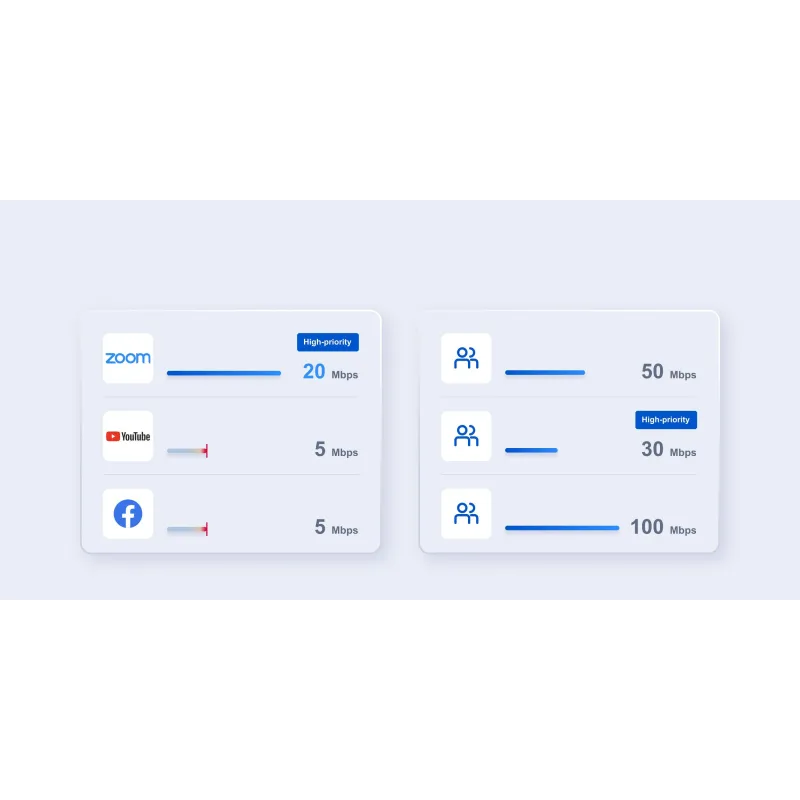

Flow Control

Smart Flow Control
Custom flow Control Policies
IP-based Automatic Bandwidth Assignment

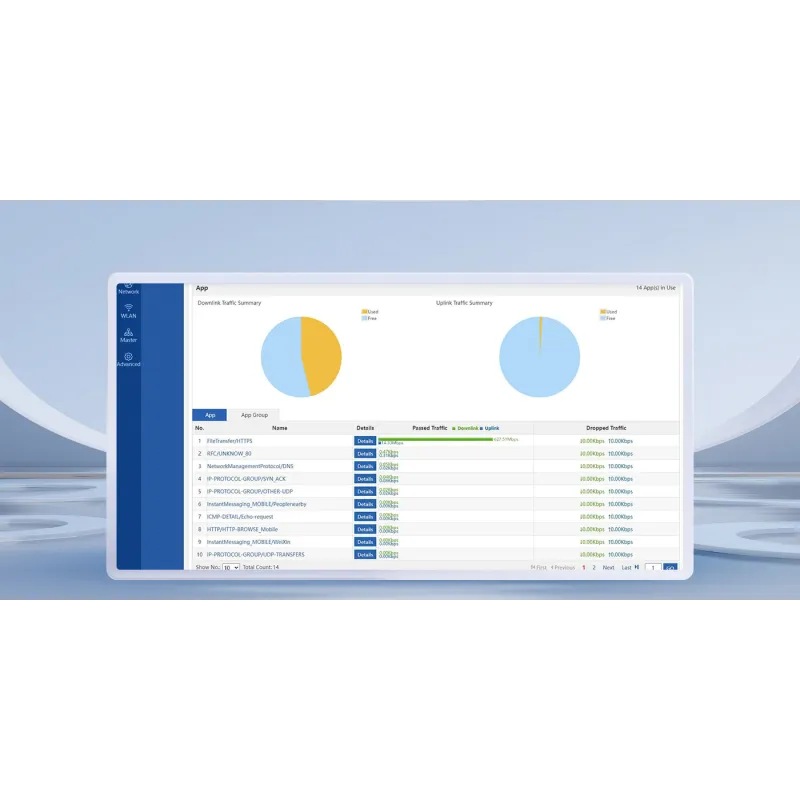

Traffic Audit

Real-time Traffic Audit

Diagnosis

Marketing authentication

WiFiDog (SMS authentication and one-click authentication)

Local authentication

Portal Authentication
Password Authentication
QR Code Authentication

Max Manager Reyee Switchs

128

No. of PPPoE Server Account

64

L2TP VPN
PPTP VPN
IPsec VPN
OpenVPN

No. of PPTP&L2TP&OpenVPN Account

300

Overall IPsec VPN Performance

230 Mbps

Overall L2TP VPN Performance

640 Mbps

Overall OPENVPN Performance

100 Mbps

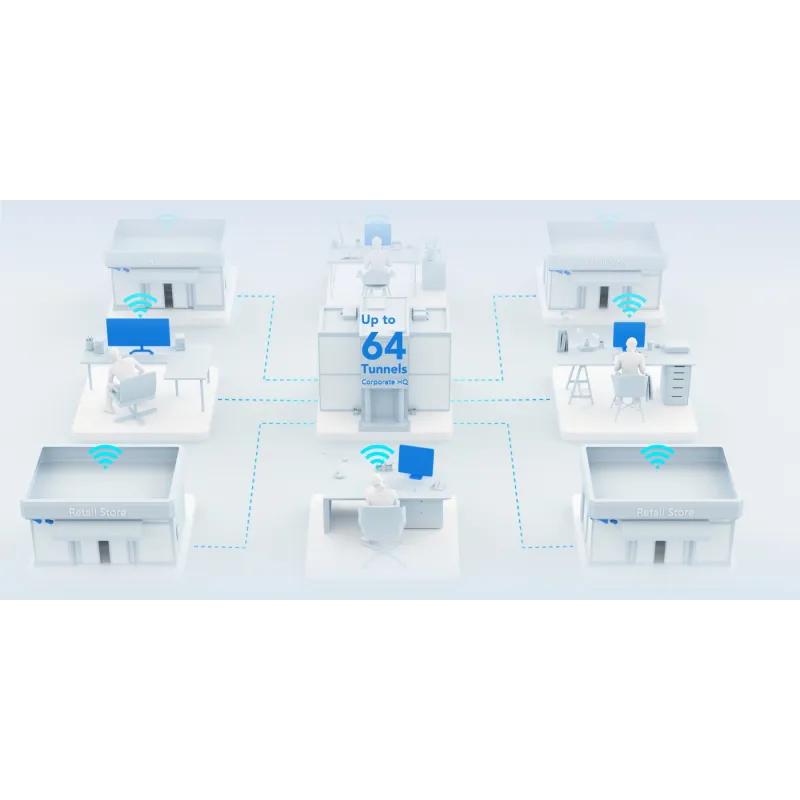

VPN Tunnels

IPsec : 64
OpenVPN : 64
L2TP : 64

Routing

Static, RIP/RIPng

Policy-Based Routing (PBR)

WAN Port Failover

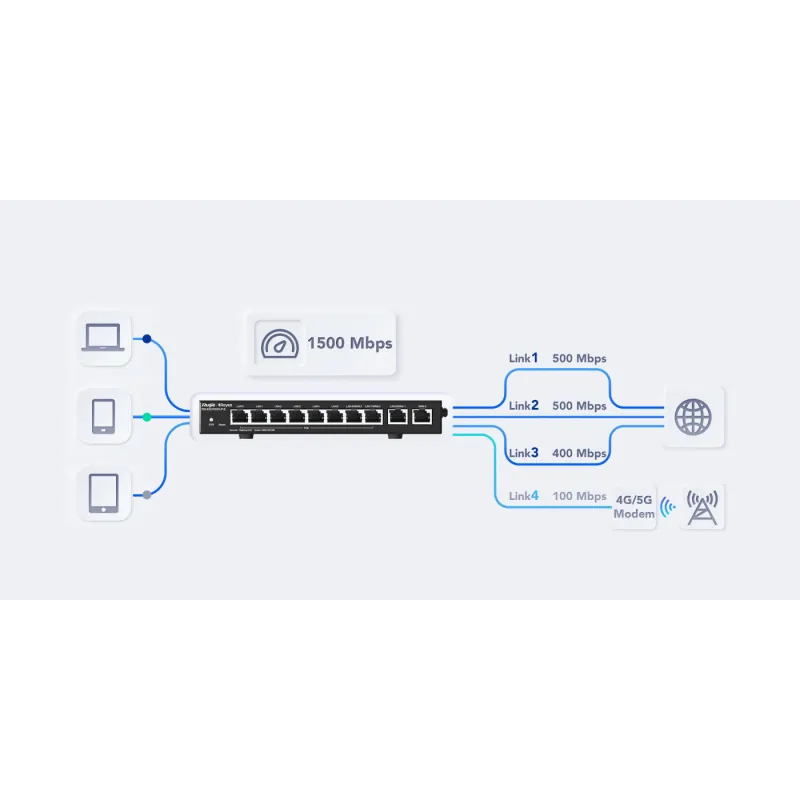

WAN Load Balancing

Load balancing based on source address
Flow-based Load Balancing
Port-based weighted load balancing of data streams

DDNS

Oray DDNS,DynDns, NO-IP, Ruijie DDNS

Port Mapping

ACL/Time-based ACLs

ARP binding

Prevent Port Scan Attack
Prevent Fragmentation Attack
Prevent Teardrop Attack
Prevent Ping of Death Attack
Prevent Land Attack
Prevent Smurf / Fraggle attack
Prevent SYN Flood Attack

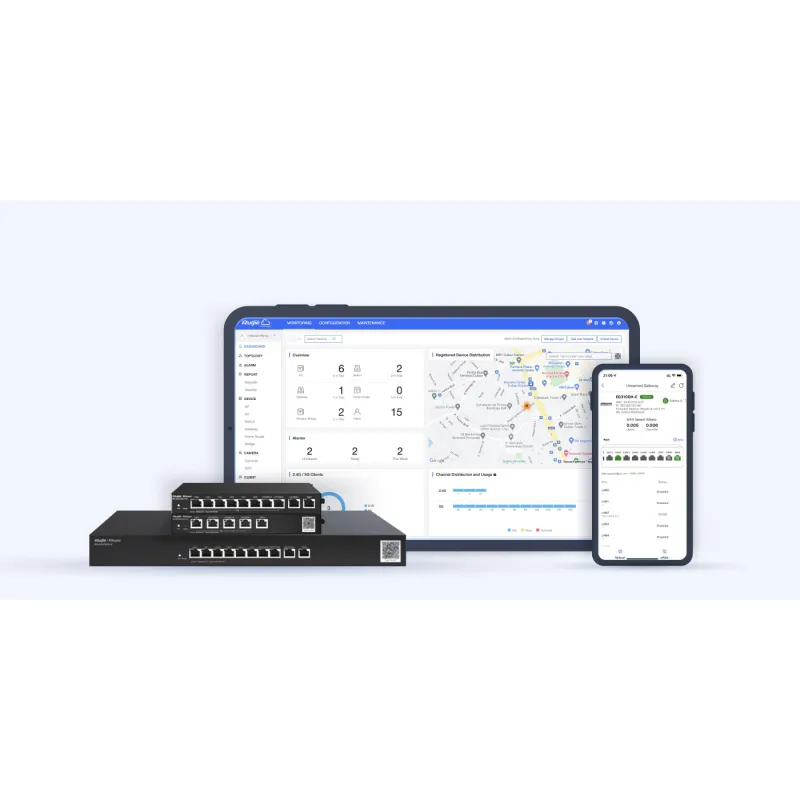

Cloud, Mobite App

CPU

2 Cores, 1.35 GHz

SDRAM/RAM

512 MB

Flash Memory

Flash Memory

Power Supplies

DC 54V/2.4A (Adapter included)

PoE Standard

IEEE 802.3af/at

PoE Power Budget

110 W

Dimensions(W×D×H)

202 mm x 28 mm x 108 mm (7.9 5 in. x 1.1 in. x 4.25 in.)

Weight

0.55 kg (packages not included)

Installation

Desk-mounted

Rack Dimensions

N/A

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Operating Humidity

10% to 90% Noncondensing

Storage Humidity

5% to 90% Noncondensing

Port Surge

4 kV

ประกัน

ประกันศูนย์ Ruijie Thailand 3 ปี
