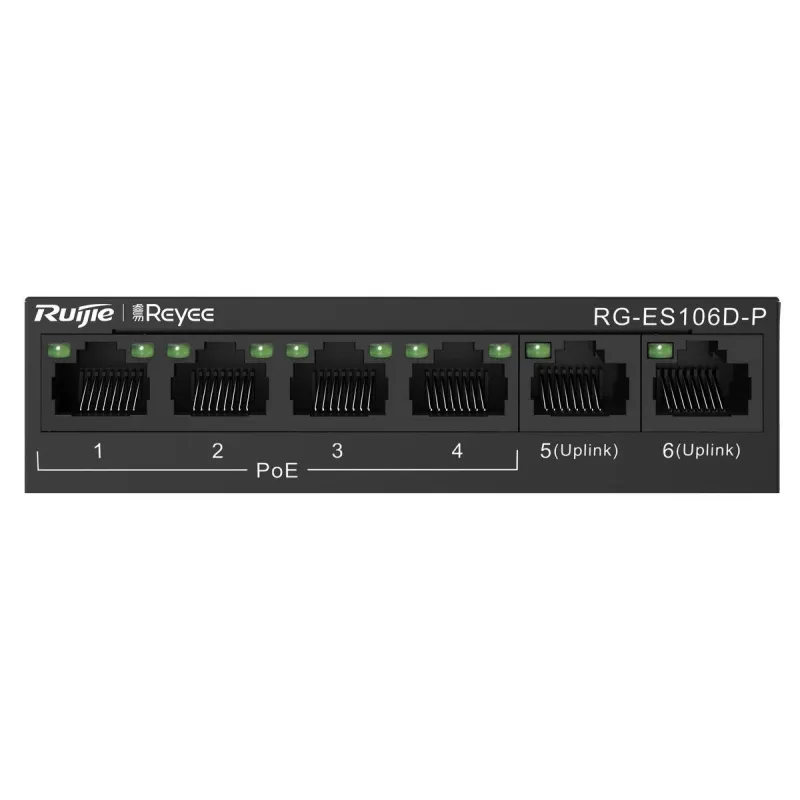

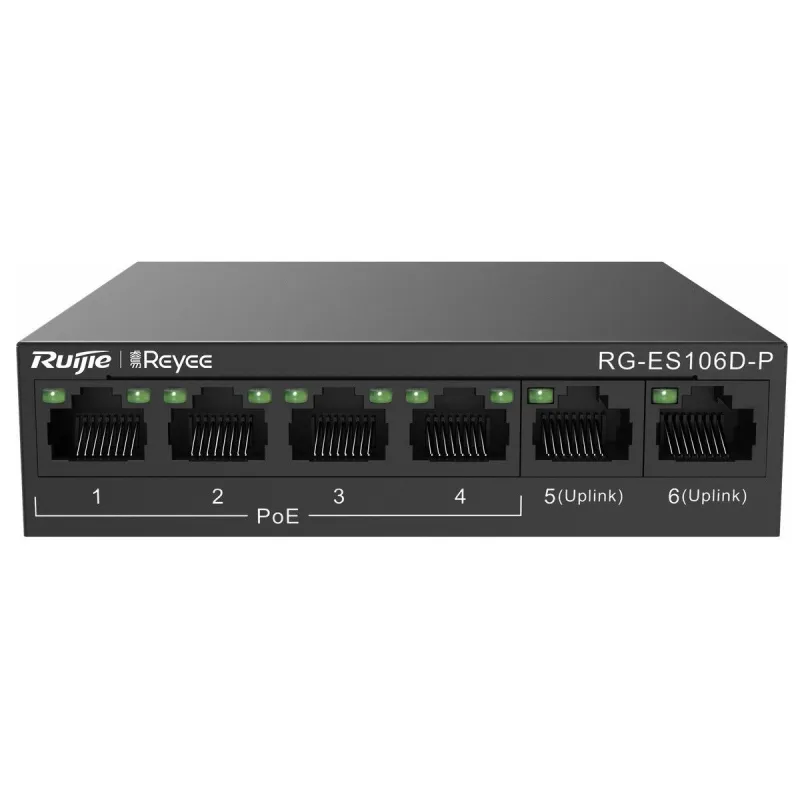

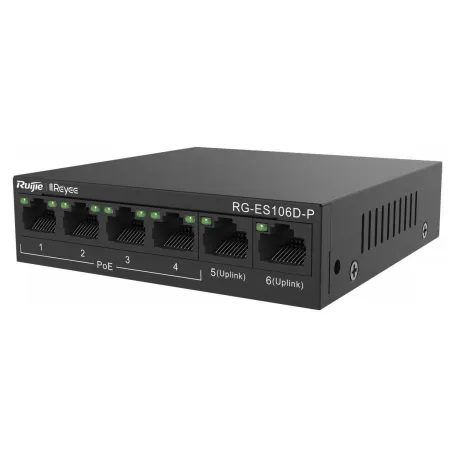

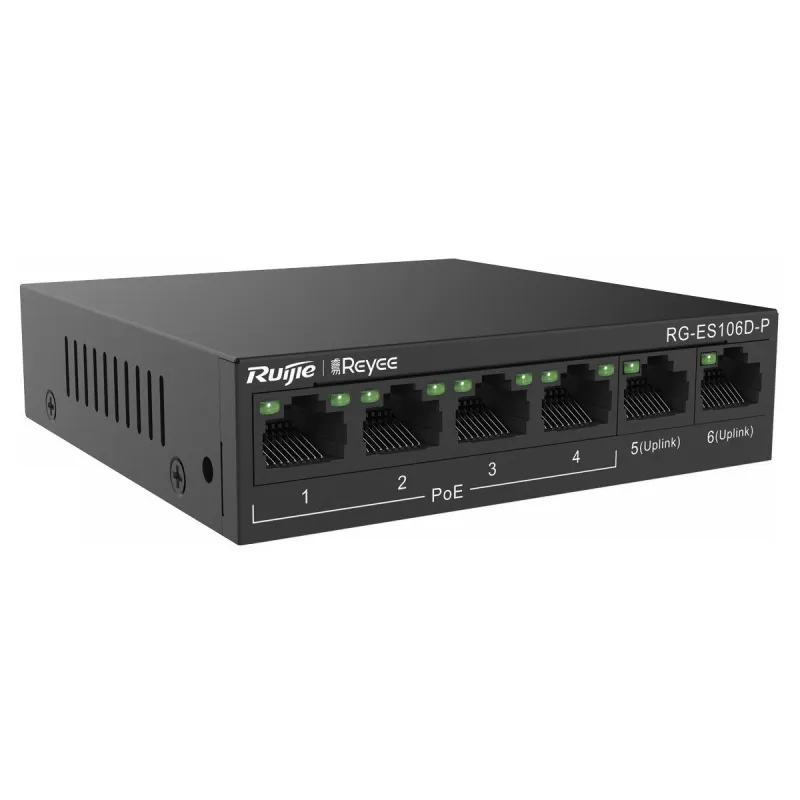

RG-ES106D-P Reyee POE Switch 6 Port จ่ายไฟ 4 Port 58W

Product Specification

Overview

Reyee RG-ES106D-P POE Switch 6 Port ความเร็ว 10/100 จ่ายไฟมาตรฐาน 802.3af/at 4 Port 58W, Uplink 2 Port  เคสเหล็ก ทนทาน

Ports

4*10/100 Mbps PoE/PoE+ Ports
2*10/100 Mbps uplink ports

Operating mode

Half-duplex, full-duplex, auto-negotiation mode
Support auto MDI/MDIX

Switching capacity

1.2Gbps

Package forwarding rate

0.89Mpps

Power supply

100-240V AC

Surge protection

Adapter:
Common mode: ±4 kV
Differential mode: ±2 kV
Network ports:
Non-PoE ports: ±4 kV
PoE ports: ±6 kV

Port Mode

Flow Control On
Flow Control Off
Port Isolation
from left to right

Power consumption

67W

PoE power budget

58W

Fan

NA

Dimensions  (W x D x H)

100 x 100 x 26 mm

Operating temperature

0℃ to 45℃

Storage temperature

-40℃ to 70℃

Operating humidity

10% to 90% RH

Storage humidity

5% to 95% RH

ประกัน

3 ปี
