แบรนด์: Ruijie Networks
RG-ES110D-P POE

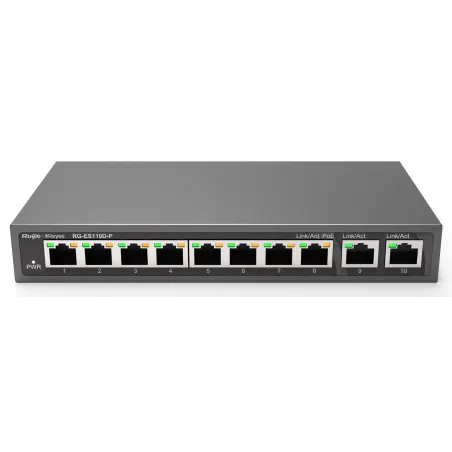

Reyee RG-ES110D-P POE Switch 10 Port ความเร็ว 10/100Mbps พร้อม 2 Port Uplink Gigabit จ่ายไฟมาตรฐาน 802.3af/at 8 Port 110W รองรับ Ruijie Cloud Monitor
ตัวแทนจำหน่าย Ruijie/Reyee อย่างเป็นทางการ
ทีมงาน Certificate Support
ต้องการรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet

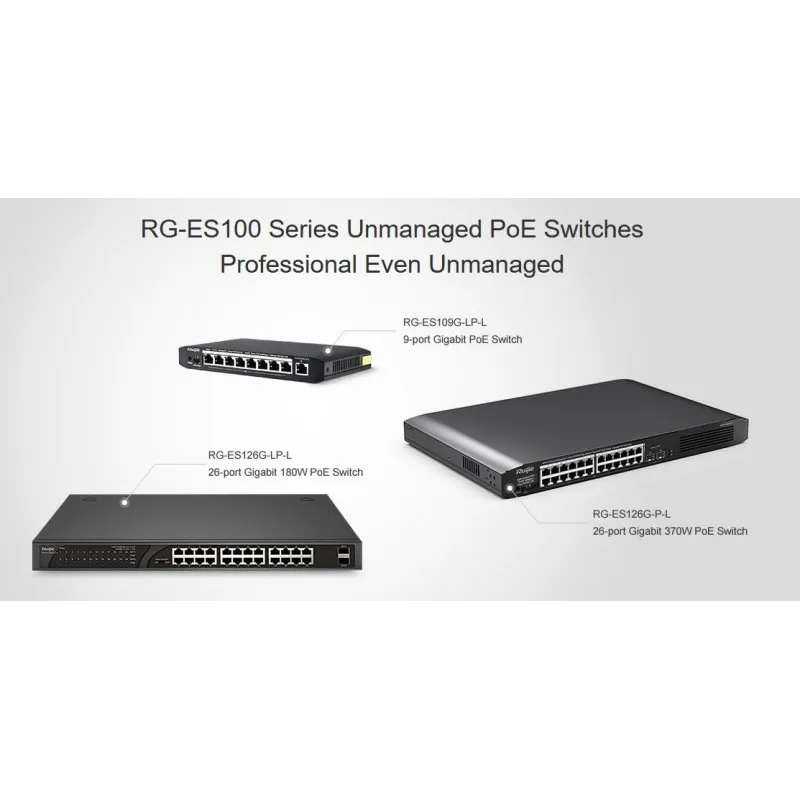

Ruijie RG-ES100 Series UnManaged Smart Switch Datasheet
Ruijie Reyee RG-ES100 Series Switches Hardware Installation and Reference Guide
Product Specification |
|
Overview |
Reyee RG-ES110D-P POE Switch 10 Port ความเร็ว 10/100Mbps พร้อม 2 Port Uplink Gigabit จ่ายไฟมาตรฐาน 802.3af/at 8 Port 110W เหมาะกับงานกล้อง CCTV |
Downlink Ports |
8 Port 10/100BASE-TX |
Uplink Ports |
2 x 10/100/1000BASE-T |
PoE/PoE+ ports |
8 |
Max. PoE budget |
110W |
Layer Type |
Unmanaged |
Switching capacity |
5.6 Gbps |
Forwarding rate |
4.17 Mpps |
MAC address table |
2000 |
Dimensions (W x D x H) |
190 mm × 100 mm × 28 mm |
Weight (With package) |
1.3 kg |
Auto/Full/Half Duplex Negotiation |
Support |
Auto MDI/MDIX |
Support |
Switching model |
Store-and-forward |
Cloud Management |

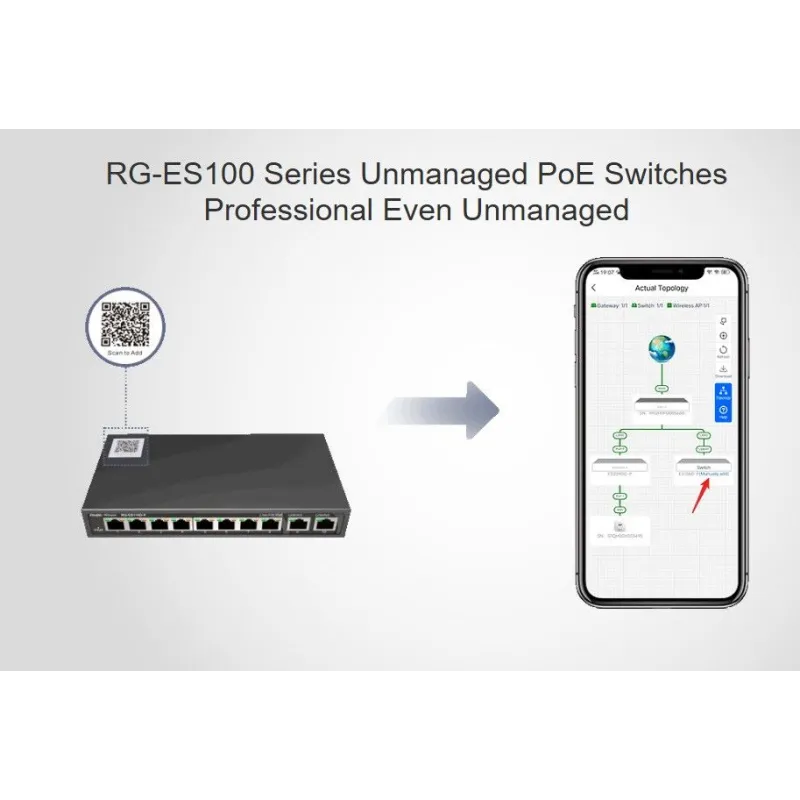

Cloud monitoring (ต้องมี Reyee Managed Switch อยู่ในระบบ) |
Flow Control |
Support |

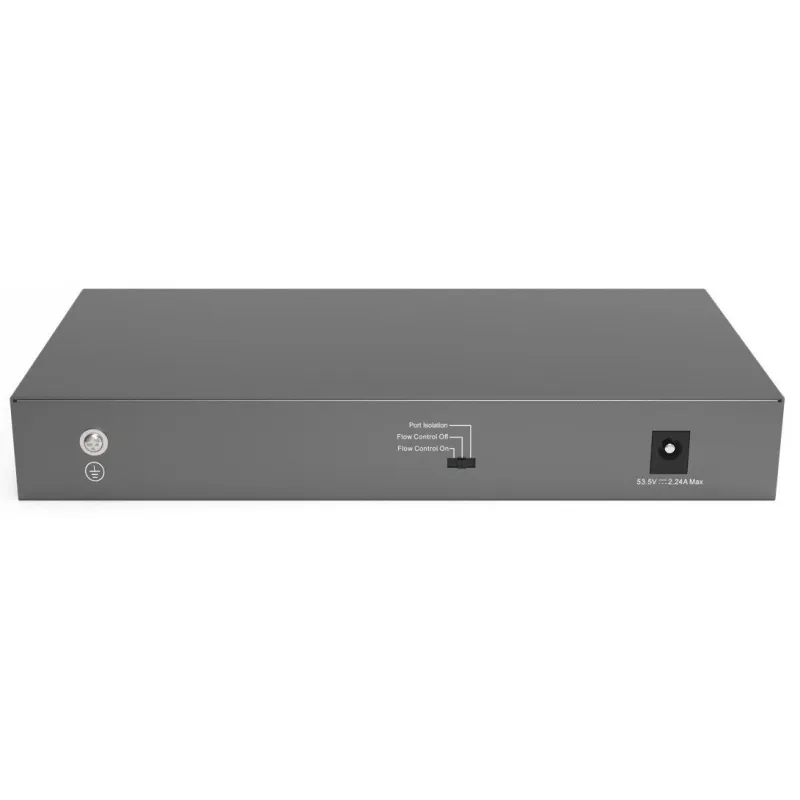

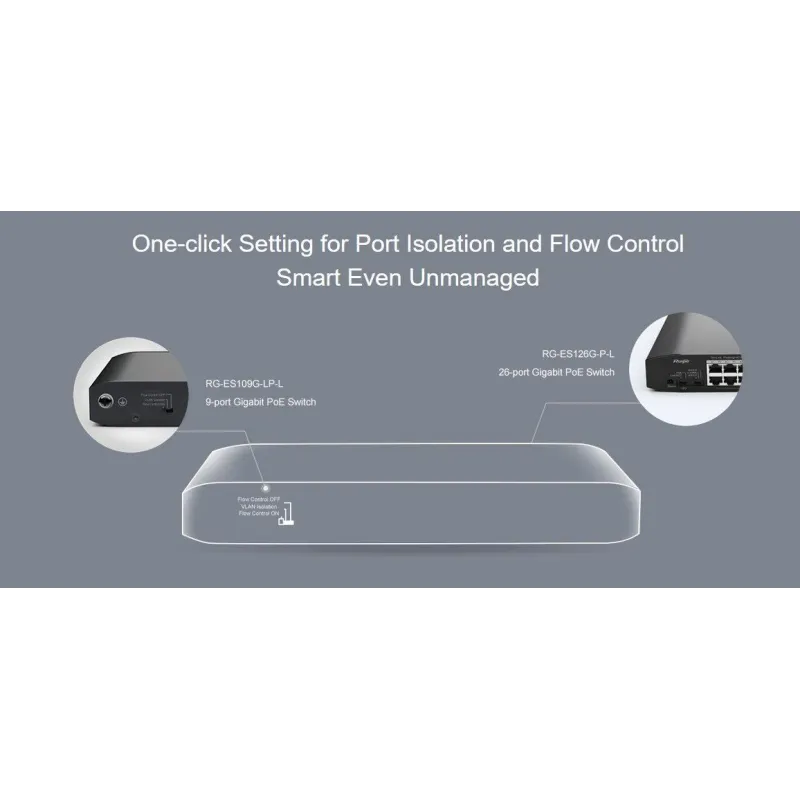

Port Isolation |
Support |
Power Consumption |
≤129W |
Power Supplies |
53V DC Power adapter, 2.24A |
Surge Protection |
6kV |
Fan |
Fanless |
Operating Temperature |
0°C to 45°C (32°F to 109°F) |
Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
Operating Humidity |
10% RH to 90% RH |
Storage Humidity |
5% RH to 95% RH |
Certificate |
CE, RoHS |
ประกัน |
3 ปี |
ประกัน |
3 ปี |
