Product Specification |
|
Overview |
Reyee RG-ES118S-LP POE Switch 16 Port ความเร็ว 100Mbps พร้อม 2 Port Uplink Combo (Lan/SFP) ความเร็ว Gigabit เหมาะกับงานกล้อง CCTV มี Port Gigabit เพื่อป้องกันคอขวด, รองรับ Ruijie Cloud Monitor |
Downlink Ports |
16 x 10/100BASE-TX |
Uplink Ports |
2 x 10/100/1000BASE-T Combo (RJ45/SFP) |
PoE/PoE+ ports |
16 |
Max. PoE budget |
120W |
Layer Type |
Unmanaged |
Switching capacity |
7.2 Gbps |
Forwarding rate |
5.36 Mpps |
MAC address table |
8000 |
Dimensions (W x D x H) |
440 mm × 208 mm × 44 mm |
Weight (With package) |
3.4 kg |
Auto/Full/Half Duplex Negotiation |
Support |
Auto MDI/MDIX |
Support |
Switching model |
Store-and-forward |
Cloud Management |
Cloud monitoring (ต้องมี Reyee Managed Switch อยู่ในระบบ) |
Flow Control |
Support |
Port Isolation |
Support |
Power Consumption |
≤148W |
Power Supplies |
100V AC to 240V AC, 2.5A |
Surge Protection |
6kV |
Fan |
Fanless |
Operating Temperature |
0°C to 45°C (32°F to 109°F) |
Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
Operating Humidity |
10% RH to 90% RH |
Storage Humidity |
5% RH to 95% RH |
Certificate |
CE, RoHS |
ประกัน |
3 ปี |

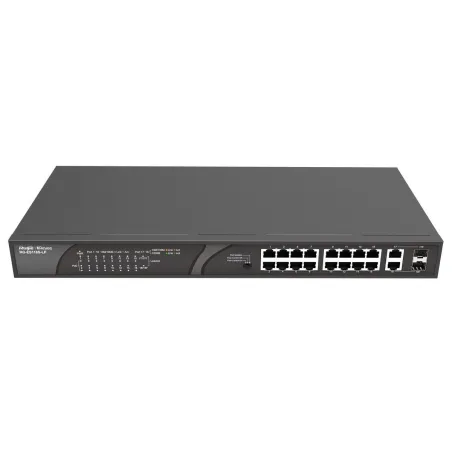

16-Port 10/100Mbps, 2-Port Gigabit Unmanaged Switch with 16 PoE+ Ports
* Unmanaged switch visible on cloud requires at least 1 managed switch in the same network.
Hardware flow control, guarantee the large buffer
Fit for various powered devices, single ports up to 30W
Strict Standards in PCB Design and Component Selection
