แบรนด์: Ruijie Networks
RG-ES124GD

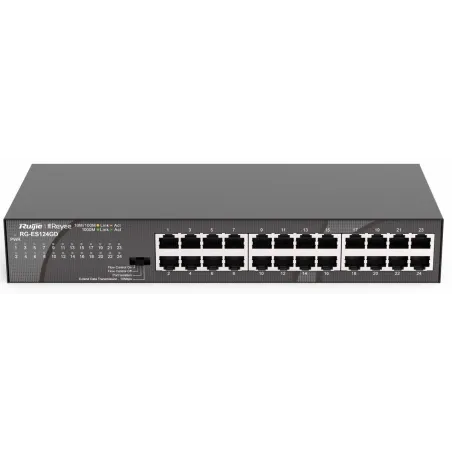

Reyee RG-ES124GD Unmanaged Gigabit Switch 24 Port แบบ Rack ความเร็ว Gigabit รองรับ Ruijie Cloud Monitor
ตัวแทนจำหน่าย Ruijie/Reyee อย่างเป็นทางการ
ทีมงาน Certificate Support
ต้องการรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet
Ruijie RG-ES100 Series UnManaged Smart Switch Datasheet
Ruijie Reyee RG-ES100 Series Switches Hardware Installation and Reference Guide
Product Specification |
|
Overview |
Reyee RG-ES124GD Unmanaged Gigabit Switch 24 Port แบบ Rack ความเร็ว Gigabit รองรับ Ruijie Cloud Monitor |
Downlink Ports |
24 x 10/100/1000BASE-T |
Uplink Ports |
N/A |
PoE/PoE+ ports |
N/A |
Max. PoE budget |
N/A |
Layer Type |
Unmanaged |
Switching capacity |
48 Gbps |
Forwarding rate |
35.71 Mpps |
MAC address table |
8000 |
Dimensions (W x D x H) |
280 mm x 126 mm x 44 mm |
Weight (With package) |
1.76 kg |
Auto/Full/Half Duplex Negotiation |
Support |
Auto MDI/MDIX |
Support |
Switching model |
Store-and-forward |
Cloud Management |
Cloud monitoring (ต้องมี Reyee Managed Switch อยู่ในระบบ) |
Flow Control |
Support |
Port Isolation |
Support |
Power Consumption |
≤ 16W |
Power Supplies |
100V AC to 240V AC, 0.5A |
Surge Protection |
6kV |
Fan |
Fanless |
Operating Temperature |
0°C to 45°C (32°F to 109°F) |
Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
Operating Humidity |
10% RH to 90% RH |
Storage Humidity |
5% RH to 95% RH |
Certificate |
CE, RoHS |
ประกัน |
3 ปี |
ประกัน |
3 ปี |
