Ruijie RG-ES100 Series UnManaged Smart Switch Datasheet
Ruijie Reyee RG-ES100 Series Switches Hardware Installation and Reference Guide
Product Specification | |

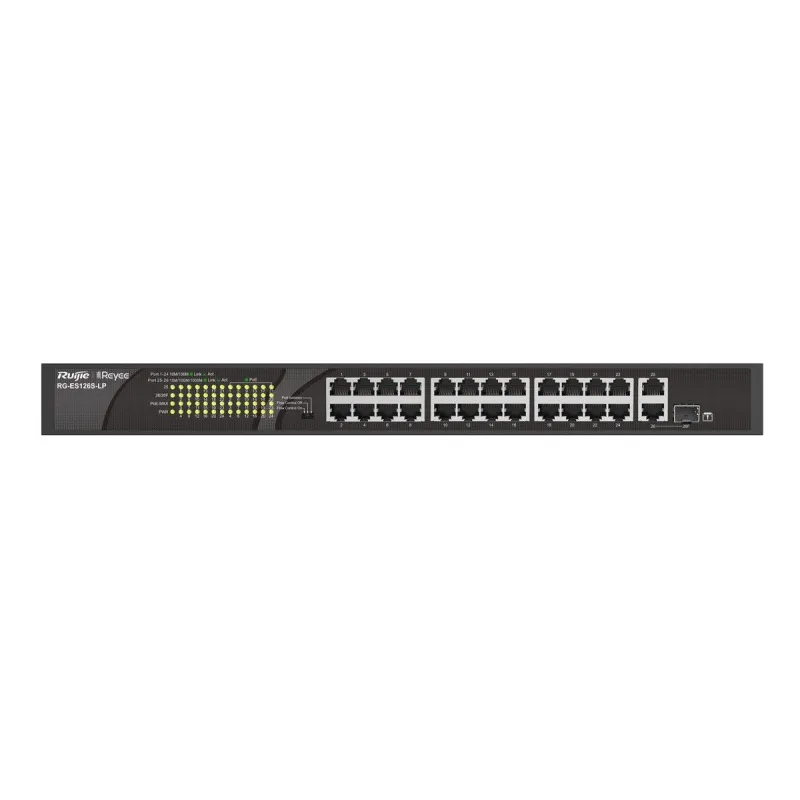

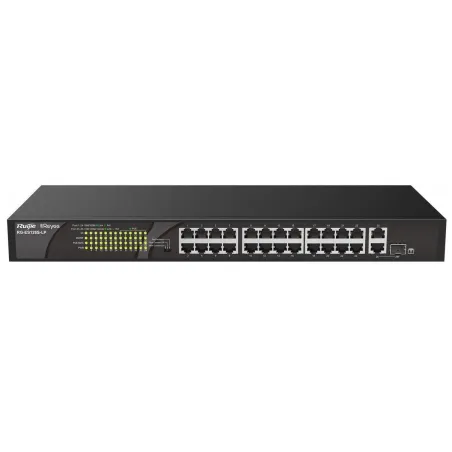

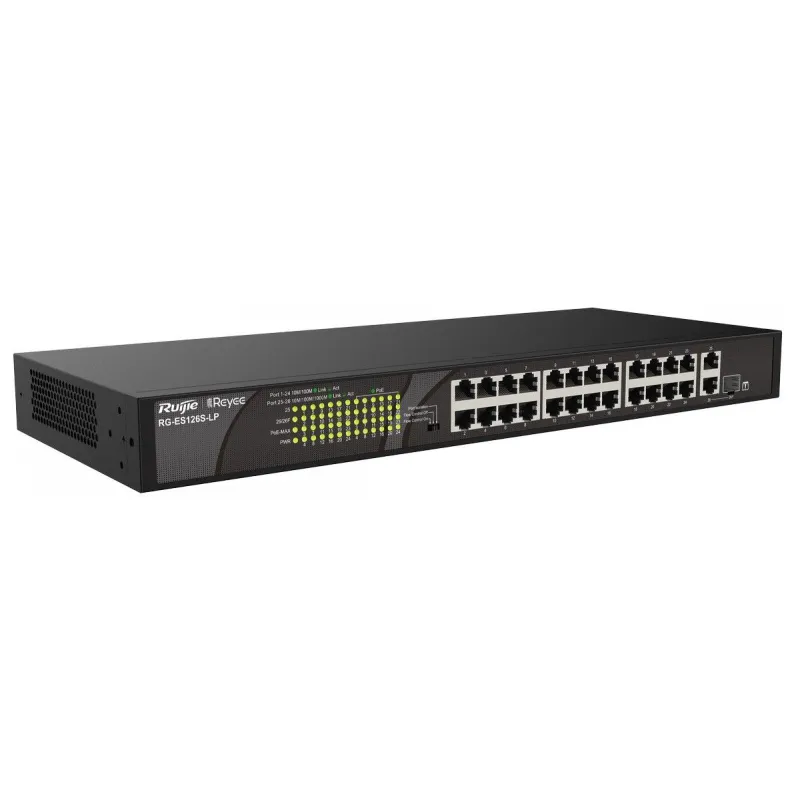

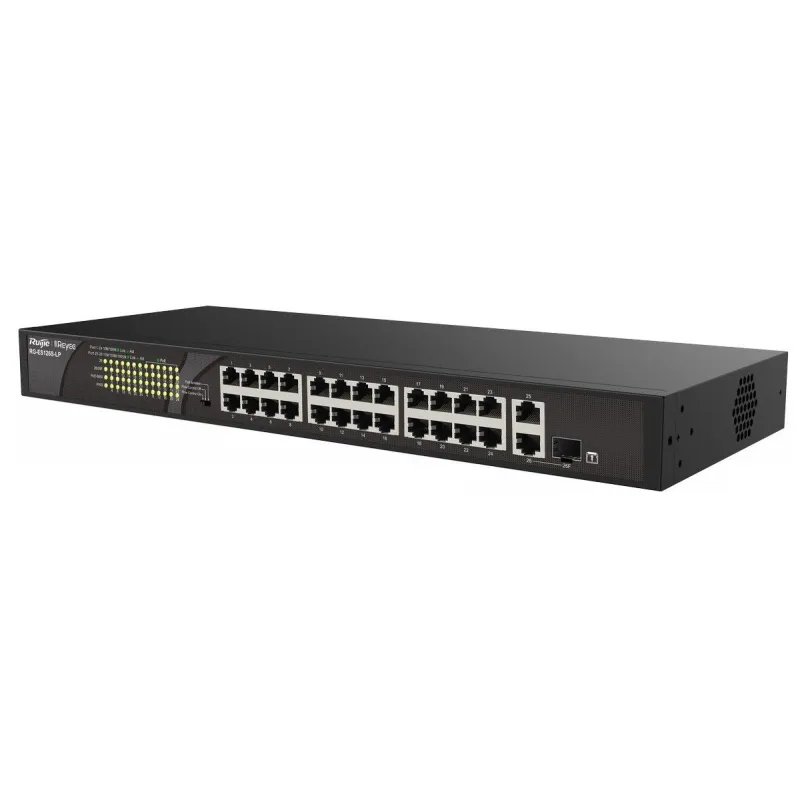

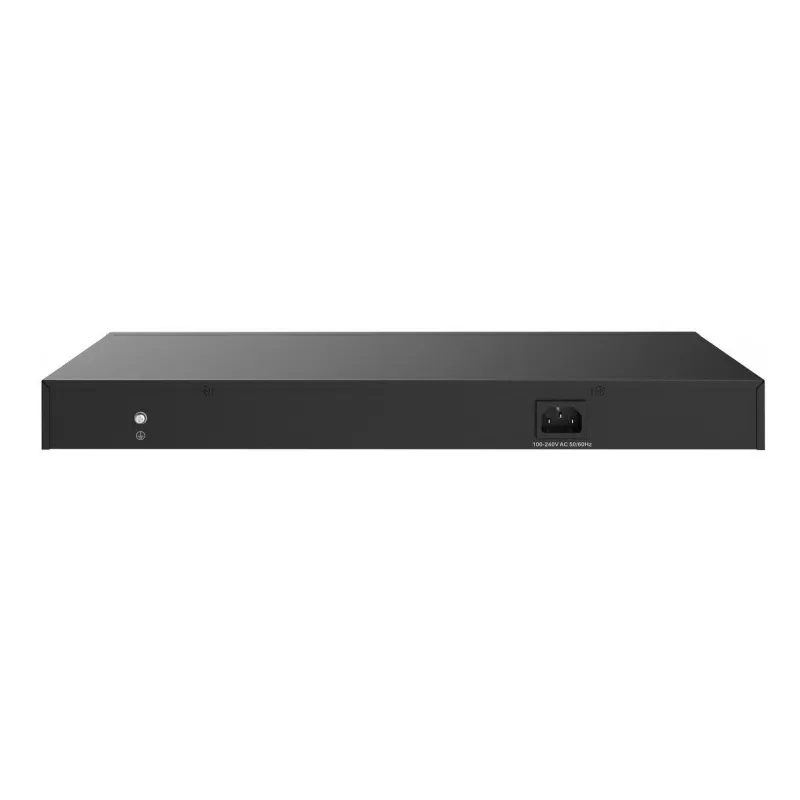

Overview | Reyee RG-ES126S-LP Gigabit POE Switch 24 Port ความเร็ว Gigabit จ่ายไฟมาตรฐาน 802.3af/at 24 Port 180W, Uplink 1 Combo Port (SFP/LAN)เคสเหล็ก ทนทาน |
Ports | 16 Ports 10/100 Mbps PoE/PoE+ Ports |
Operating mode | Half-duplex, full-duplex, auto-negotiation mode |
Switching capacity | 8.8Gbps |
Package forwarding rate | 6.55Mpps |
Power supply | 100-240V AC |
Surge protection | Switch-mode power supply: Common mode: ±6 kV Differential mode: ±6 kV Network ports: Non-PoE ports: ±4 kV PoE ports: ±6 kV |
Port Mode | Flow Control On |
Power consumption | 220W |
PoE power budget | 180W |
Fan | NA |
Dimensions (W x D x H) | 440 x 208 x 44 mm |
Operating temperature | 0℃ to 45℃ |
Storage temperature | -40℃ to 70℃ |
Operating humidity | 10% to 90% RH |
Storage humidity | 5% to 95% RH |
ประกัน | 3 ปี |
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
