Ruijie RG-ES100 Series UnManaged Smart Switch Datasheet Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide
Reyee RG-ES126S-LP V2 Highlight Features
Cloud visible even unmanaged switch
Intelligent PoE management
High-quality makes network reliable
Better quality design
Designed for various scenariosLarge buffer for smooth data transmission
Product Specification
Overview

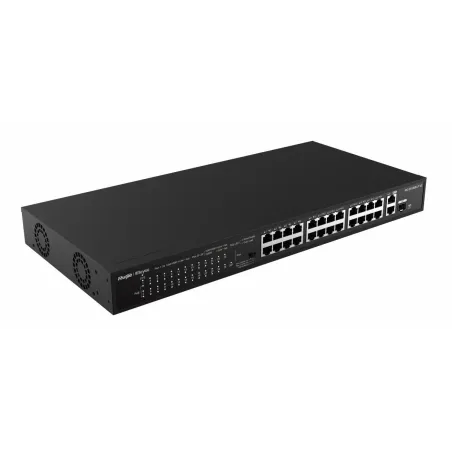

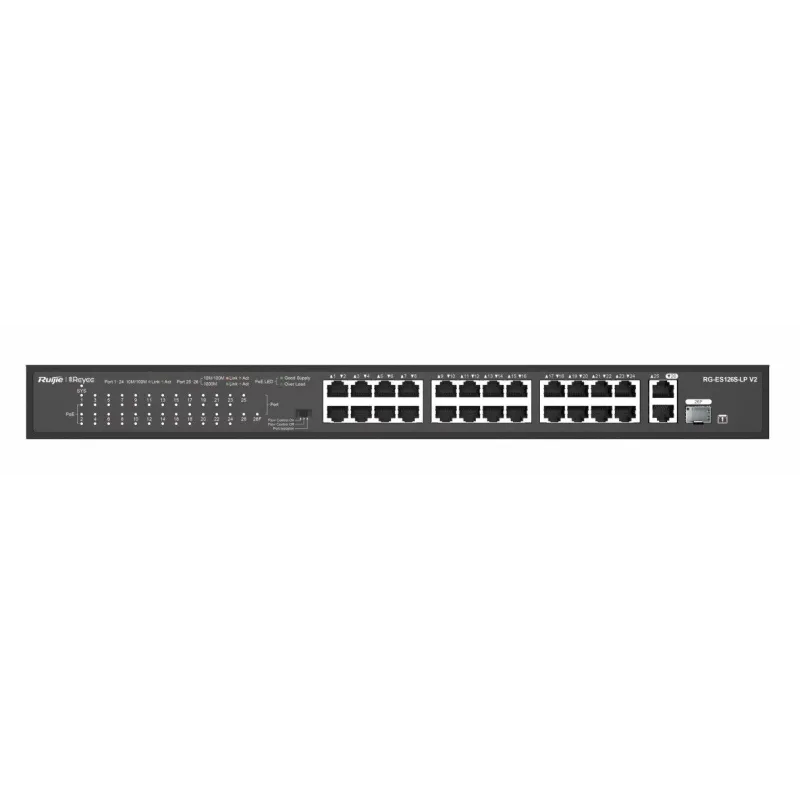

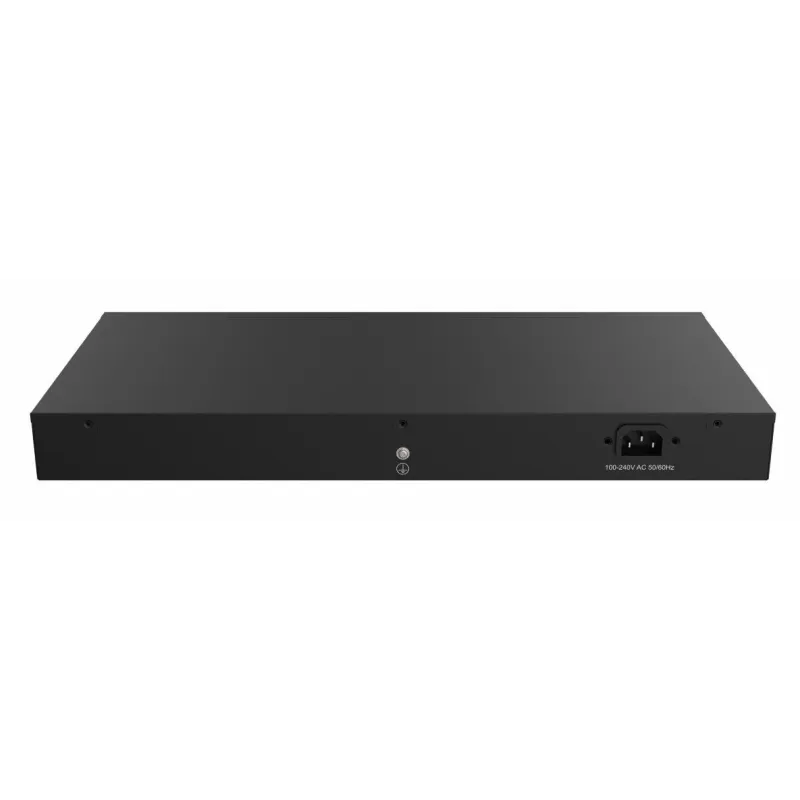

Reyee RG-ES126S-LP V2 100Mbps POE Switch 26 Port ความเร็ว 10/100Mbps จ่ายไฟมาตรฐาน 802.3af/at 24 Port 370W, Uplink 2 Port Gigabit
Downlink Ports
24 x 10/100BASE-TX
Uplink Ports
2 x 10/100/1000BASE-T with 1 Combo port
PoE/PoE+ ports
24
Max. PoE budget
180W
Switching capacity
8.8 Gbps
Forwarding rate
6.55 Mpps
MAC address table
16000
Dimensions (W x D x H)
440 mm × 208 mm × 44 mm
Weight (With package)
3 kg
Auto/Full/Half Duplex Negotiation
Support
Auto MDI/MDIX
Support
Cloud Management
Cloud monitoring
Flow Control
Support
Port Isolation
Support
Power Consumption
<220W
Power Supplies
100V AC to 240V AC, 4A
Surge Protection
6kV
Fan
Support
Operating Temperature
0°C to 45°C (32°F to 109°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Operating Humidity
10% RH to 90% RH
Storage Humidity
5% RH to 95% RH
MTBF
> 200,000
Certificate
CE, RoHS
ประกัน
3 ปี
RG-ES126S-LP-V2
24-Port 10/100Mbps, 2-Port Gigabit Unmanaged Switch with 24 PoE+ Ports
Cloud Visible Even Unmanaged Switch*
* Unmanaged switch visible on cloud requires at least 1 managed switch in the same network.
Large Buffer for Smooth CCTV Transmission
Hardware flow control, guarantee the large buffer
Intelligent PoE Management
Fit for various powered devices, single port up to 30W
High-quality Makes Network Reliable
Stable without frequent reboot
Better quality design
Strict standards in PCB design and component selection
Designed for Various Scenarios
รายละเอียดสินค้า
สินค้ามีในสต็อค
20 รายการ
ข้อมูลสินค้า
ประเภท Switch
UnManaged
ความเร็ว Port Lan
100Mbps
จำนวน Port Lan
24 Port
มาตรฐานจ่ายไฟ POE
802.3af/at (30W)
จำนวน Port POE
24 Port
มี Uplink Port Lan Gigabit
Yes
