4 10/100/1000 Base-T ports (PoE/PoE+) 2 10/100/1000 Base-T port Uplink
Maximum output power per PoE port
30W
Maximum PoE output power per switch
จ่ายไฟสูงสุด 54W
Switching capacity
12Gbps
Packet forwarding rate
8.9Mpps
Surge protection
Common mode: 4KV
Electrostatic discharge
Air discharge: 6KV Contact discharge: 4KV
Power consumption
≤60W

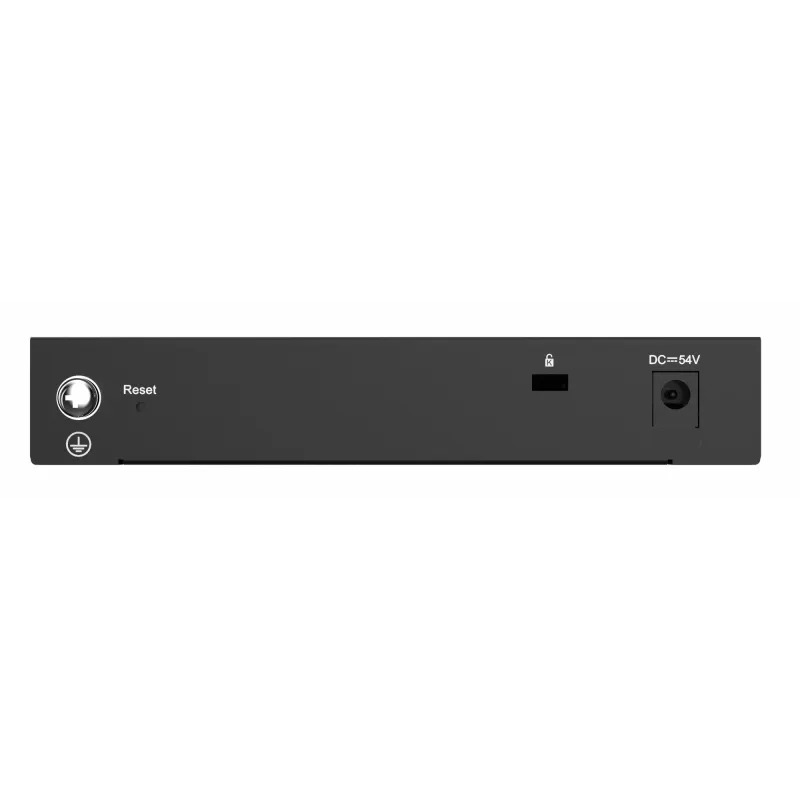

Power supply
External power adapter
Dimensions (W x D x H)
148*78*26mm
MTBF
>200K
Operating temperature
0 to 40°C
Storage temperature
-40~70ºC
Operating humidity
10% to 90% RH
Storage humidity
5% to 95% RH
MAC capacity
4K
Static MAC address
16
VLAN
Support 802.1Q VLAN
Port management
Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off
Security
Support broadcast storm suppression, port speed limit, port isolation
L2 features

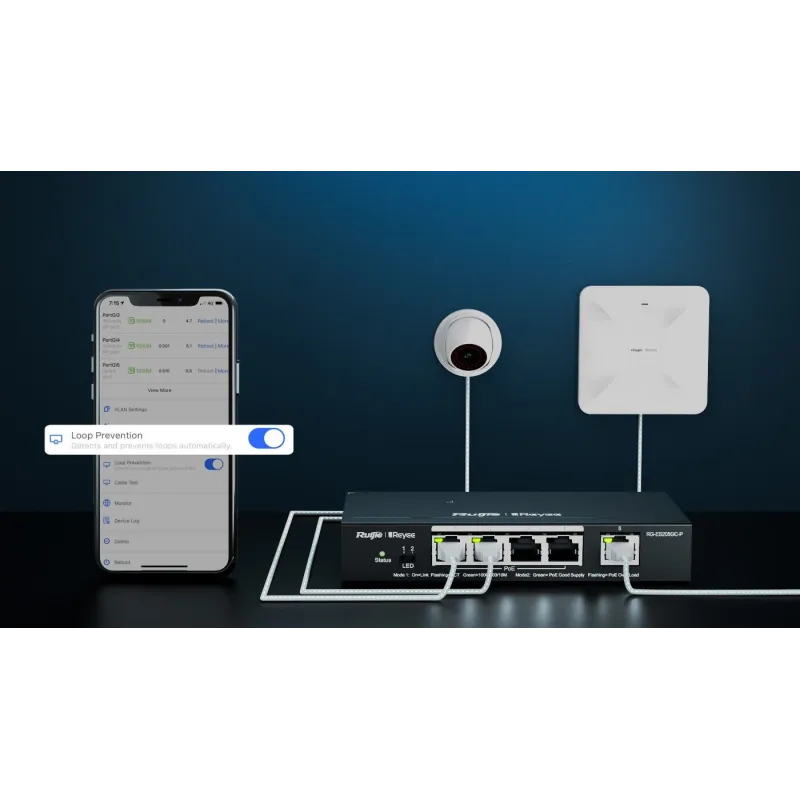

Support port mirroring, loop protection, cable detection
Management

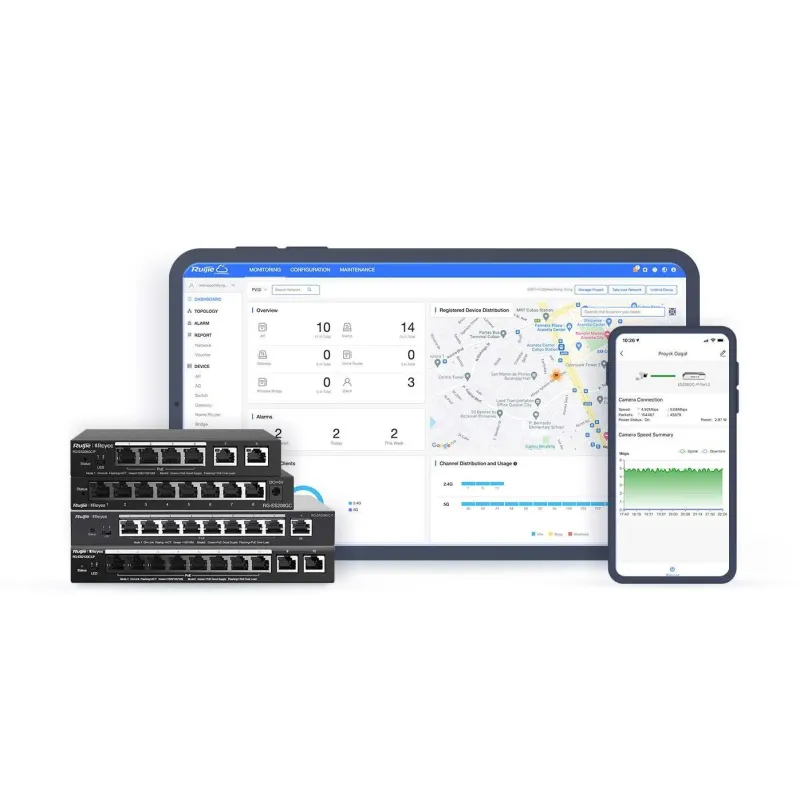

Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app
