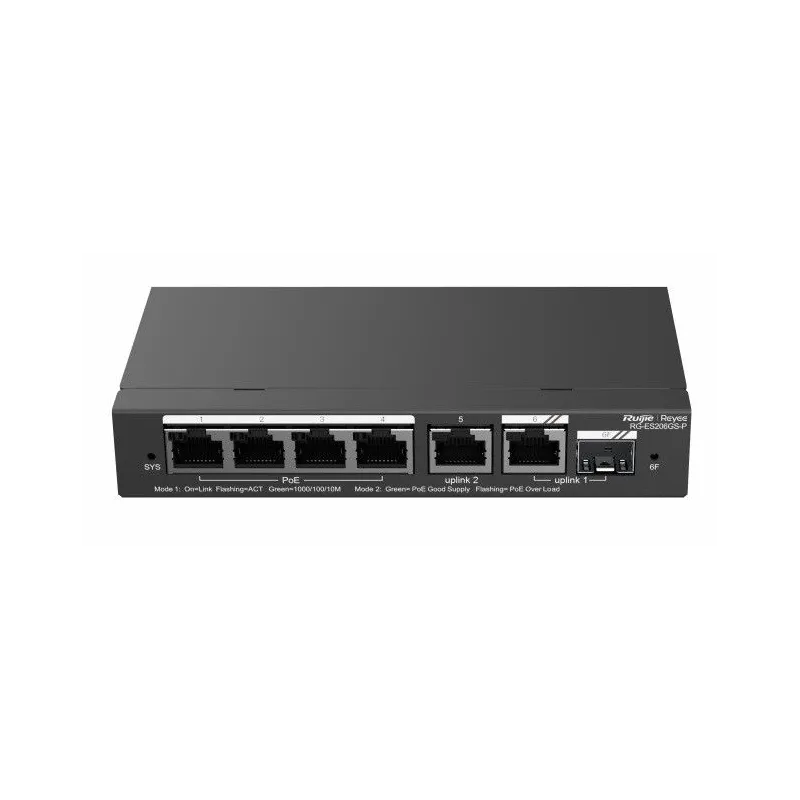

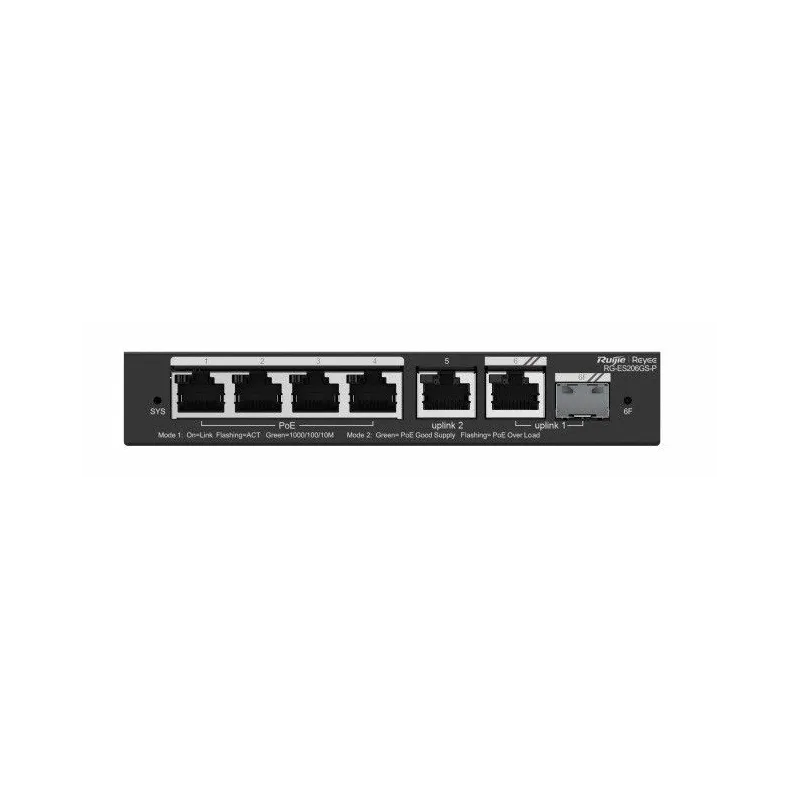

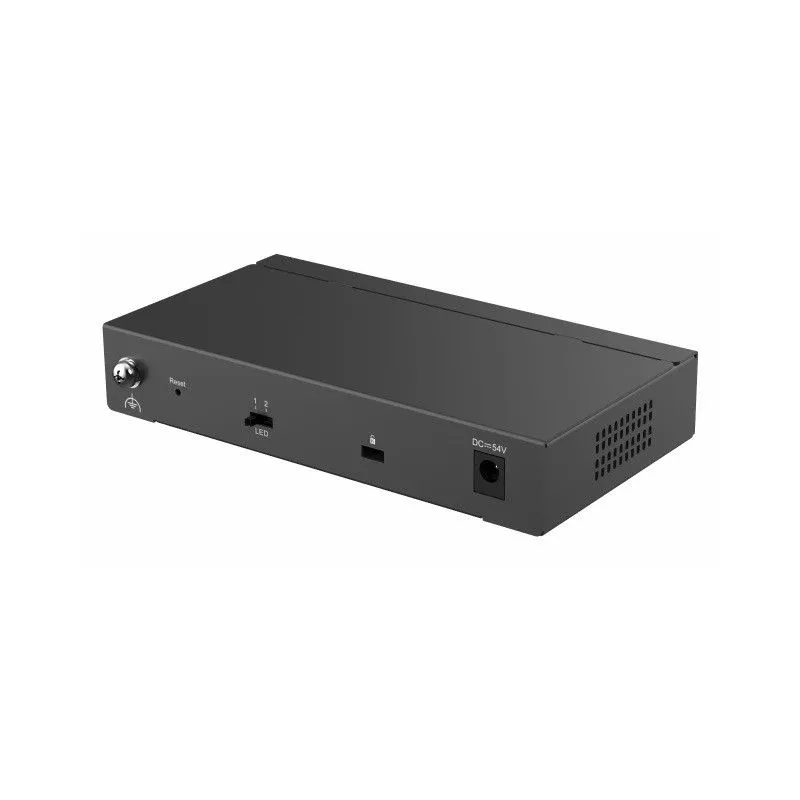

RG-ES206GS-P
Reyee Cloud Managed Smart Switch for IP surveillance 6 Port Gigabit, จ่ายไฟ POE 4 Port มาตรฐาน 802.3af/at กำลังไฟสูงสุด 54W, 1 Port SFP, รองรับการบริหารจัดการผ่าน Ruijie Cloud
ตัวแทนจำหน่าย Ruijie อย่างเป็นทางการ พร้อมราคาส่วนลดพิเศษ
Support / ติดตั้งด้วยทีมงาน Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Click ต้องการใบเสนอราคา
Review Ruijie RG-ES200 Series Cloud Managed POE Switch สำหรับงาน CCTV, WIFI
Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruiji ผ่าน Cloud ฟรี
RG-ES206GC-P Quick Installation Guide
Ruijie RG-ES200 Series Switches Hardware Installation and Reference Guide
RG-ES200 Switches Web-based Configuration Guide ESW_1.0(1)B1P20 (V1.0)
L2 Managed Gigabit POE Switch 6 Port ความเร็ว Gigabit, สามารถจ่ายไฟ POE มาตรฐาน 802.3af/at (15.4W/30W) ได้ 4 Port รวมกำลังไฟสูงสุด 54W
*** กรณีกล้องพวก Speed Dome หรือ Access Point ประเภท 3x3, 4x4 ที่ใช้กำลังไฟสูงๆ (เกิน 15.4W) ต้องคำนวนให้ดีครับ หรือ ส่ง Spec อุปกรณ์ให้ทางร้านคำนวนให้ได้เลยครับ
มี Port Uplink Gigabit อีก 2 Port สำหรับเชื่อมต่อกับ Router หรือ Uplink ไปยัง Switch และ Port SFP Combo 1 Port สำหรับใช้ร่วมกับสาย Fiber Optice
POE Switch RG-ES206GS-P Product Specification | |
10/100/1000Base-T ports | 6 |
1000Base-X SFP ports | 1 |
PoE/PoE+ ports | 4 |
Max. PoE budget | 54W |
Layer Type | Layer 2 |
Switching capacity | 12 Gbps |
Forwarding rate | 8.93 Mpps |
MAC address table | 4000 |
Maximum VLAN Support | 16 |
Dimensions (W x D x H) | 148 mm x 78 mm x 26 mm |
Weight (With package) | 0.79 kg |
MTBF (Hours) | > 200,000 |
Software Features | |
10/100/1000M Auto/Full/Half Duplex Negotiation | Support |
Flow Control | Support |
Storm Suppression | Support |
Management IP | 10.44.77.200 |
VLAN | Support 802.1Q VLAN*** สร้าง VLAN ได้สูงสุด 16 VLAN |
Port-based VLAN | Support |
DHCP Client | Support |
DHCP Snooping | Support |
Many-to-one Port Mirroring | Support |
Downlink Loop Protection | Support |
Loop Disabled Port | Support |
Disconnection Duration | Support |
Cable Testing | Support |
Management | Web-based ManagementRuijie Cloud ManagementRuijie App Cloud |
Reset Button | Front |
Power Supply Slot | Single, fixed power supply |
Power Consumption | ≤ 60W |
Power Supplies | 100 - 240V AC, 6A |
Fan Adaptive Speed Adjustment | Support |
Acoustic Noise | Noiseless |
Operating Temperature | 0°C to 40°C(32°F to 104°F) |
Storage Temperature | -40°C to 70°C(-40°F to 158°F) |
Operating Humidity | 10% to 90% RH |
Storage Humidity | 5% to 95% RH |
Port Surge | 4 kV |
Certificate | CE, RoHS |
ประกัน | ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 3 ปี |
