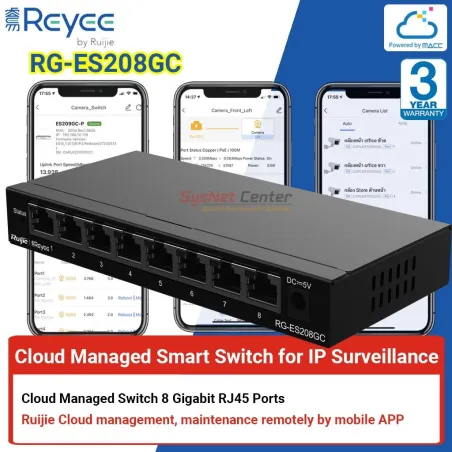

RG-ES208GC Reyee Cloud Managed Smart Switch 8 Port Gigabit

Product Specification

Overview

Reyee RG-ES208GC Cloud Managed Smart Switch for IP surveillance 8 Port Gigabit

รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

Ports

8 10/100/1000 Base-T Ports

Maximum output power per PoE port

-

Maximum PoE output power per switch

-

Switching capacity

16Gbps

Packet forwarding rate

11.9Mpps

Switching Cache

1.5Mbit

Speed / Duplex mode

Auto / Half / Full duplex Speed auto / 10/ 100 /1000

MAC address

4K

VLAN

Support 802.1Q VLAN

Maximum Number of VLANs

16

Allowed VLAN ID

1 ~ 4094

Port-based VLAN

Support

Flow Control

Support

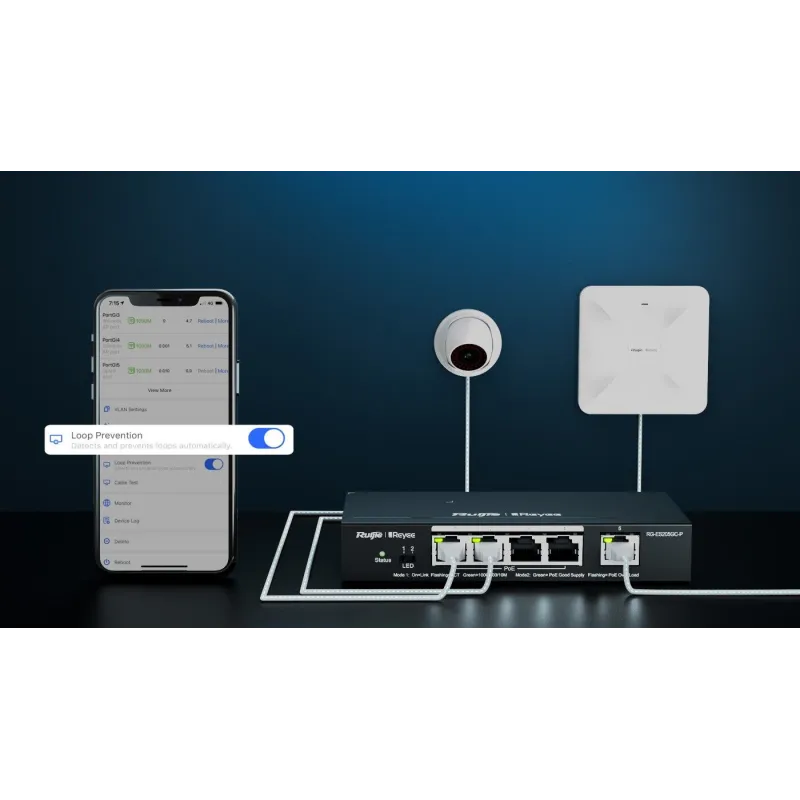

Loop Protection

Support

Unknown Unicast Suppression

Support

Multicast / Broadcast Storm Suppression

Support

Mirroring

Many-to-One Mirroring

Port Isolation

Support

Cable Testing

Support

ICMP Ping

Support

DNS

DNS Client

Telnet

Support

MACC

Support

Port Surge

Common mode: 4KV

Electrostatic Discharge

Air discharge: 6KV
Contact discharge: 4KV

Power Consumption

≤ 4W

Power supply

External power adapter
100-240V

Dimensions (W x D x H)

160 mm x 75 mm x 24 mm

Weight

0.49kg (with package)

MTBF

>200K

Operating temperature

0 to 40°C

Storage temperature

-40~70ºC

Operating humidity

10% to 90% RH

Storage humidity

5% to 95% RH

Operating Altitude

-500 ~ 5000 meters

FAN

Fanless

Management

Support management and configuration through web management interface, MACC cloud platform and mobile app

Safety Standard Ground Resistance

GB4943-2011, EN 62638-1

EMC

GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035

Port management

Support port status display, port traffic statistics, port duplex / negotiation rate configuration, flow control configuration

Security

Support broadcast storm suppression, port speed limit, port isolation

ประกัน

ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 3 ปี
