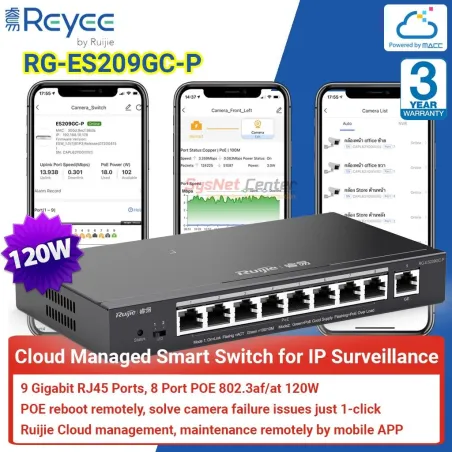

Reyee RG-ES209GC-P Cloud Managed Smart POE Switch 9 Port Gigabit, จ่ายไฟ POE 8 Port 802.3at จ่ายไฟสูงสุด 120W รองรับ Web-based Management, VLAN, Remote POE Reboot, Loop Detection, Managed ผ่าน Ruijie Cloud Controller
Review Ruijie RG-ES200 Series Cloud Managed POE Switch สำหรับงาน CCTV, WIFI
Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี
Reyee Series Implementation Cookbook V1.0
RG-ES200 Series Web-Based Configuration Guide
Ruijie RG-ES200 Series Switches Hardware Installation and Reference Guide
RG-ES205GC Quick Installation Guide
RG-ES200 Series Datasheet
L2 Managed Gigabit POE Switch 9 Port ความเร็ว Gigabit, สามารถจ่ายไฟ POE มาตรฐาน 802.3af/at (15.4W/30W) ได้ 8 Port รวมกำลังไฟสูงสุด 120W เฉลี่ยต่อ Port 15W
*** กรณีกล้องพวก Speed Dome หรือ Access Point ประเภท 3x3, 4x4 ที่ใช้กำลังไฟสูงๆ (เกิน 15.4W) ต้องคำนวนให้ดีครับ หรือ ส่ง Spec อุปกรณ์ให้ทางร้านคำนวนให้ได้เลยครับ
หรือ
ถ้าใช้กับ Access Point ที่เป็น WIFI 6 มีการติดตั้งหลายๆตัว ค่า Forwarding Rate ของ Switch อาจจะไม่พอ แนะนำเป็น Reyee Series NBS3100 ขึ้นไปจะดีกว่าครับ
มี Port Uplink Gigabit อีก 1 Port สำหรับเชื่อมต่อกับ Router หรือ Uplink ไปยัง Switch
Product Specification | |
Ports | 810/100/1000 Base-T ports (PoE/PoE+) |
Maximum output power per PoE port | 30W |
Maximum PoE output power per switch | กำลังไฟสูงสุด 120W |
Switching capacity | 18Gbps |
Packet forwarding rate | 13.392Mpps |
Surge protection | Common mode: 4KV |
Electrostatic discharge | Air discharge: 6KV |
Power consumption | ≤130W |
Power supply | External power adapter |
Dimensions (W x D x H) | 202*108*28mm |
MTBF | >200K |
Operating temperature | 0 to 40°C |
Storage temperature | -40~70ºC |
Operating humidity | 10% to 90% RH |
Storage humidity | 5% to 95% RH |
MAC capacity | 4K |
Static MAC address | 16 |
VLAN | Support 802.1Q VLAN |
Port management | Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off |
Security | Support broadcast storm suppression, port speed limit, port isolation |
L2 features | Support port mirroring, loop protection, cable detection |
Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
ประกัน | ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 3 ปี |
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
