แบรนด์: Ruijie Networks

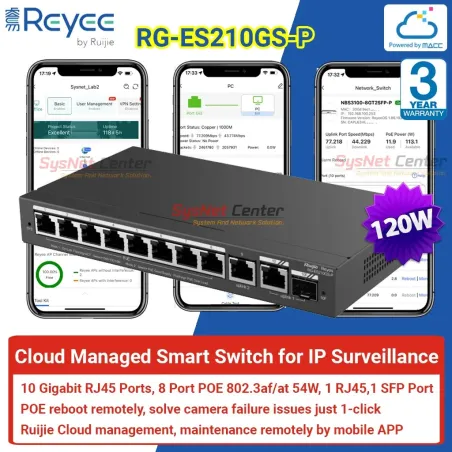

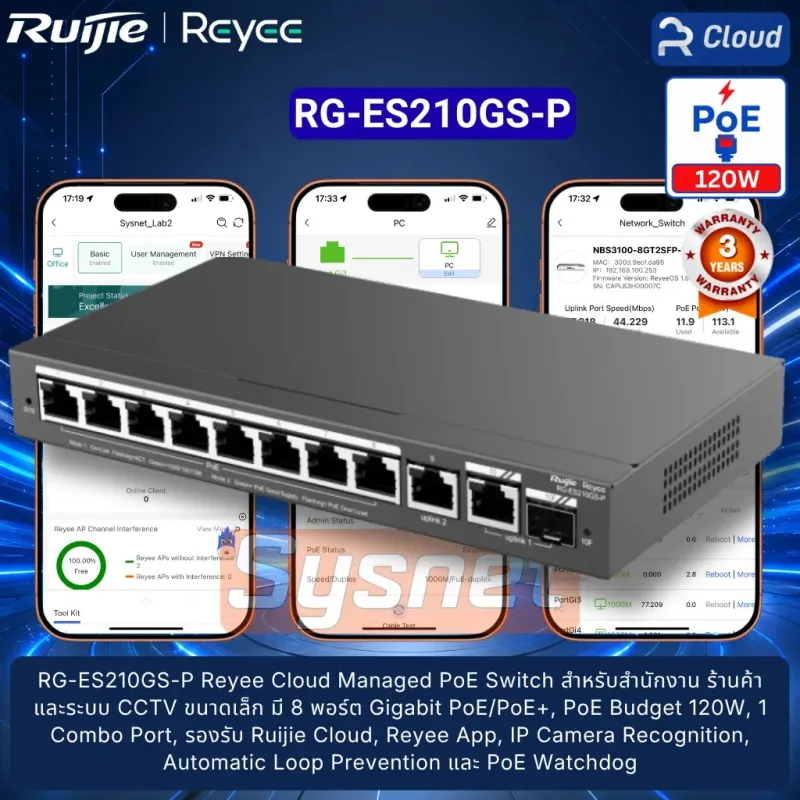

RG-ES210GS-P
Reyee Cloud Managed Smart Switch for IP surveillance 10 Port Gigabit, จ่ายไฟ POE 8 Port มาตรฐาน 802.3af/at กำลังไฟสูงสุด 120W, 1 Port SFP, รองรับการบริหารจัดการผ่าน Ruijie Cloud
ตัวแทนจำหน่าย Ruijie/Reyee อย่างเป็นทางการ
ทีมงาน Certificate Support
ต้องการรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet
Review Ruijie RG-ES200 Series Cloud Managed POE Switch สำหรับงาน CCTV, WIFI
Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruiji ผ่าน Cloud ฟรี
RG-ES210GC-P Quick Installation Guide
Ruijie RG-ES200 Series Switches Hardware Installation and Reference Guide
RG-ES200 Switches Web-based Configuration Guide ESW_1.0(1)B1P20 (V1.0)
RG-ES200 Series Datasheet

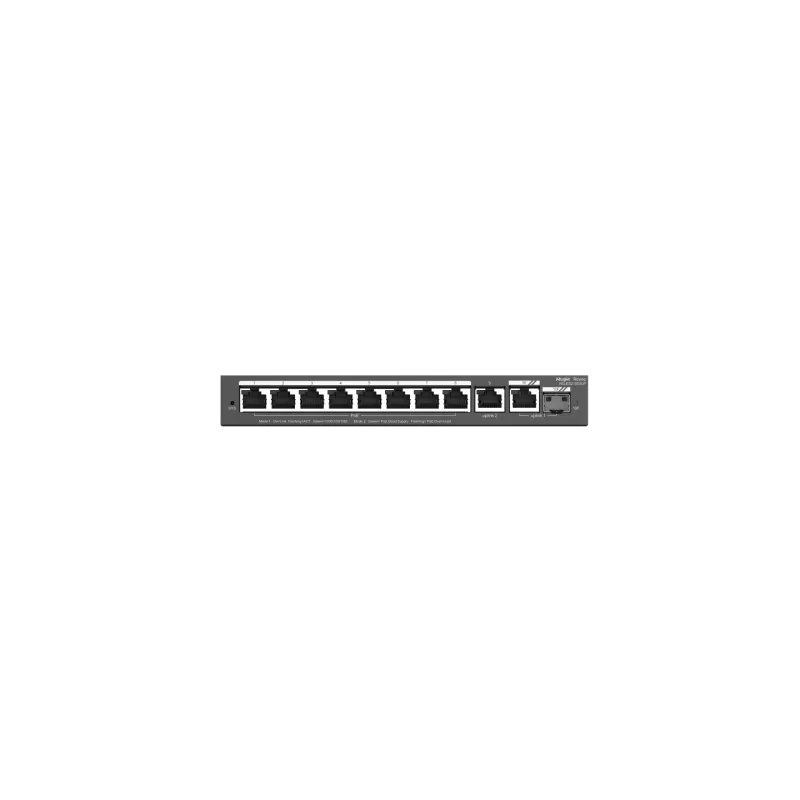

L2 Managed Gigabit POE Switch 10 Port ความเร็ว Gigabit, สามารถจ่ายไฟ POE มาตรฐาน 802.3af/at (15.4W/30W) ได้ 8 Port รวมกำลังไฟสูงสุด 120Wห้ได้เลยครับ
มี Port Uplink Gigabit อีก 2 Port สำหรับเชื่อมต่อกับ Router หรือ Uplink ไปยัง Switch และ Port SFP Combo 1 Port สำหรับใช้ร่วมกับสาย Fiber Optice
Product Specification |
|
10/100/1000Base-T ports |
8 |
1000Base-X SFP ports |
1 Combo SFP |
PoE/PoE+ ports |
8 |
Max. PoE budget |
120W |
Layer Type |
Layer 2 |
Switching capacity |
20 Gbps |
Forwarding rate |
814.8 Mpps |
MAC address table |
4000 |
Maximum VLAN Support |
16 |
Dimensions (W x D x H) |
202 mm x 108 mm x 28 mm |
Weight (With package) |
1.38 kg |
MTBF (Hours) |
> 200,000 |
Software Features |
|
10/100/1000M Auto/Full/Half Duplex Negotiation |
Support |
Flow Control |
Support |
Storm Suppression |
Support |
Management IP |
10.44.77.200 |
VLAN |
Support 802.1Q VLAN |
Port-based VLAN |
Support |
DHCP Client |
Support |
DHCP Snooping |
Support |
Many-to-one Port Mirroring |
Support |
Downlink Loop Protection |
Support |
Loop Disabled Port |
Support |
Disconnection Duration |
Support |
Cable Testing |
Support |
Management |
Web-based Management |
Reset Button |
Front |
Power Supply Slot |
Single, fixed power supply |
Power Consumption |
≤ 60W |
Power Supplies |
100 - 240V AC, 6A |
Fan Adaptive Speed Adjustment |
Support |
Acoustic Noise |
Noiseless |
Operating Temperature |
0°C to 40°C |
Storage Temperature |
-40°C to 70°C |
Operating Humidity |
10% to 90% RH |
Storage Humidity |
5% to 95% RH |
Port Surge |
4 kV |
Certificate |
CE, RoHS |
ประกัน |
ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 3 ปี |
