Review Ruijie RG-ES200 Series Cloud Managed POE Switch สำหรับงาน CCTV, WIFI
Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี
Reyee Series Implementation Cookbook
RG-ES200 Series Web-Based Configuration Guide
Ruijie RG-ES200 Series Switches Hardware Installation and Reference Guide
RG-ES224GC Quick Installation Guide
RG-ES200 Series Datasheet
Product Specification |

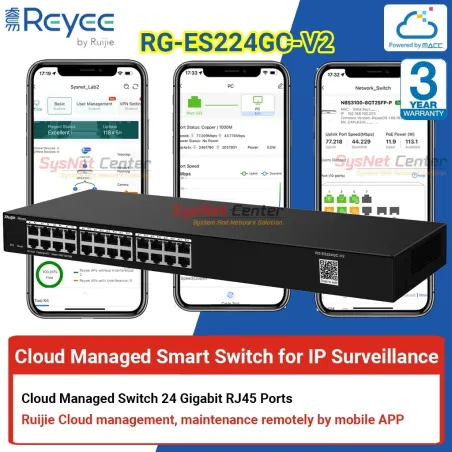

Overview | Reyee RG-ES224GC-V2 Cloud Managed Smart Switch for IP surveillance 24 Port Gigabit รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
ICT Spec อุปกรณ์กระจายสัญญาณ (L2 Switch) ขนาด 24 ช่อง แบบที 1
|
Ports | 24 10/100/1000 Base-T Ports
|
Maximum output power per PoE port | - |
Maximum PoE output power per switch | - |
Switching capacity | 48Gbps |
Forwarding rate | 35.71Mpps |
Packet Buffer | 4.1 Mbit |
Surge protection | Common mode: 6KV |
Electrostatic discharge | Air discharge: 6KV
Contact discharge: 4KV |
Power consumption | ≤14W |
Power supply | Built-in power supply |
Dimensions (W x D x H) | 440x165x44mm |
MTBF | >200K |
Operating temperature | 0°C to 50°C (32°F to 122°F) |
Storage temperature | -40°C to 70°C (-40°F to 158°F) |
Operating humidity | 10% to 90% RH |
Storage humidity | 5% to 95% RH |
Port Surge | 4 kV |
MAC capacity | 8K |
Static MAC address | 16 |
VLAN | Support 802.1Q VLAN |
Maximum VLAN Support | 16 |
Port management | Support port status display, port traffic statistics, port duplex / negotiation rate configuration, flow control configuration |
Security | Support broadcast storm suppression, port speed limit, port isolation |
L2 features | Support port mirroring, loop protection, cable detection |
Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
Certificate | CE, RoHS |
ประกัน | 3 ปี |

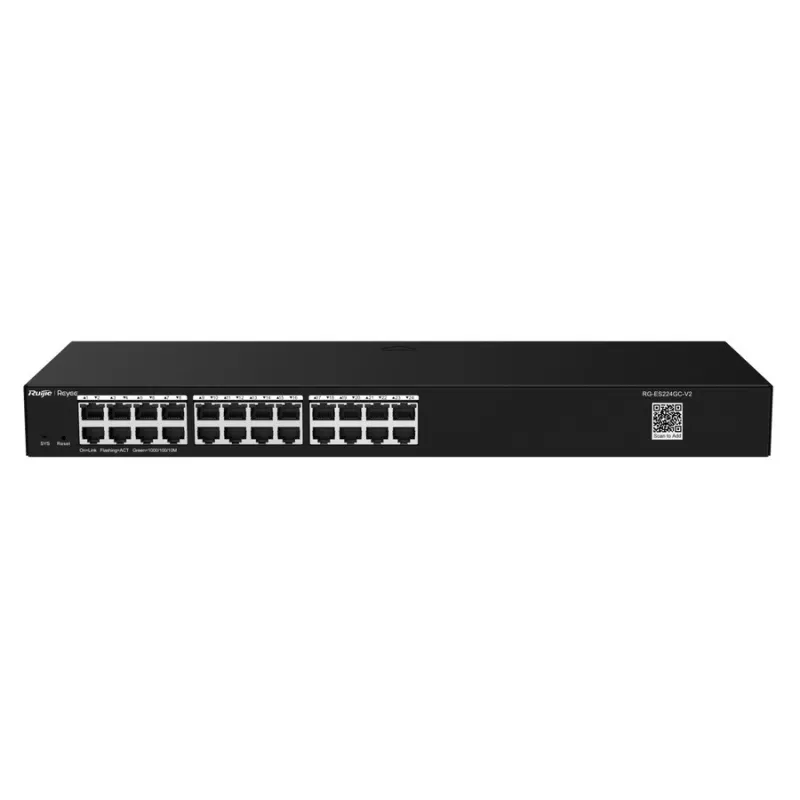

RG-ES224GC-V2
24-Port Gigabit Managed Non-PoE SwitchGigabit access PoE switch fits needs in SMB network

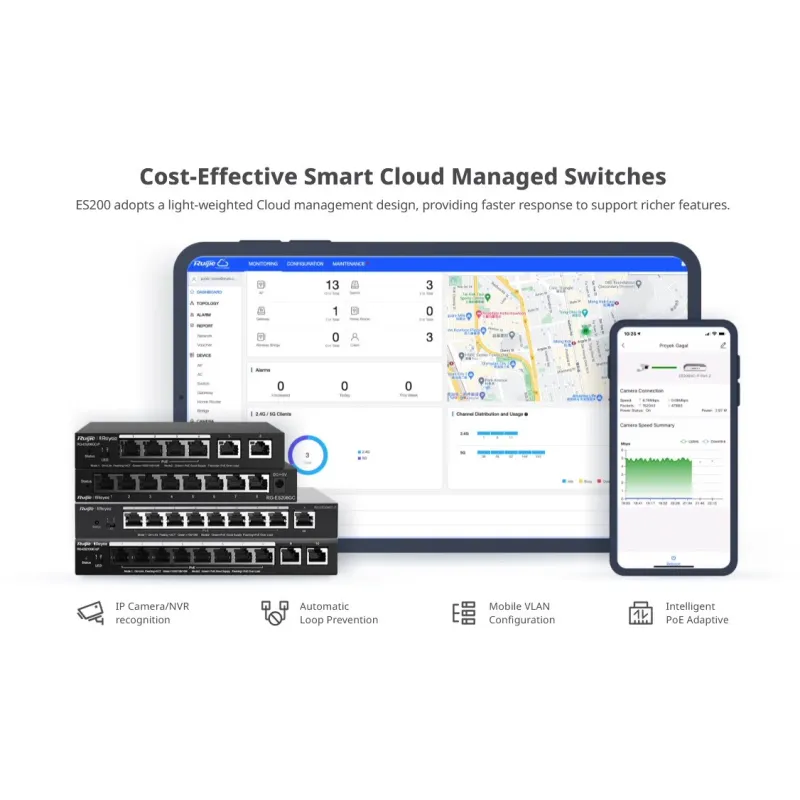

Cost-Effective Smart Cloud Managed Switches
ES200 adopts a light-weighted Cloud management design, providing faster response to support richer features.
Unique Value for CCTV Network
Automatic Loop Prevention Ensures Service Continuity
Network stays connected when network loop happens.
Cloud, Make Your Business Easy
- SON, zero touch provisioning to Cloud
- Configure VLANs on Ruijie Cloud APP
- Monitor switch statistics at anytime anywhere
- Easy maintainance, save onsite time and cost
รายละเอียดสินค้า
19 รายการ
ข้อมูลสินค้า
- Switches Layer
- L2 Managed
- จำนวน Port Lan
- 24 Port
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
