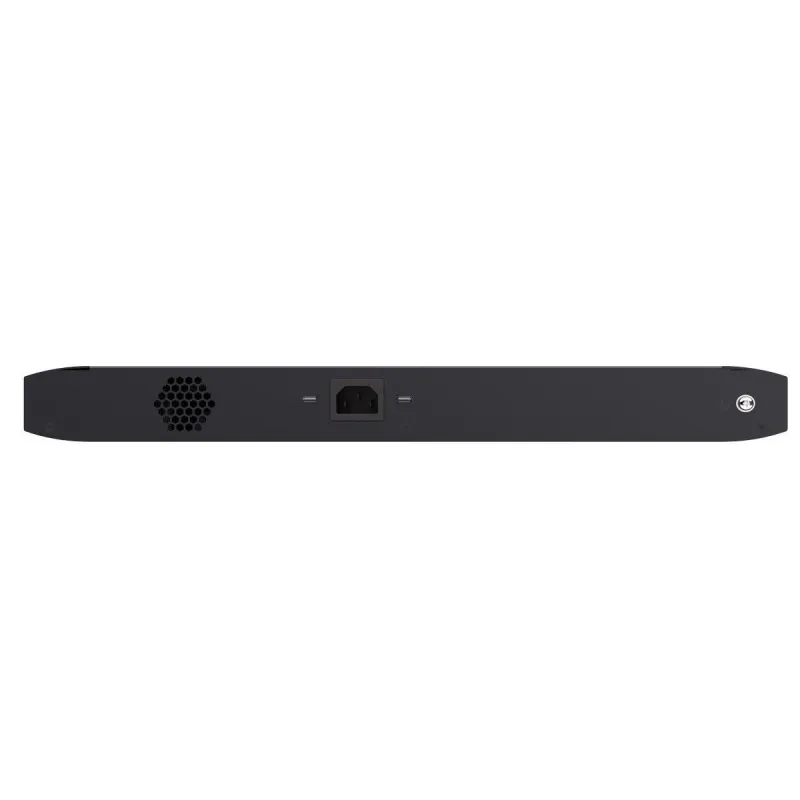

RG-ES226GC-P
Review Ruijie RG-ES200 Series Cloud Managed POE Switch สำหรับงาน CCTV, WIFI
Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี
Reyee Series Implementation Cookbook V1.0
RG-ES200 Series Web-Based Configuration Guide
Ruijie RG-ES200 Series Switches Hardware Installation and Reference Guide
RG-ES205GC Quick Installation Guide
RG-ES200 Series Datasheet
L2 Managed Gigabit POE Switch 24 Port ความเร็ว Gigabit, และ Port SFP สำหรับใส่ SFP Module เพื่อเชื่อมต่อผ่าน Fiber Optic 2 Port, สามารถจ่ายไฟ POE มาตรฐาน 802.3af/at (15.4W/30W) ได้ 24 Port รวมกำลังไฟสูงสุด 370W เฉลี่ยต่อ Port 15.4W
*** กรณีกล้องพวก Speed Dome หรือ Access Point ประเภท 3x3, 4x4 ที่ใช้กำลังไฟสูงๆ (เกิน 15.4W) ต้องคำนวนให้ดีครับ หรือ ส่ง Spec อุปกรณ์ให้ทางร้านคำนวนให้ได้เลย
หรือถ้าใช้กับ Access Point ที่เป็น WIFI 6 ถ้าติดตั้งหลายๆตัว ค่า Forwarding Rate อาจจะไม่พอ แนะนำเป็น Reyee Series NBS3100 ขึ้นไปจะดีกว่าครับ
รุ่นนี้ Port Uplink จะเป็น SFP Port ครับ ถ้า Port LAN RJ45 ถูกใช้ทั้ง 24 Port จะต้องใช้ร่วมกับ SFP Module Gigabit
Product Specification |
|
Ports |
24 10/100/1000 Base-T ports (PoE/PoE+) |
Maximum output power per PoE port |
30W |
Maximum PoE output power per switch |
370W |
Switching capacity |
52Gbps |
Packet forwarding rate |
38.688Mpps |
Surge protection |
Common mode: 4KV |
Electrostatic discharge |
Air discharge: 6KV |
Power consumption |
≤400W |
Power supply |
Built-in power supply |
Dimensions (W x D x H) |
440x289x43.6mm |
MTBF |
>200K |
Operating temperature |
0 to 40°C |
Storage temperature |
-40~70ºC |
Operating humidity |
10% to 90% RH |
Storage humidity |
5% to 95% RH |
MAC capacity |
8K |
Static MAC address |
16 |
VLAN |
Support 802.1Q VLAN |
Port management |
Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off |
Security |
Support broadcast storm suppression, port speed limit, port isolation |
L2 features |
Support port mirroring, loop protection, cable detection |
Management |
Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
ประกัน |
ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 3 ปี |
