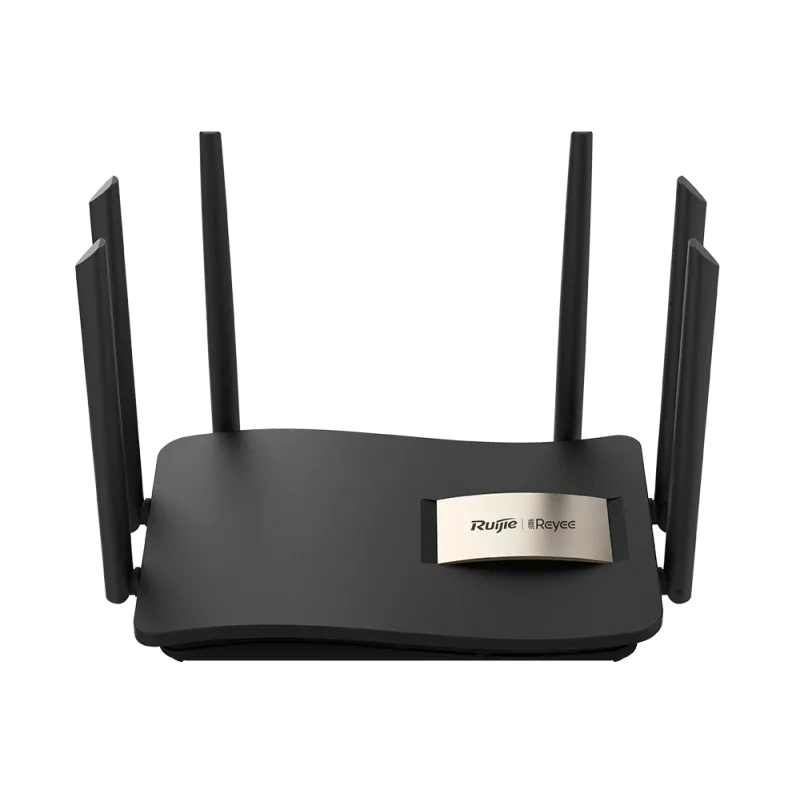

Reyee RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Mesh Router

Ruijie Networks

Reyee RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Mesh Router 802.11ac Wave2 MU-MIMO ทำ WIFI Mesh ขยายสัญญาณให้ครอบคลุมง่ายๆ แค่กดปุ่มครั้งเดียวหลังเครื่อง รองรับ Mode Access Point/ Mesh และ  Repeater

฿1,890.00
฿1,550.00 ประหยัด ฿340.00
ยังไม่ได้รวมภาษี
จำนวน


ร้าน Sysnet เป็นตัวแทนจำหน่าย Ruijie/Reyee อย่างเป็นทางการ สอบถามราคาลดพิเศษทาง Line @sysnet  ได้เลยครับ


Line: @sysnet
Click โทรสอบถามข้อมูลเพิ่มเติม


รายละเอียด

ขยายสัญญาณ WIFI ให้ครอบคลุมในบ้านง่ายๆด้วย Reyee WIFI-MESH
คู่มือการ Config Mode MESH อุปกรณ์ Reyee Home Router

Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี

Reyee Series Implementation Cookbook (V1.2)
Ruijie RG-EW1200G PRO Router Brochure_V2.0

Ruijie RG-EW1200G Pro Router Web-Based Configuration Guide

Product Specification

Overview

Reyee RG-EW1200G PRO 1300M Dual-band Gigabit Wireless Mesh Router มาตรฐาน 802.11ac Wave2 MU-MIMO เสา 6dBi x 6 ต้น ระยะส่งไกล

4 Port Lan, 1 Port Wan ความเร็ว Gigabit

Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

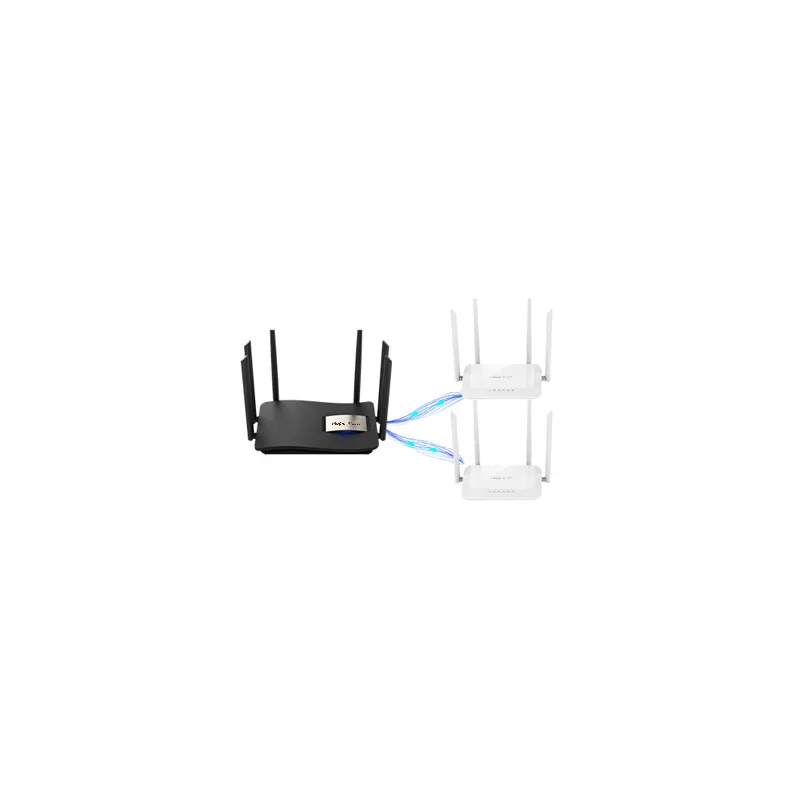

รองรับการทำ WIFI Mesh ง่ายๆ แค่กดปุ่มหลังเครื่อง 1 ครั้ง

รองรับ Mode Access Point/ Repeater/ Router

Main features

Routing mode: PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay
Obtain PPPoE account from the old router
Wi-Fi dual-band separation/ integration
Guest Wi-Fi; smart home Wi-Fi; wireless network isolation
Static DHCP address
Virtual server: port mapping, DMZ, etc.
DDNS: Oray (dyndns, NoIP: Future)
UPnP

Network security

Wireless security: WPA-PSK/WPA2-PSK encryption
ARP protection: IP/MAC binding
SSID hiding
Preventing rogue devices (Blacklist/whitelist)
Internet access control

Advanced features

Reyee Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices
Wi-Fi optimization: Wi-Fi roaming, 5G priority, acceleration mode, channel adjustment, power adjustment, roaming sensitivity adjustment
Bandwidth management: hardware NAT, intelligent bandwidth allocation
Auto network inspection, fault diagnosis
Software upgrade: Automatic & manual cloud software upgrade

Management mode

Local web page
Cloud management: MACC cloud platform
Ruijie Cloud app: iOS version, Android version

Wireless specifications

2.4GHz 2*2: maximum rate 400Mbps; 5GHz 2*2: maximum rate 867Mbps
Antenna: External 6dBi non-removable omnidirectional antennas
Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO
Frequency band: Independent 2.4GHz and 5GHz modules, supporting dual frequency integration
Support beamforming
Wi-Fi channel:
2.4GHz Channel : 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel : 36,40,44,48,149,153,157,161,165

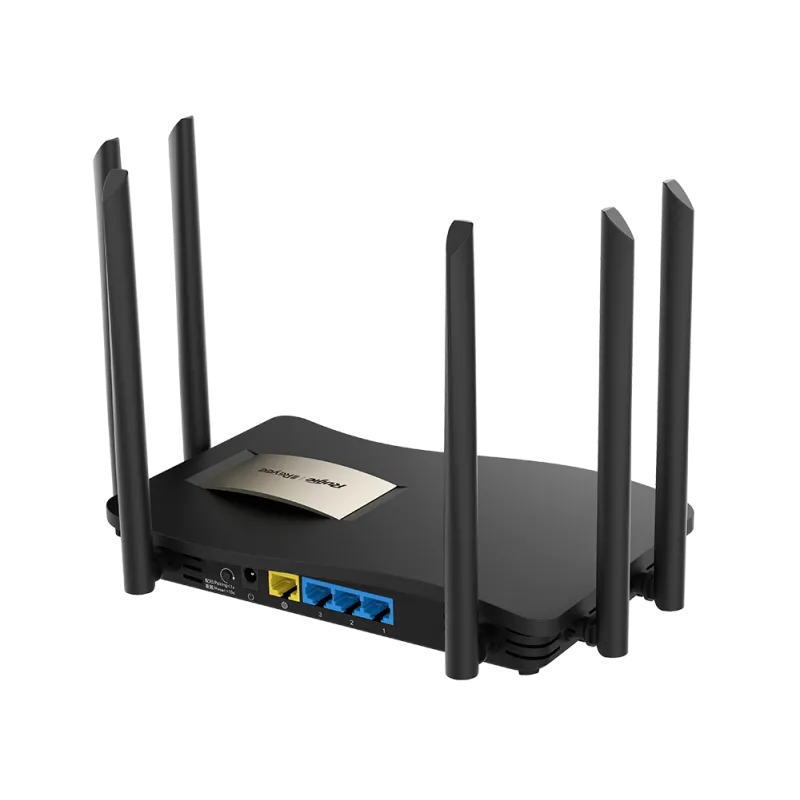

Ports

1 Port 10/100/1000M WAN port (Auto MDI/MDIX)
3 Port 10/100/1000M LAN ports (Auto MDI/MDIX)
1 blue system LED indicator, 4 network port LED indicators
1 device pairing/factory reset button
1 power input interface

Physical specifications

Dimensions : 220x140x36mm (W×D×H, excluding antennas)
Weight : 0.98kg (entire equipment including packaging)

Power supply

Power specification: DC12V 1.5A
Maximum power: <14W

Certification

CCC, SRRC

Operating environment

Operating temperature: 0-45C
Storage temperature: -40-70C
Operating humidity : 5%-95%RH (non-condensing)
Storage humidity : 5%-95%RH (non-condensing)

ประกัน

3 ปี, Adapter 1 ปี

รายละเอียดสินค้า
48 รายการ

Data sheet

ลักษณะงาน Wireless
กระจายสัญญาณ WIFI
ความเร็ว Wireless
WIFI-5 (802.11ac: 650Mbps+)
ย่านความถี่
Dual-Band 2.4/5GHz
รองรับ Controller
Cloud Controller
Mode Repeate/WDS/MESH
MESH, Repeater

ทดสอบ Performance 100 Concurents Video Streaming และ ประสิทธิภาพในการทำ Roaming

Ruijie Ultra-high density Wi-Fi project with 1000 unit Smart Phone

Ruijie Wi Fi 6 Killer AP820 LV2 Unbox & Speedtest 762/912 Mbps

Ruijie Cloud: Perfect Network Solution For SME

Ruijie Cloud Site Survey Planner (SSP) Overview

Ruijie AP Quick Provisioning

Ruijie Cloud Deployment Quick Start

ตารางเปรียบเทียบ ระหว่างอุปกรณ์ Ruijie VS Reyee

Feature

Ruijie Enterprise

Reyee

Ruijie Cloud

Support

Support

Mobile App
(รองรับ iOS และ Android)

Support

Support

Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud

Presales Tools
(ระบบการขาย เช่น BOM, การคำนวนกำลังไฟ POE, Report)

Support

Support

Fast Provisioning
(การเพิ่มอุปกรณ์ขึ้น Cloud))

Scan QR-code Device
Cloud Config Sync

Self-organizing network (SON)
Scan QR-code Device

Monitoring & Alarm

Support

Support

Device Management

Additional:
RRM
Web CLI
Telnet/SSH
Configuration Mgmt (Backup/Restore)

Basic
Web Config
Cloud Config

Gateway Management

WAN Load Balance
Block Web
Block Bittorrent
App/Web Control L7 Filter
L7 DPI Analysis
App Cache
Sub-Interface VLAN (802.1Q)
VPN L2TP, PPTP, IPSecs
Bandwidth Management
ACL
EWeb Tunnel (Remote Config ผ่าน Cloud)

WAN Load Balance
Block Web
Block Bittorrent
Sub-Interface VLAN (802.1Q)
VPN L2TP, PPTP, IPSecs
Bandwidth Management
ACL
NO-IP, DDNS
EWeb Tunnel (Remote Config ผ่าน Cloud)

Gateway Authen

Local Authen (Captive Portal)
Sync with Cloud Auth (Captive Portal)
Web Audit (เก็บ Log การเข้า Website)

Local Authen (Captive Portal)
Sync with Cloud Auth (Captive Portal)
QR-Code Auth

Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway
Review Reyee Gateway RG-EG210G-E แบบ Full Test

Multi-tenant
รองรับการจัดการ Project จากหลาย Account

Support

Support

Scenario-based
Config Wizard

N/A

Support (App)

Wireless

Standard

WIFI 4 (n)
WIFI 5 (ac)
WIFI 5 Wave2 (ac)
WIFI 6 (ax)

WIFI 5 Wave2 (ac)
WIFI 6 (ax)

Capacity

Max Client 1024 (Wi-Fi 6)

Max Client 128

WLAN Auth

802.1x Auth
PPSK

Customized Captive Portal
Voucher, Account, Facebook, SMS OTP

PSK/WPA2
Basic Captive-Portal (ต้องใช้ร่วมกับ Ruijie/Reyee Gateway)

Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet

WLAN Features

L2/L3 Roaming
Adv CLI script configuration
WIDS(Rogue AP detection)
Wireless Radio Analytics (RRM)
Location tracking (LBS)
Bluetooth (BLE) support
Speed Limit Per Client
Speed Limit Per SSID

L2 Roaming
Wireless Load Balance
Basic Feature

WLAN Controller
(Appliances)

Yes
RG-WS6000 Series (upto 6400 AP)

Yes
RG-NBC Series (up to 500 AP)

Switches

Capacity

Chassis model option (upto 48 10GE)

Box Switches model (upto 24GE +10G uplink

L2

IGMP Snooping
MSTP
LACP VLAN
Link Aggregate (LACP)
SuperVlan
VoiceVlan
ACL
DHCP Snooping
Port Isolate

VLAN
Link Aggregate (Static)
ACL
DHCP Snnoping
Port Isolate

L3

IPv6, RIP, OSPF, PBR, VRRP

N/A<

Security / Availability

802.1x, CPP/NFPP, REUP, VSU

N/A

Management

Managed with Web & CLI (Console port), SSH, SNMP

Web Smart Managed & Unmanaged

Review Ruijie RG-ES200 Series Cloud Managed POE Switch

ตารางเปรียบเทียบข้อมูล Reyee RG-RAP Series Access Point



Model

RG-RAP1200(F)

RG-RAP1200(P)

RG-RAP2200(F)

RG-RAP2200(E)

RG-RAP2260(G)

RG-RAP2260(E)

สัญญาณครอบคลุม

20 เมตร

20 เมตร

30 เมตร

30 เมตร

30 เมตร

30 เมตร

จำนวน Clients ที่แนะนำ

40
8(2.4G) + 32(5G)

80
16(2.4G) + 64(5G)

48
16(2.4G) + 32(5G)

80
16(2.4G) + 64(5G)

100
16(2.4G) + 84(5G)

100
16(2.4G) + 84(5G)

มาตรฐาน WIFI

802.11b/g/n/ac

802.11b/g/n/ac

802.11ac wave2
802.11a/b/g/n

802.11ac wave2, wave1
802.11a/b/g/n

802.11ax
802.11ac wave2
802.11a/b/g/n

802.11ax
802.11ac wave2 802.11a/b/g/n

ความเร็วสูงสุด (2.4GHz)

400Mbps

400Mbps

400Mbps

400Mbps

574Mbps

800Mbps

ความเร็วสูงสุด
(5GHz)

867Mbps

867Mbps

867Mbps

867Mbps

1201Mbps

2402Mbps

กำลังส่งสูงสุด
(2.4G)

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

กำลังส่งสูงสุด
(5G)

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

จำนวน SSID

8

8

8

8

8

8

Spatial Streams

2.4G: 2x2 MIMO
5G: 2x2 MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 4x4 MIMO
5G 4x4 MIMO

Antenna

PCB antenna

PF antenna
2.4G: 2dBi
5G: 2dBi

Array antennas 2.4G: 2dBi
5G: 2dBi

Array antennas
2.4G: 2dBi
5G: 2dBi

Internal antennas 2.4G: 3dBi
5G: 3dBi

Internal antennas 2.4G: 3dBi
5G: 3dBi

Service Ports

Front:
1 Port 10/100Mbps Ethernet port

Rear:
1 Port 10/100Mbps, Support PoE

Front:
4  Port 10/100/1000 Mbps
LAN1 port supports 802.3af PoE

Rear:
1 Port  10/100/1000Mbps

2 Port 10/100 Mbps PoE/LAN1 port supports PoE

2 Port 10/100/1000 Mbps
PoE/LAN1 port supports PoE

2 Port 10/100/1000 Mbps
PoE/LAN1 port supports PoE

1 Port 10/100/1000M/2.5G supports PoE;

1 Port 10/100/1000Mbps

SON Number

150

150

150

300

300

300

Power Supply

PoE 803.1af

PoE 803.1af

PoE 803.1af
DC 12V 1.5A

PoE 803.1af
DC 12V 1.5A

PoE 803.1at
DC 12V 1.5A

PoE 803.1at
DC 12V 1.5A

Port Aggregation

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

VLAN

Support

Support

Support

Support

Support

Support

Port Base VLAN

Support

Support

Not  Support

Not  Support

Not  Support

Not  Support

DHCP Snooping

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

ARP Check

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

IP Source Guard

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

LLDP

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Static ARP Bind

Support

Support

Support

Support

Support

Support

ARP Proxy

Support

Support

Support

Support

Support

Support

Ping

Support

Support

Support

Support

Support

Support

Traceroute

Support

Support

Support

Support

Support

Support

NAT

Support

Support

Support

Support

Support

Support

Static Route

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

DHCP Server

Support

Support

Support

Support

Support

Support

Telnet

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

SSH

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

รองรับการจัดการผ่าน Ruijie Cloud

Support

Support

Support

Support

Support

Support

รองรับการจัดการผ่าน Ruijie Cloud APP

Support

Support

Support

Support

Support

Support

802.1x

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

PPPoE

Support

Support

Support

Support

Support

Support

Same SSID with differnet VLAN

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Same VLAN with differnet SSID

Support

Support

Support

Support

Support

Support

L2 Roaming

Support

Support

Support

Support

Support

Support

L3 Roaming

Support

Support

Support

Support

Support

Support

Global whitelist/blacklist

Support

Support

Support

Support

Support

Support

SSID-based whitelist/blacklist

Support

Support

Support

Support

Support

Support

Wireless bridge

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

PoE Out

Not  Support

Support

Not  Support

Not  Support

Not  Support

Not  Support

You might also like

ยี่ห้อ: Ruijie Networks

Reyee RG-EW1200 1200M Dual-band Wireless Mesh Router

Reyee RG-EW1200 1200M Dual-band Wireless Mesh Router 802.11ac Wave2 MU-MIMO เสา 5dBi x 4 รองรับการทำ WIFI Mesh แค่กดปุ่มเดียว, รองรับ Mode AP และ Universal Repeater

ราคา ฿1,352.00
More
มีสินค้า



Follow us on Facebook
