RG-EW1200R Reyee 1200M Dual-band Mesh Wi-Fi Extender

Product Specification

Overview

Reyee RG-EW1200R 1200M Dual-band Wi-Fi Extender WIFI ac 2.4/5Ghz เสาอากาศกำลังขยาย 4dBi

เหมาะสำหรับทำ Repeater Mode กระจายสัญญาณในตำแหน่งอับสัญญาณ พร้อม Port Lan เชื่อมต่ออุปกรณ์ Network ได้หลังจากทำ Mode Extender, ราคาประหยัด

Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

Wi-Fi Standards

Wi-Fi 5 (802.11ac)

MIMO

2.4 GHz, 2×2, MU-MIMO
5 GHz, 2×2, MU-MIMO

Max. Wi-Fi Speed

2.4 GHz: 300 Mbps
5 GHz: 867 Mbps

Channel Width

2.4 GHz: Auto/20/40 MHz
5 GHz: Auto/20/40/80 MHz

Antennas

Antennas Type

External Omnidirectional

Antenna Gain

2.4 GHz: 4 dBi
5 GHz: 4 dBi

Port

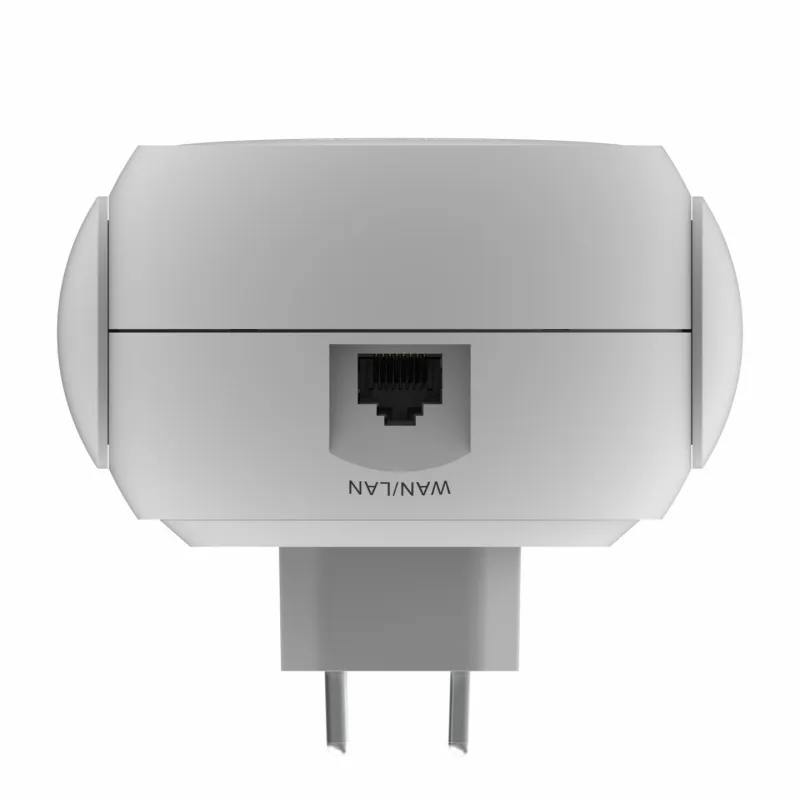

1×10/100 Base-T WAN/LAN

Recommended Users

Max. Users

Power Supply

100-240V~50/60Hz 0.5A

Power Consumption

≤15W

Operation Frequency Bands

802.11b/g/n/: 2.400 GHz to 2.483 GHz
802.11a/n/ac: 5.150 GHz to 5.350 GHz
802.11a/n/ac: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz
country-specific restrictions apply

Transmit Power

Regular:
CE EIRP: ≤20dBm (2.4GHz)
≤27dBm (5GHz)
≤20dBm 2400~2483.5MHz(Bluetooth)

Operating Temperature

-10 °C to +45 °C (14 °F to 113 °F)

Operating Humidity

5% to 95% Noncondensing

Certifications

CE,RoHS

Wireless

MU-MIMO
SSID Hiding
Band Steering
Guest Wi-Fi
WPA/WPA2
Roaming
Blacklist
Reyee Mesh
Wi-Fi Optimization
QoS (WMM)
WPS

Maximum Number of SSIDs

Mesh Pairing

by Hardware

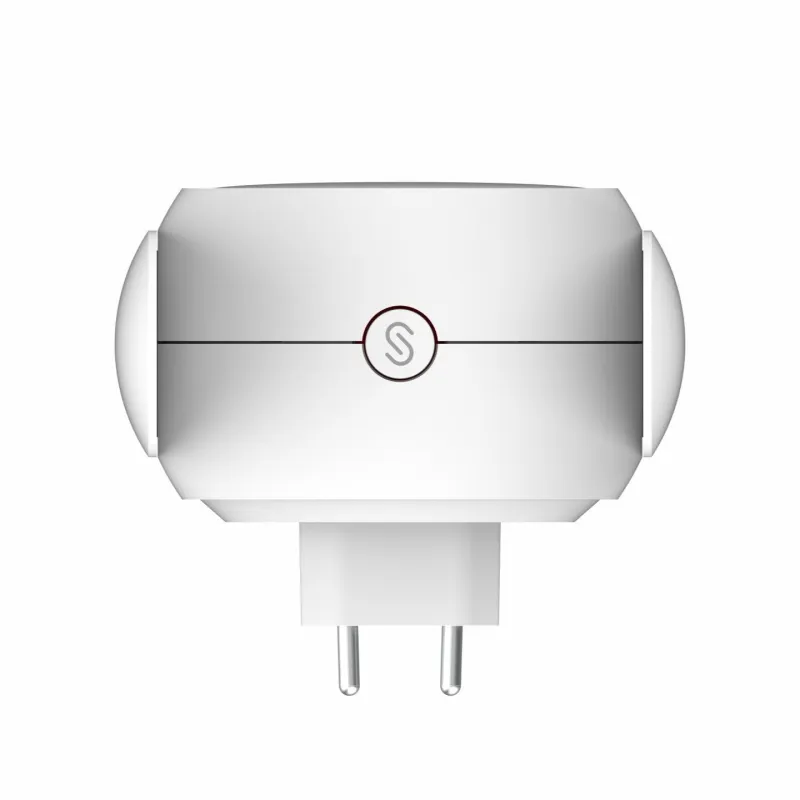

by Mesh Button
by Eweb

Dimensions ( W×D×H )

128 mm x 102 mm x 60 mm
(5.04 in. × 4.02 in. × 2.36 in. antennas not included)

Weight

0.25 kg (packages not included)

WAN

Static IP
DHCP
PPPoE
Learning PPPoE Account & Password
VLAN Tagging

LAN

DHCP Server
Client List
Static IP Assignment
Port-Based Flow Control

Default Access/Password

10.44.77.254
No Password Required by Default

Features

MAC Address Cloning
Cloud Management
Repeater Mode
WISP Mode

ประกัน

3 ปี
