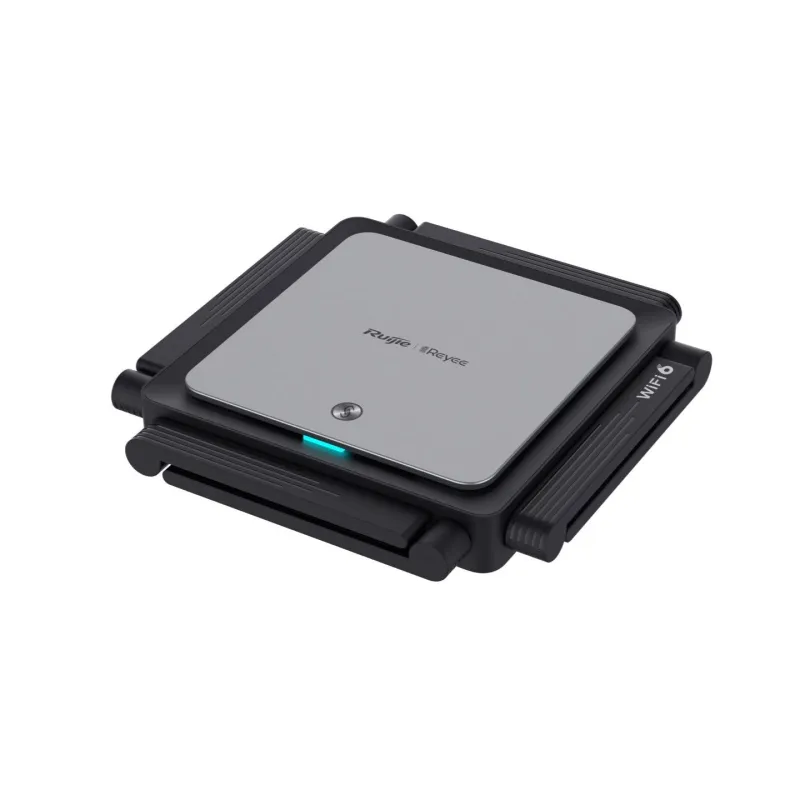

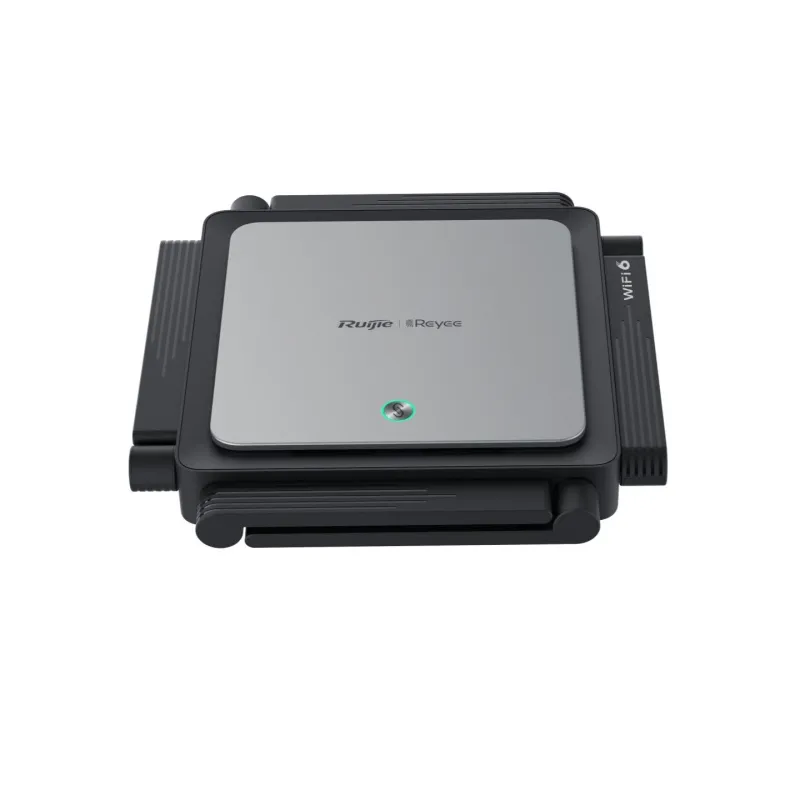

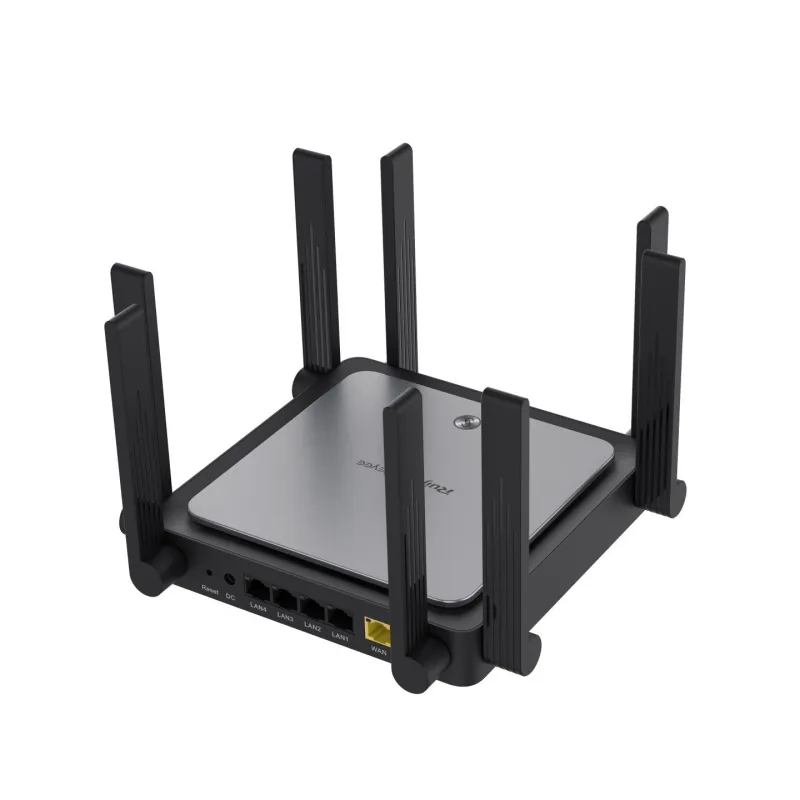

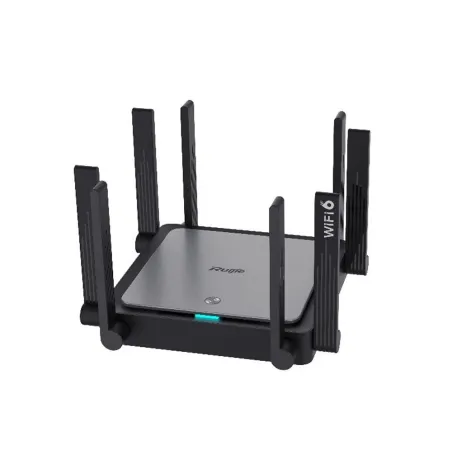

RG-EW3200GX PRO Reyee 3000M WIFI6 Gigabit Wireless Mesh Router

Product Specification

Overview

Reyee RG-EW3200GX PRO 3000M Dual-band Gigabit Wireless Mesh Router มาตรฐาน WIFI6 802.11ax MU-MIMO เสา 8 ต้น

รองรับการทำ WIFI Mesh ง่ายเพียงกดปุ่มที่อุปกรณ์

Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

Model

RG-EW3200GX PRO

Wireless Parameters

2.4 GHz, 2×2, maximum rate of 800Mbps
5 GHz, 2×2, maximum rate of 2402Mbps

8 external non-detachable omnidirectional antennes

802.11a/b/g/n/ac/ax and DL/UL MU-MIMO

Independent 2.4 GHz and 5 GHz modules and dual-band mode

Wi-Fi channel:
2.4GHz :2.4G~2.4835GHz
5GHz ：5.150~5.250GHz，5.250~5.350H，5.470~5.725GH，5.725~5.850GHz

Beamforming, OFDMA, and BSS color technologies

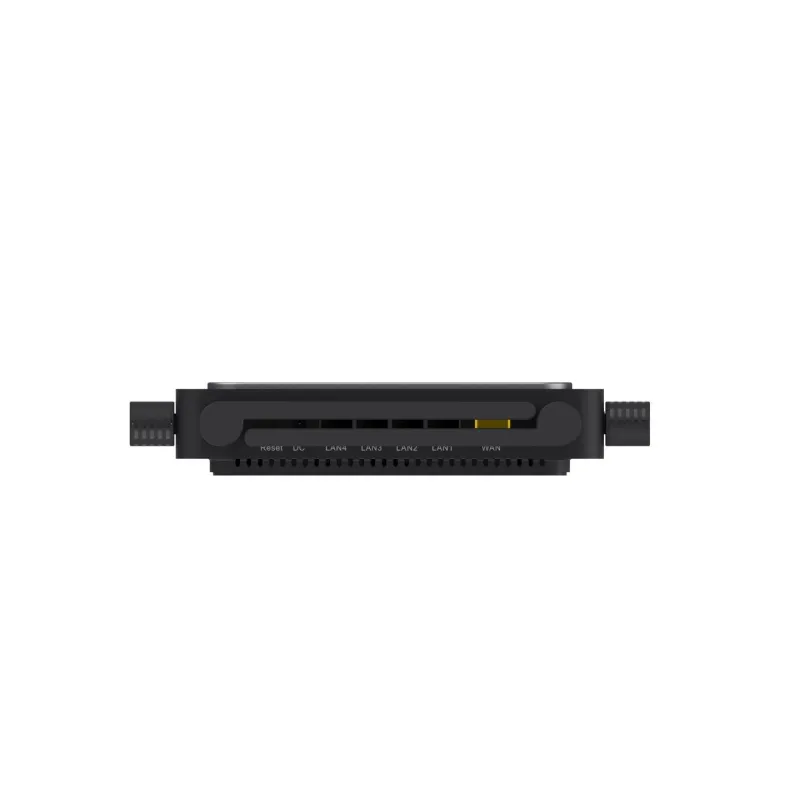

Ports

One 10/100/1000M WAN port (Auto MDI/MDIX)

Four 10/100/1000M LAN ports (Auto MDI/MDIX)

One Reyee Mesh LED indicator and one system LED indicator

One Reyee Mesh button (front) and one system reset button (rear)

One power port

Physical

Dimensions (W × D × H): 190 mm × 190 mm × 41 mm (excluding antennas)

Weight: 1.125 kg (including packages)

Power Supply

Power specifications: DC 12 V, 1.5 A

Maximum power: < 18 W

Certification

CE

Operating Environment

Operating temperature: –10℃ to +45℃
Storage temperature: –40℃ to +70℃
Operating humidity: 5% to 95% (non-condensing)
Storage humidity: 5% to 95% (non-condensing)

Main features

PPPoE, DHCP, static IP address for network connection
Acquisition of PPPoE accounts from old routers
Dual-band mode
Priority to 5G
Wireless Transmission Power adjustment
Automatic channel adjustment
Guest Wi-Fi
Rate limiting for terminal IP addresses
Static DHCP address
Virtual server
DDNS
DMZ
UPnP

Network security

WPA-PSK/WPA2-PSK encryption
SSID hiding
Wi-Fi squatter prevention (Blacklist)
Network access control
IP & MAC Binding
Firewall

Advanced features

Reyee Mesh: Supported by EW Series Routers. Enables Mix & Match, Self-Healing, etc
Wireless roaming;
Hardware NAT;
One-click network optimization;
Issue  diagnosis;
Remote maintenance on the cloud;
Auto and manual software upgrade on the cloud;
Silent upgrade of cloud software;

Management modes

Local web pages
Ruijie Cloud App: iOS edition and Android edition

ประกัน

3 ปี, Adapter 1 ปี
