Ruijie RG-M18 Datasheet
Highlight Features

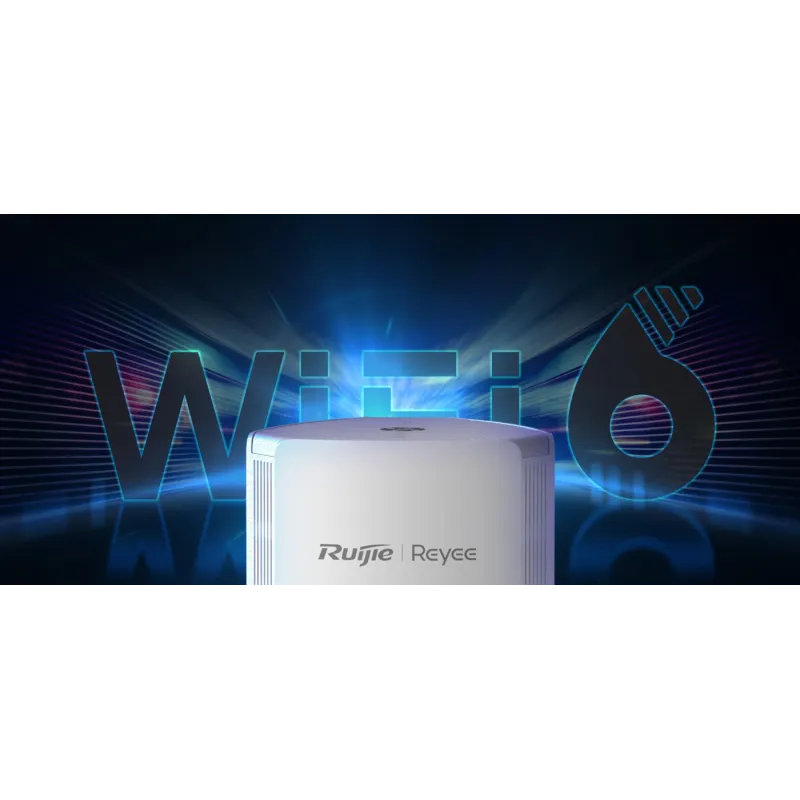

- An unprecedented wireless experience with Wi-Fi 6
- Born for multi-user, support up to 192 terminals

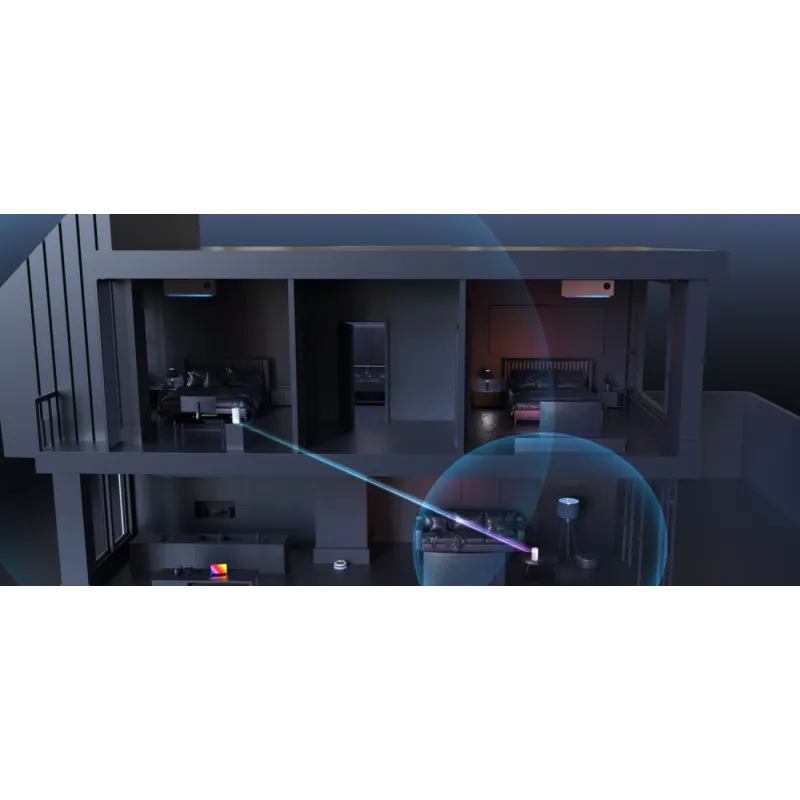

- Exclusive Reyee Mesh provides full space coverage Wi-Fi solution

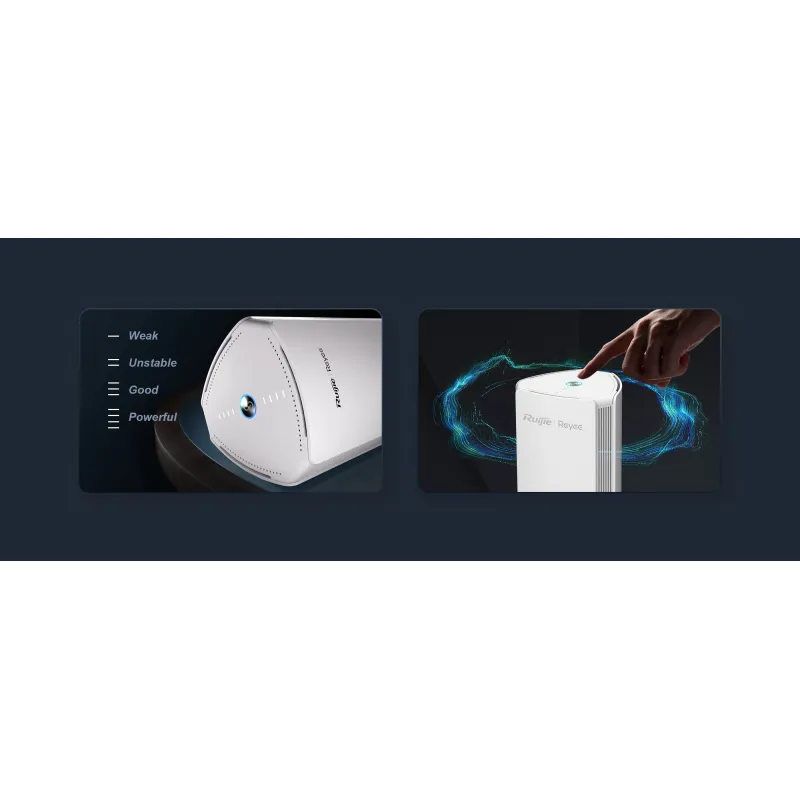

- Smart signal indicator, find the best spot to place a sub-router

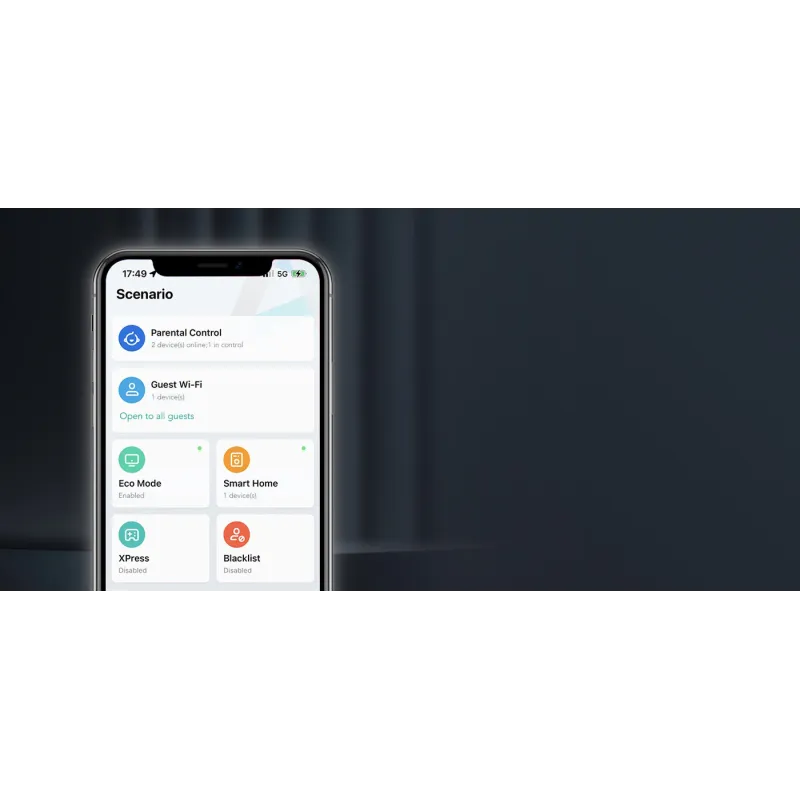

- Take control of your home network at your fingertipsStrong signal received, feels like“wall-less”
Product Specification |

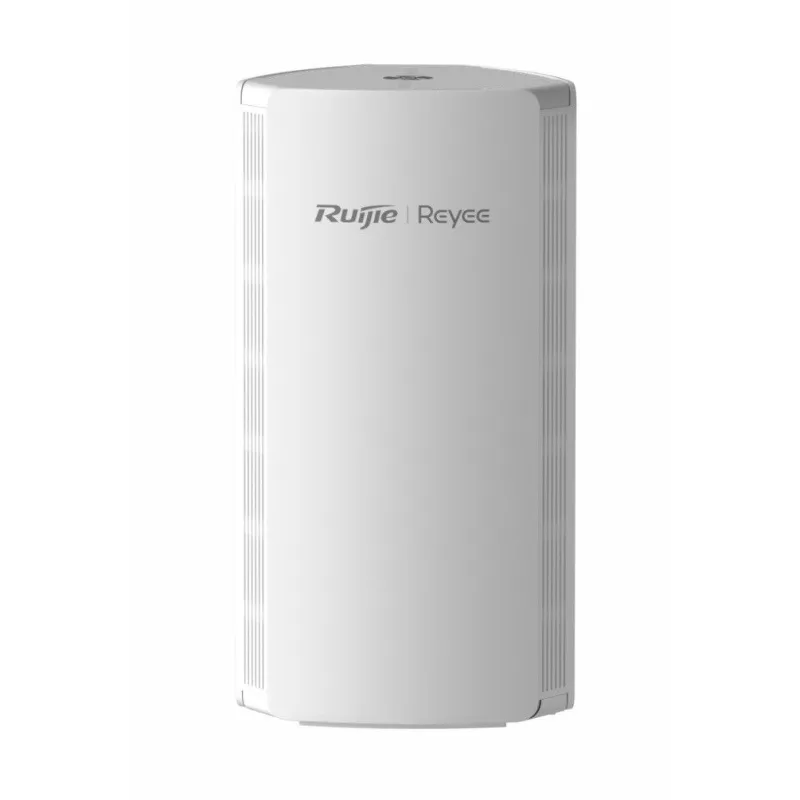

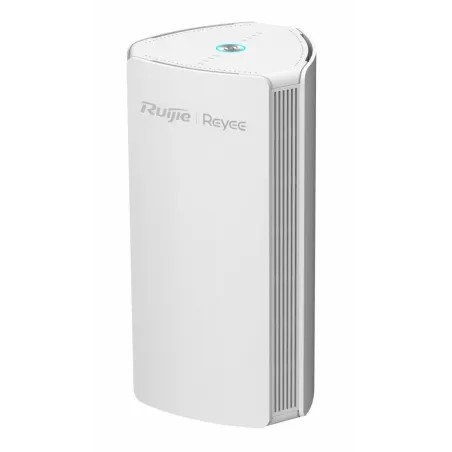

Overview | Reyee RG-M18 1800M Dual-band Gigabit Wireless Mesh Router มาตรฐาน WIFI6 802.11ax 2x2 MU-MIMO เสา 4 ต้น อัตราขยายสัญญาณสูง ทำให้รับ-ส่งสัญญาณได้ไกลครอบคลุมทุกพื้นที่ รองรับการทำ WIFI Mesh ง่ายเพียงกดปุ่มที่อุปกรณ์ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ |
Dimensions (W×D×H) | 119 mm × 128 mm × 201 mm
(4.7 in. × 5 in. × 7.9 in. antennas not included) |
Weight | 1.3 kg (packages not included) |
Wi-Fi Standards | Wi-Fi 6 (802.11ax) |
MIMO | 2.4 GHz, 2x2, MU-MIMO
5 GHz, 2x2, MU-MIMO |
Max. Wi-Fi Speed | 2.4 GHz: 574 Mbps
5 GHz: 1201 Mbps |
Channel Width | 2.4 GHz: Auto/20/40 MHz
5 GHz: Auto/40/80 MHz |
Antennas | 4 dual-band |
Antennas Type | Internal Omnidirectional |
Antenna Gain | 2.4 GHz: 4 dBi
5 GHz: 6.8 dBi |
WAN Port | 1×10/100/1000 Base-T |
LAN Ports | 2×10/100/1000 Base-T |
Recommended Users | 48 |
Max. Users | 192 |
Power Supply | DC 12V/1.5A |
Power Consumption | < 24 W |
Operation Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz
802.11a/n/ac: 5.150 GHz to 5.350 GHz
802.11a/n/ac/ax: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz
country-specific restrictions apply |
Transmit Power | CE EIRP: ≤20dBm (2.4GHz)
≤27dBm (5GHz)
≤20dBm 2400~2483.5MHz(Bluetooth)
2400~2483.5MHz ≤ 20dBm(EIRP)
5150~5350MHz ≤ 23dBm(EIRP)
5470~5725MHz ≤ 30dBm(EIRP)
5725~5850MHz ≤ 30dBm(EIRP) |
Receive Sensitivity | 2.4 GHz:
802.11b: -96 dBm(1 Mbps)
802.11g: -91 dBm(6 Mbps), -85 dBm(54 Mbps)
802.11n: -90dBm(MCS0), -85 dBm(MCS7)
5 GHz:
802.11n: -90 dBm(MCS0), -70 dBm(MCS7)
802.11a: -88 dBm(6 Mbps), -60 dBm(54 Mbps)
802.11ac: -82dBm(MCS0), -57dBm(MCS7), -52dBm(MCS9) |
Operating Temperature | -10 °C to +45 °C (14 °F to 113 °F) |
Operating Humidity | 5% to 95% Noncondensing |
Certifications | CE, SIRIM, RCM RoHS |
Wireless |
OFDMA | Support |
MU-MIMO | Support |
BSS Coloring | Support |
Maximum Number of SSIDs | 6 |
SSID Hiding | Support |
Band Steering | Support |
Guest Wi-Fi | Support |
WPA/WPA2 | Support |
WPA3 | Support |
Roaming | Layer 3 Roaming |
Blacklist | Support |
Reyee Mesh | Support |
Mesh Pairing | By Hardware
By Mesh Button
By Eweb |
Recommended Hop Count | ≤2 |
Wi-Fi Optimization | Support |
QoS (WMM) | Support |
Transmission Power Adjustment | Support |
Hardware |
CPU | MT7622B+MT7911AN+MT7915AN |
Flash | 16 MB |
RAM/SDRAM | 64 MB |
Color | Black |
System LED Indicator | Support |
Reyee Mesh LED Indicator | Support |
Reyee Mesh Button | Support |
Power Button | Support |
Reset Button | Support |
WAN |
Learning PPPoE Account & Password | Support |
VLAN Tagging | Support |
LAN |
DHCP Server | Support |
Client List | Support |
Static IP Assignment | Support |
Port-Based Flow Control | Support |
| Feature | IPv6
DDNS
IPTV
Alarm
Diagnosis
UPnP
ARP Binding
Port Mapping
DMZ Host
Rate Limitation of Terminals
Hardware Acceleration
MAC Address Cloning
Cloud Management
Repeater Mode |
| Security | PPTP VPN Server
PPTP VPN Client
L2TP VPN Client
Protect TCP Flood Attacks |
Parental Control | Time Schedule |
System |
Default Access/Password | 192.168.110.1 No Password Required by Default |
URL Access | Support |
Upgrade | Local/Online/App |
Syslog | Support |
Backup | Support |
Factory Reset | Support |
Language | Chinese
English
Vietnamese
Indonesian
Thai
Arabic
Traditional Chinese
Spanish
Russian |
ประกัน | 3 ปี |
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- ลักษณะงาน Wireless
- กระจายสัญญาณ WIFI
- ความเร็ว มาตรฐาน WIFI
- WIFI-6 (ax) 1.7Gbps+
- ย่านความถี่
- Dual-Band 2.4/5GHz
- Mode Repeate/WDS/MESH
- MESH
